Automatic sliding doors

AS3000 Series Sliding Door Automation

Product range

AS3010 leaf weight up to 120 Kg
AS3020 leaf weight up to 200 Kg
AS3030 leaf weight up to 300 Kg

Available also in Telescopic version and Redundant with TÜV Certification for escape routes.

Escape route safety

Compliance with the European Standard EN16005 for use on escape routes and the European Standard EN13849 PI.D Cat.2 (Redundance of the automation).

Low power consumption

In standby mode, energy consumption is reduced to a maximum of 0.5W, in compliance with EU Directive 2009/125/EC and EU Regulation 2023/826.

EPD verified

The Environmental Product Declaration (EPD) is an internationally recognized document that transparently, objectively and comparably details a product's environmental impact, considering its entire life cycle.

AIRSLIDE System (FAAC patent)

Which integrates an automatic sliding door with a built-in air curtain, combining sleek design with energy efficiency. It reduces energy dispersion, enhances air quality by limiting external pollutants, and ensures optimal comfort by minimizing drafts.

Max leaf weight 120 Kg / 100 + 100 Kg (AS3010)
200 Kg / 150 + 150 Kg (AS3020)
300 Kg / 200 + 200 Kg (AS3030)
Passage opening 700 - 3000 mm / 800 - 3000 mm

Technical description Download

Innovation symbols 8

Gallery / Video

Watch the Product Video: FAAC AS3000 Series

Example Installation: FAAC AS3000 Series

FAAC AS3000 Series Sliding Door Automation

Example Installation: FAAC AS3000 Series

Focus on AS3000 Series

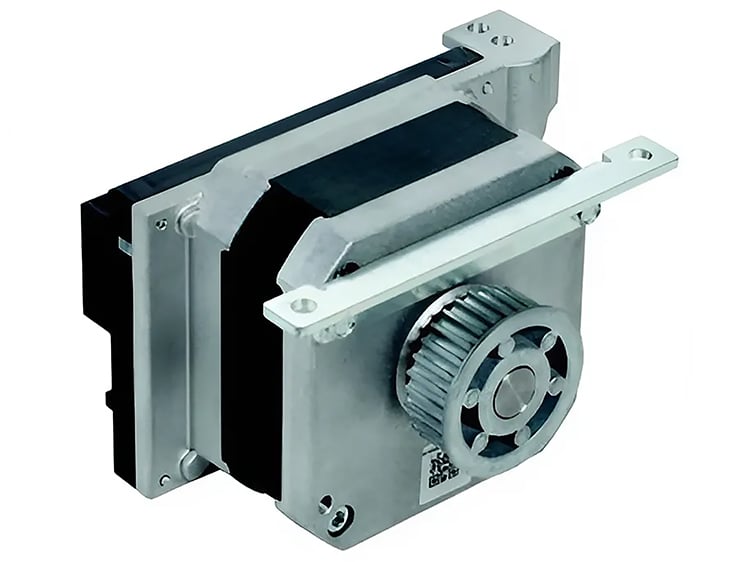

Brushless Direct Drive Motor

• Long-lasting Brushless Motor: experiences less wear and requires less maintenance.

• Direct Drive: eliminates intermediate components between the motor and the load.

• Silent: smoother and quieter thanks to the cushioned sliding guide.

• High performance: rapid acceleration, impressive speed, high power, and greater efficiency.

• Exclusive FAAC patent on Redundant Automation (RD): ensures reliable emergency opening.

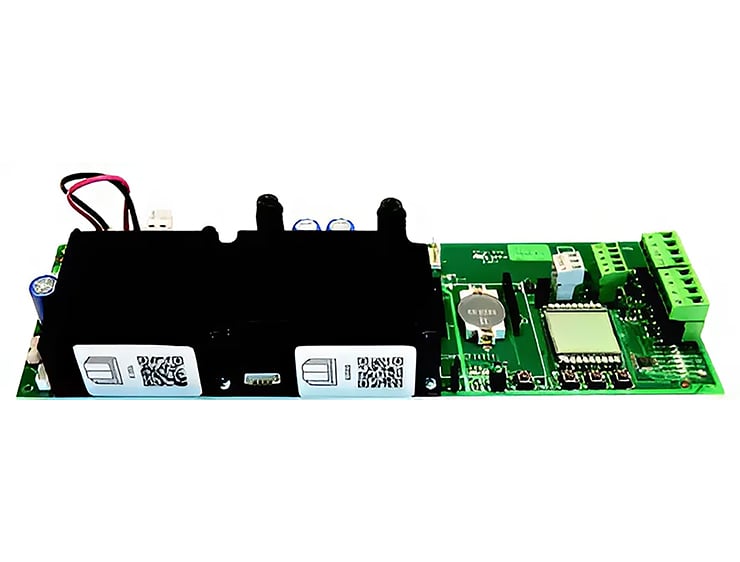

E3SL Control Board

• Simply Connect ready: allows programming and remote management of the automation.

• Intercom function: to optimize wiring and communication between automation systems (with E3XP Expansion Board).

• 2 configurable Inputs and 2 configurable Outputs: to customise the system according to project specific requirements, with CAN BUS technology, the most versatile, efficient, and reliable communication system (up to 10 Inputs and 6 Outputs with E3XP).

Technical infos
