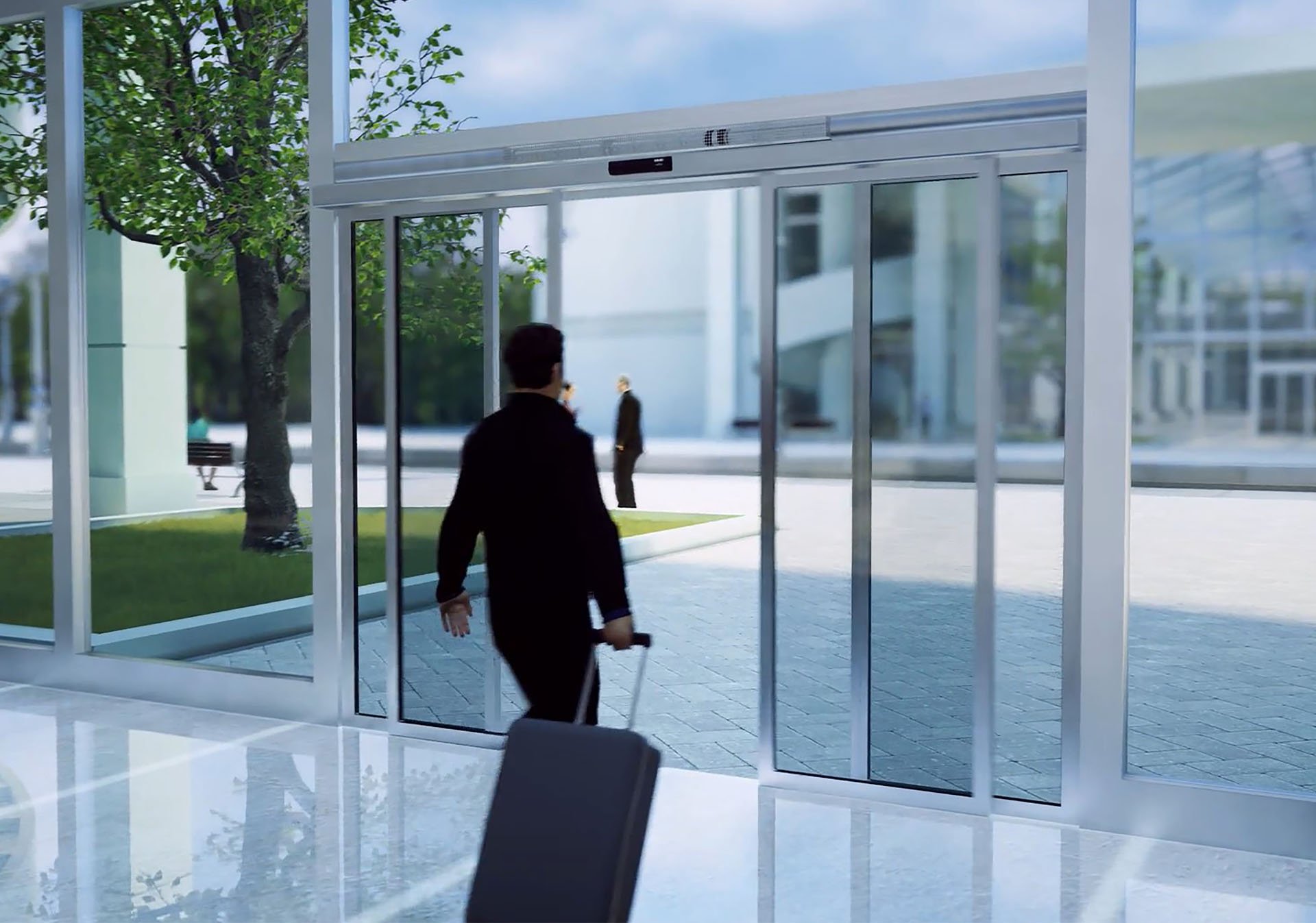

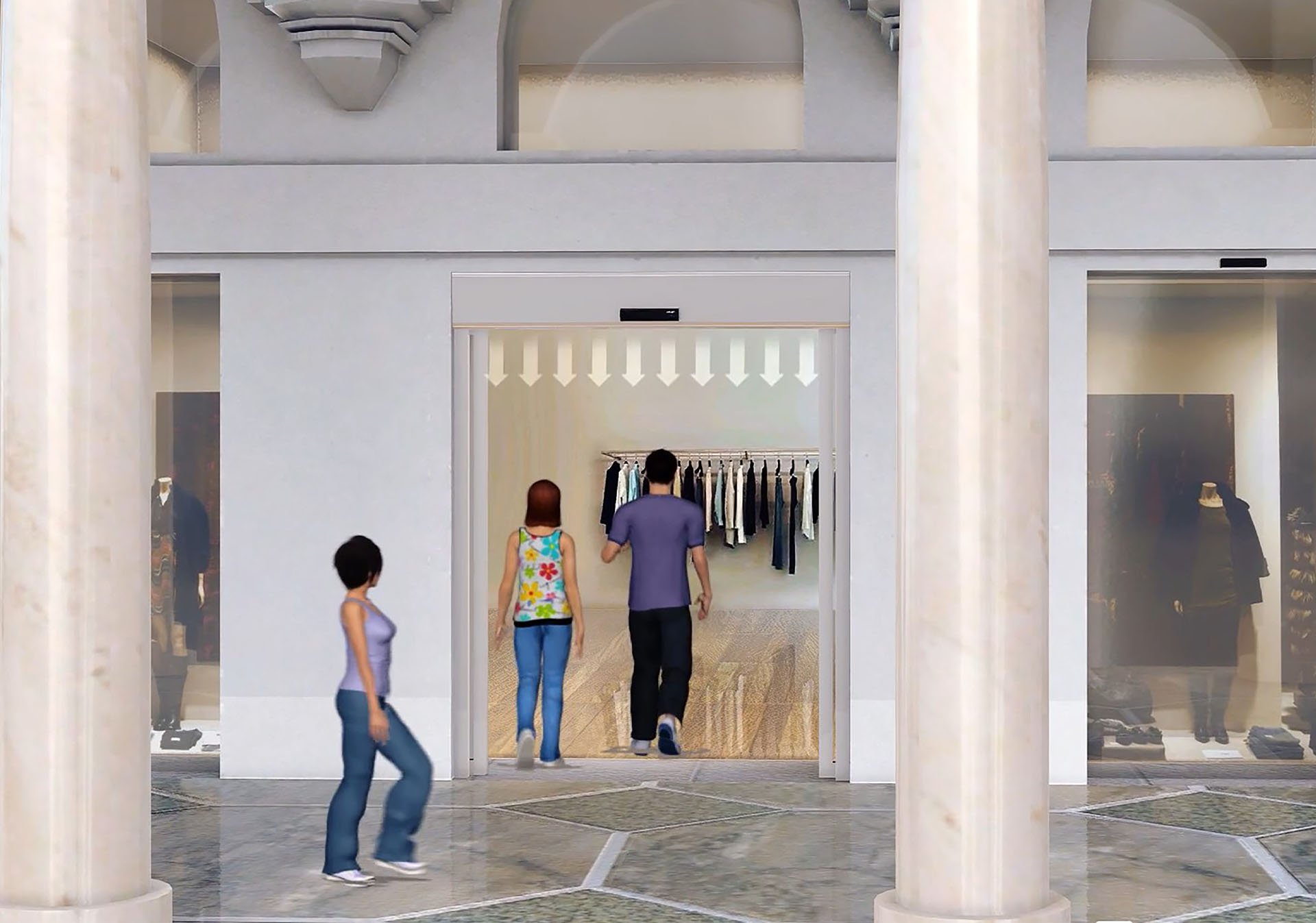

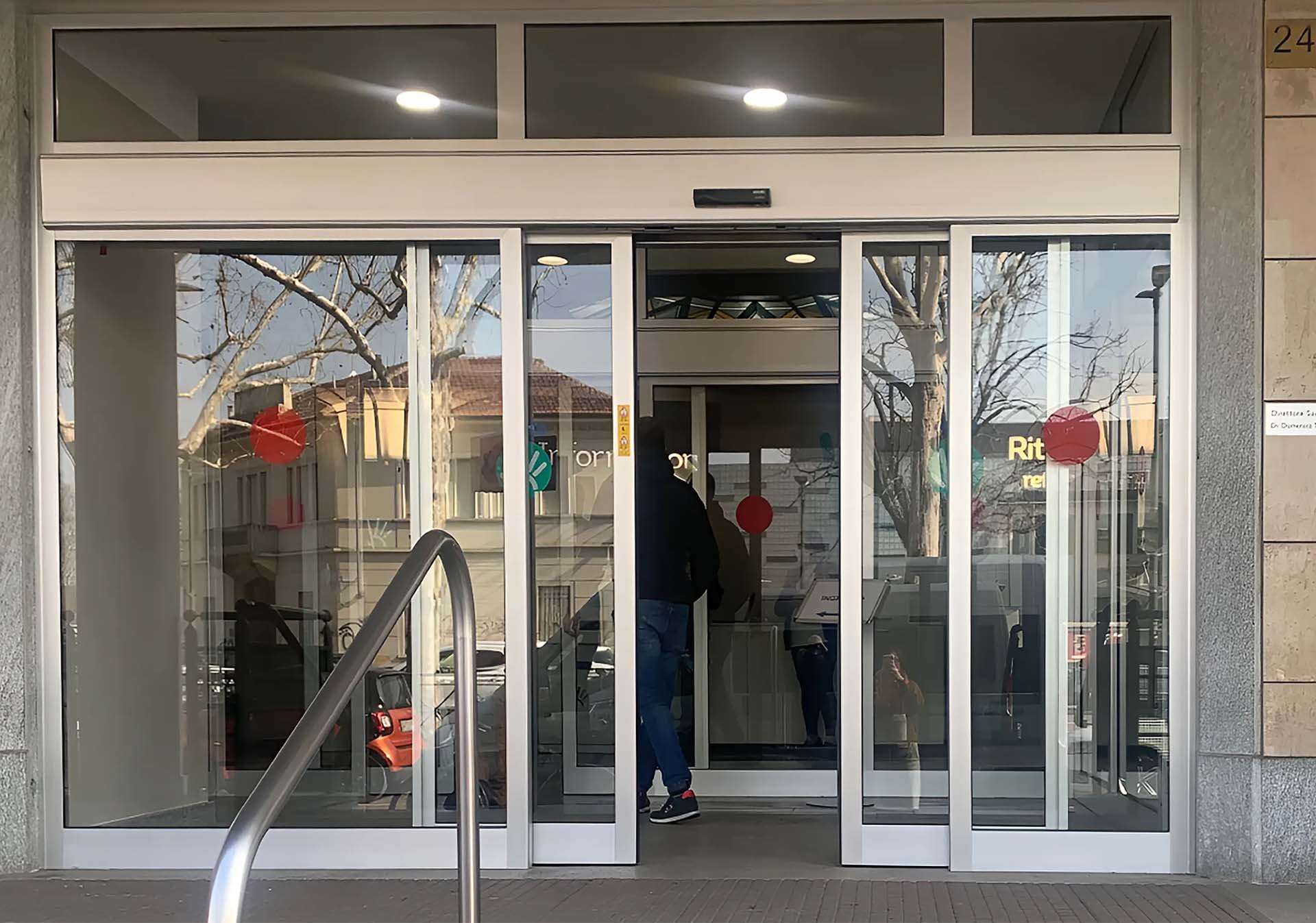

Suitable for areas open to the public such as shops, supermarkets, offices, banks, hospitals, airports and railway stations.

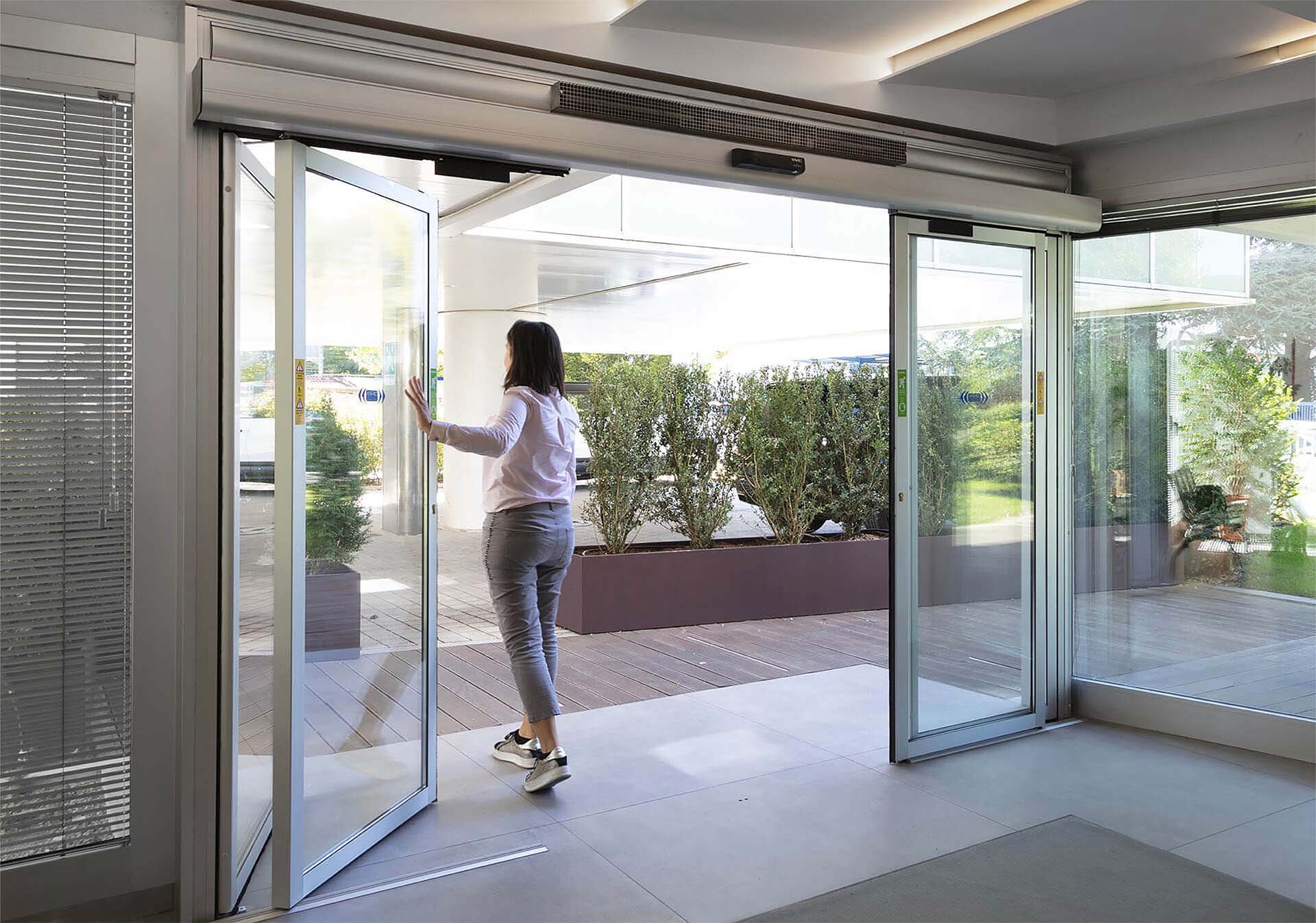

Possibility of adding an integrated automatically resetting anti-panic breakout system in compliance with European Standard EN 16005.
By combining the door with FAAC SERIES A1400 AIR automated system, thanks to its innovative 'Energy Saving' device, it identifies the walking path and perfectly optimises opening/closing times thus avoiding unnecessary air dispersal, even in the event of cross traffic.
Product features: energy efficiency up to 62%, air quality up to 62%, improved environmental comfort up to 48%
An effective protection because it limits the entry of smog, dust, dirt and insects from the external environment.
Installing a FAAC sliding door with an AIRSLIDE system is always the ideal solution to ensure the very highest standards of comfort, because it guarantees a considerable reduction in irritating drafts from the door.
Energy Efficiency

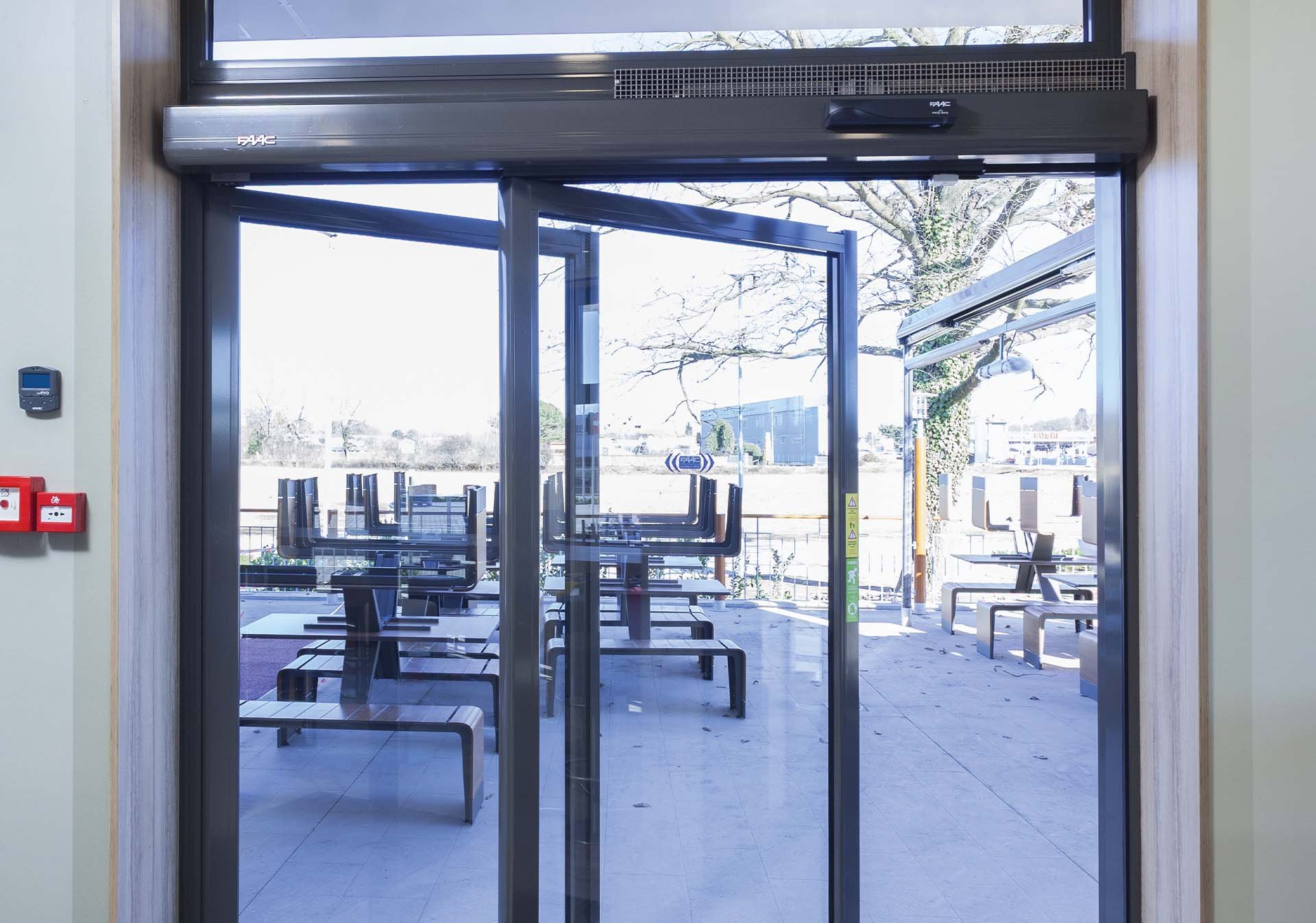

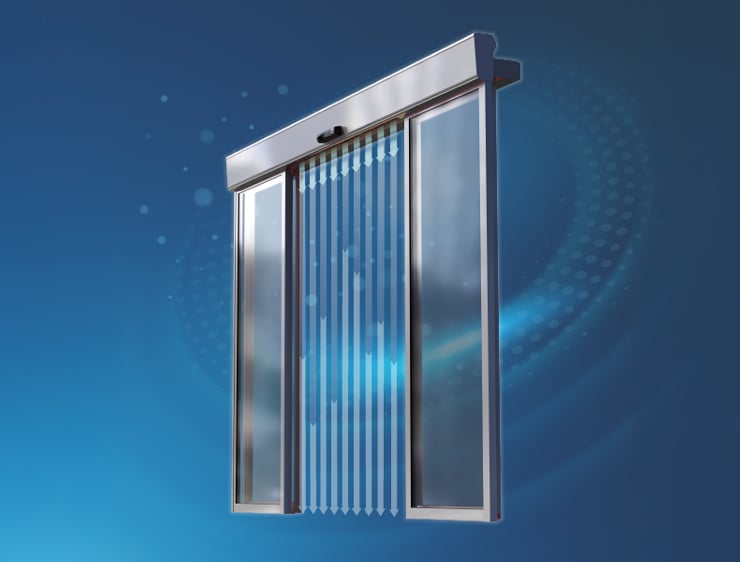

An air barrier protects the entrance area from the cold in winter and the heat in summer, without dispersion. This solution, designed for automatic entrances, allows the air to be kept inside the building, thereby helping to reduce energy consumption.
Technical infos
Product infos AIRSLIDE
Model
Item code
AIRSLIDE
1055661
Power supply voltage 220-240 V~ - 50/60 Hz
Electric motor Single-phase asynchronous motor
Max absorbed power 160 W (single motor) - 330 W (double motor)
Use frequency 100%
Fans' length 360 mm - 500 mm
Transom dimension (DxH) 182,1x 252,5 mm (Grill included)
Speed of air exiting the grids (0÷2,8 m) 15.3 - 3.7 (m/s)
Airflow capacity (m3/h) 1250
Manuals
File
/support/manuals-and-certificates
Catalogue
File
com/read/0006815783b95c2e8b95b
Other files:
FAAC AIRSLIDE Brochure
A1400 AIR
Sliding Door Automation
FAAC A1400 AIR SERIES automated systems are intended for the automation of exits in compliancewith European Standard EN16005; in fact they...
Support
Looking for technical documentation or original FAAC spare parts?
SAFEzone identifies FAAC's hydraulic and 230 V or 24 V electro-mechanical automation systems based on the latest electronic control cards and devices like the brand new SAFEcoder absolute encoder (a FAAC patent). These products permit the installation of new, fully compliant systems and the upgrading of older FAAC installations to comply with the latest standards without having to change the automation system itself.
GREENtech identifies FAAC gate automation systems that combine the latest generation of electronic control cards with innovative, patented mechanical components and devices.
Identifies the electronic board/automation compatible with optional modules that allow the automations to be controlled remotely. If the board is supplied as a standard component of an automation system, the product will be identified by this logo.

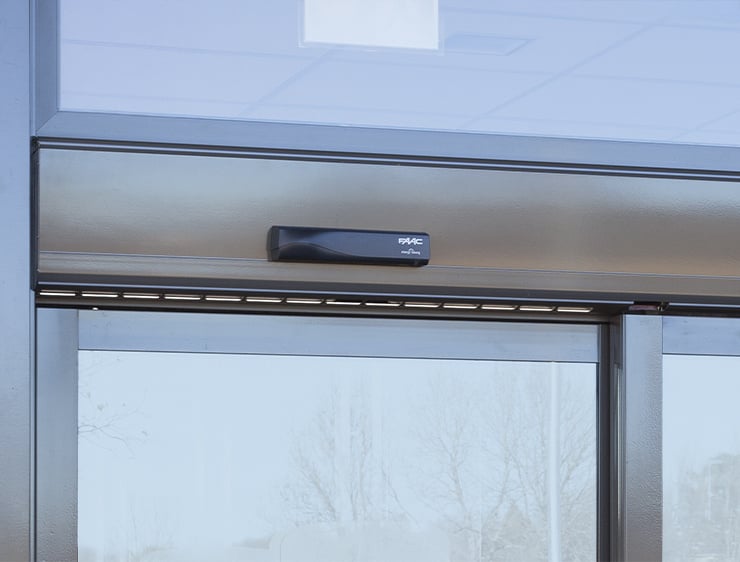

Identifies automatic doors fitted with a device that identifies the direction of movement and assesses a person’s intention to go through the doorway, and uses this data to optimise opening and closing times and prevent needless loss of indoor air.
This marking indicates compliance with European Standard EN 16005, which regulates the safety of use for automatic pedestrian doors.
