A1400 AIR Sliding Door Automation

FAAC A1400 AIR SERIES automated systems are intended for the automation of exits in compliance
with European Standard EN16005; in fact they are able to meet the most strict security standards
according to EN 13489-1 Pl "c".
Thanks to its innovative 'Energy Saving' device, it identifies the walking path and perfectly
optimises opening/closing times thus avoiding unnecessary air dispersal, even in the event of
cross traffic.

Max leaf weight 200-2x110 / 2x120-4x60Kg (telescopic version)
250-2x180 Kg (DM version)
Passage opening 700 - 3.000 mm standard version
1100 - 4.000 mm telescopic version
800 - 3.000 mm DM version

Technical description Download

Innovation symbols 5

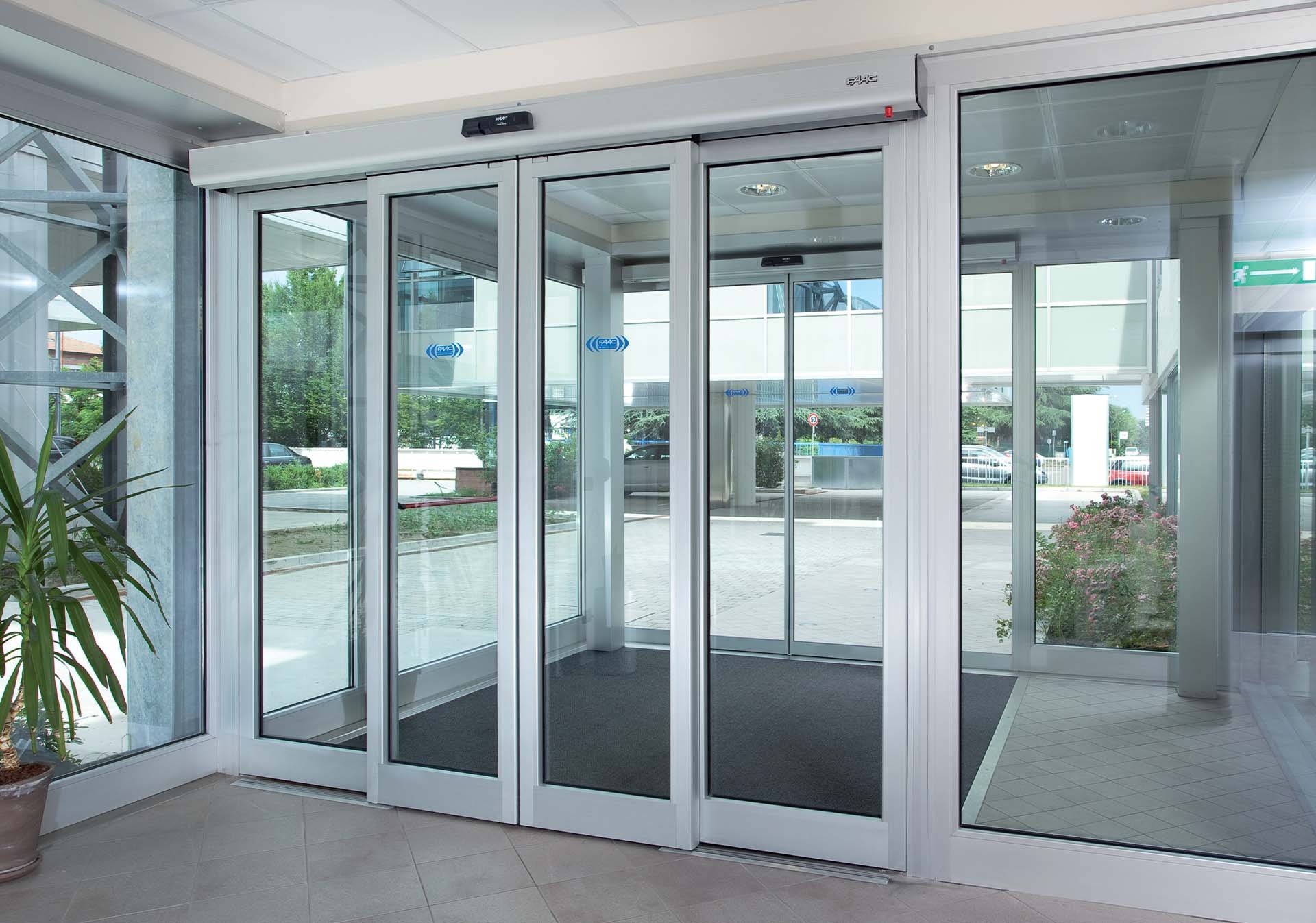

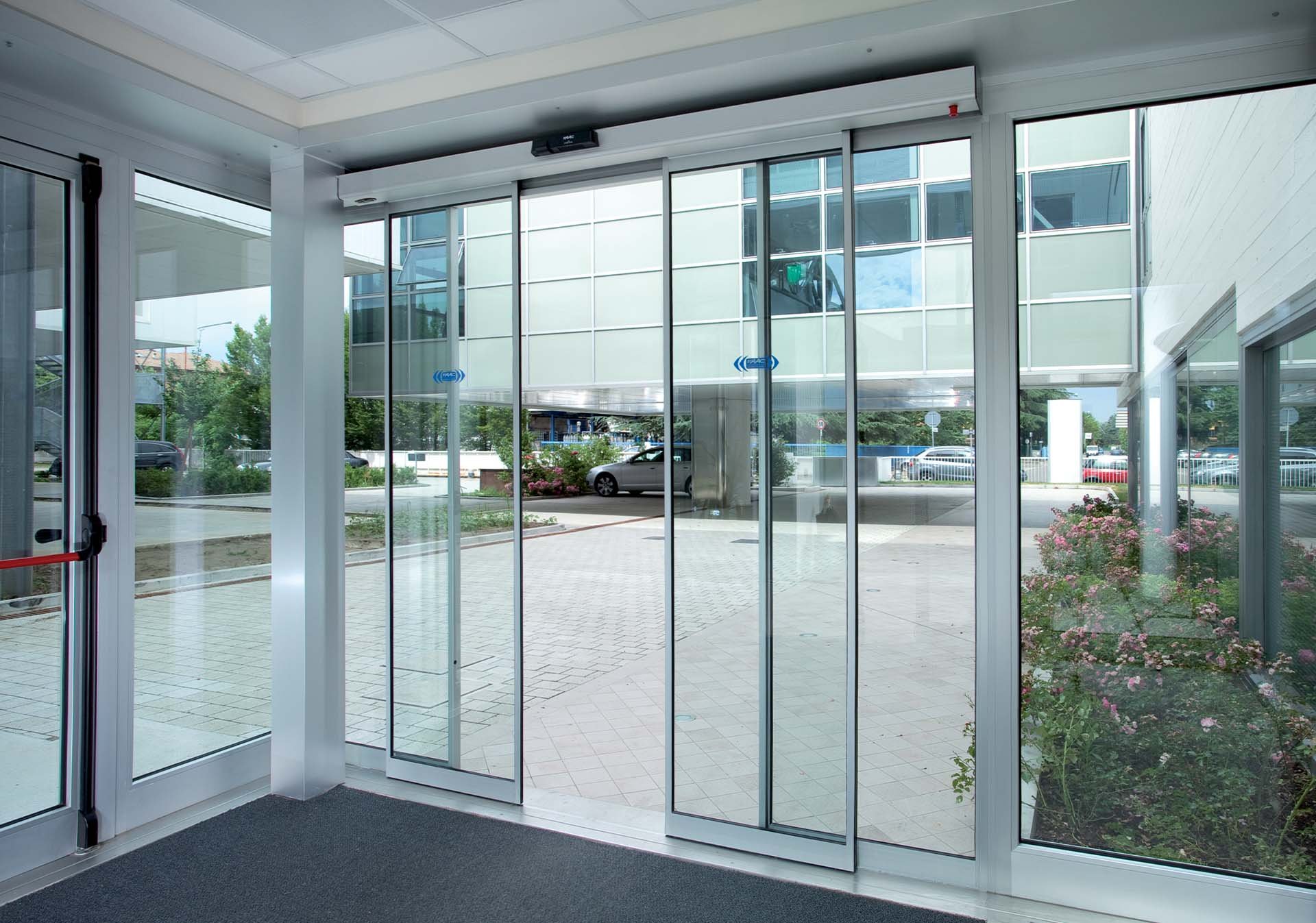

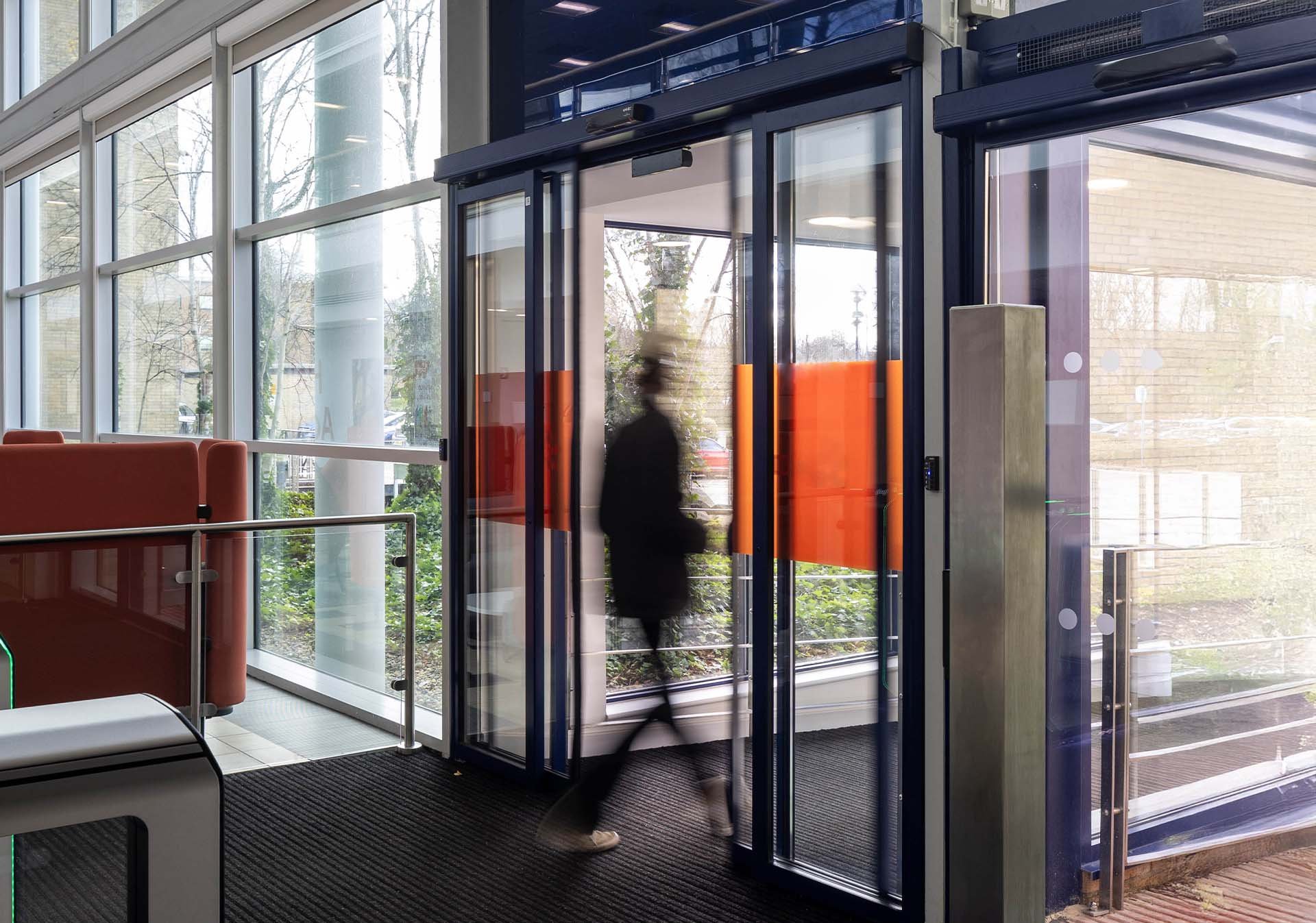

Gallery / Video

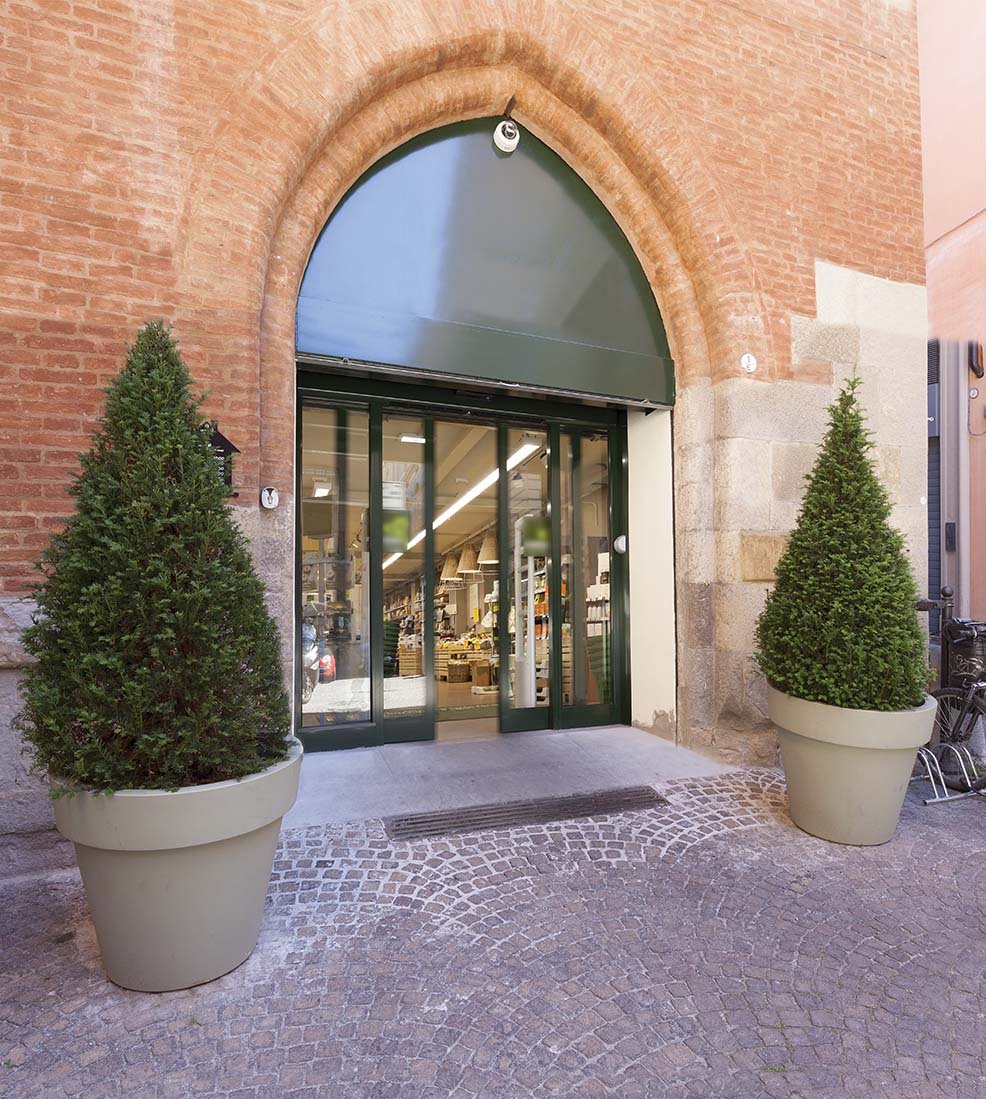

Example installation: FAAC A1400 AIR

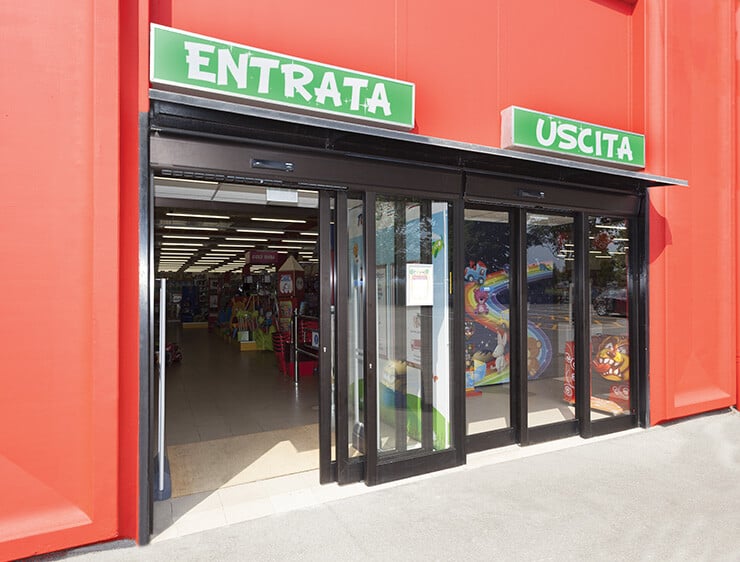

Example installation: FAAC A1400 AIR

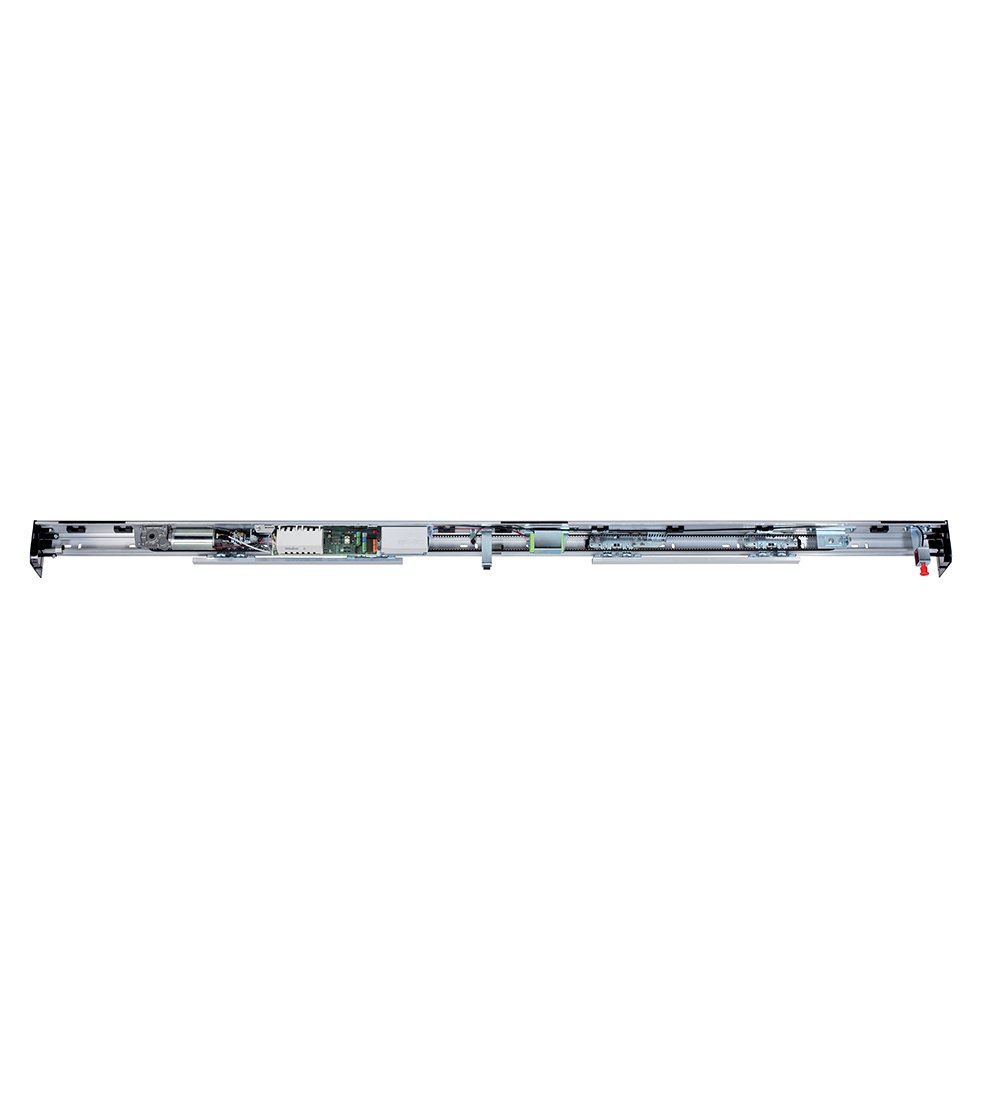

Focus on A1400 AIR

Energy Saving

The FAAC A1400 AIR SERIES automations are designed to automate entrances in compliance with European standard EN 16005; in fact, they are able to meet the most stringent safety requirements of EN 13489-1 Pl "c".

Its innovative “Energy Saving” device enables it to identify the direction of transit and optimises opening / closing times perfectly to avoid unnecessary air dispersion, even in the event of cross traffic.

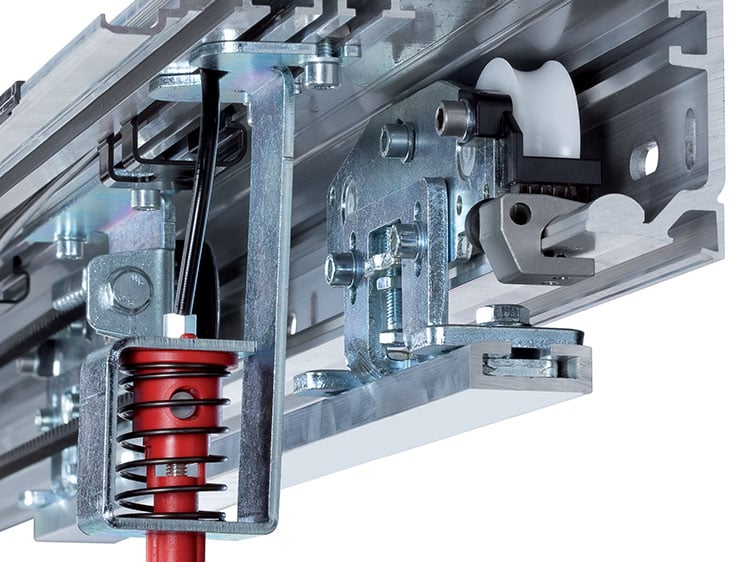

Sliding Carriages

Carriages with sliding wheels made of synthetic material mounted on bearings and reinforced for double motor versions. Sliding on an anodised aluminium track integrated into the profile.

Technical infos

Product infos A1400 AIR

01

Technical description

Power supply voltage 220-240 V~ - 50/60 Hz
Electric motor Motor powered at 36V DC with encoder
Max power 140 W
Use frequency 100%
Opening and closing leaf time 10 ÷ 60 cm/s (1 leaf) - 20 ÷ 120 cm/s (2 leaves)
Protection sensor monitoring (EN16005) As standard (may be excluded)
Low energy movement (EN16005) As standard (may be excluded)
Compliance with regulations EN 16005; EN 13489-1 Pl "c" ; EN 13489-2; EN 60335-1; EN 60335-2; EN ISO 12100; EN 61000-6-2; EN 61000- 6-3
