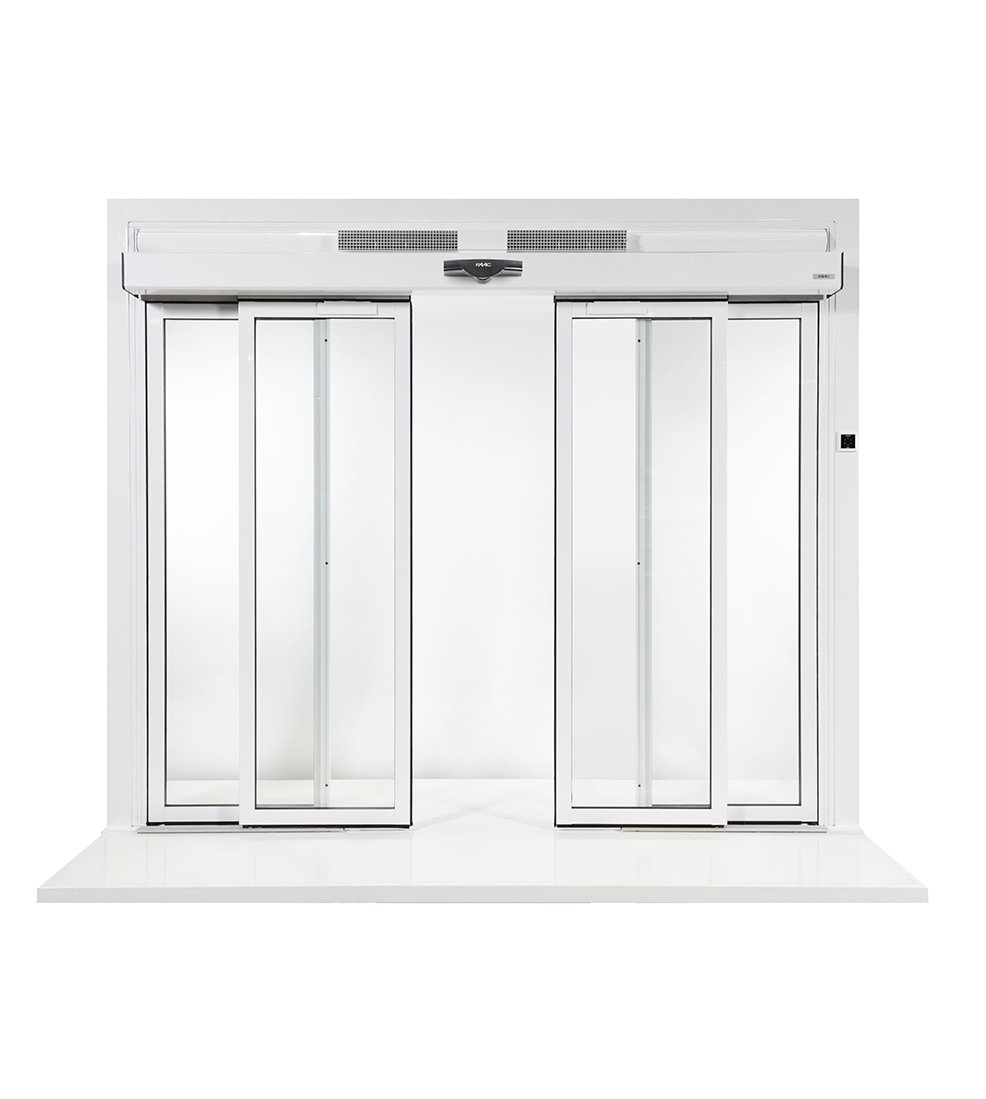

Automatic sliding doors

AS3000 Series Sliding Door Automation

Product range

Model	Single leaf	Double leaves
AS3010	up to 120 kg	up to 100+100 kg
AS3020	up to 200 kg	up to 150+150 kg
AS3030	up to 300 kg	up to 200+200 kg
Telescopic
AS3020 T	up to 80+80 kg	up to 50 kg x 4
AS3030 T	up to 150+150 kg	up to 100 kg x 4

Compatible with TK20/TK35/TK50 Door Profiles (20mm, 35mm, 50mm thick aluminium alloy profiles).

TÜV Certification

Compliance with the European Standard EN 16005 for use on escape routes.

Low power consumption

In standby mode, energy consumption is reduced to a maximum of 0.5W, in compliance with EU Directive 2009/125/EC and EU Regulation 2023/826.

EPD verified

The Environmental Product Declaration (EPD) is an internationally recognized document that transparently, objectively, and comparably details a product's environmental impact, considering its entire life cycle.

AIRSLIDE System (FAAC patent)

It integrates an automatic sliding door with a built-in air curtain, combining sleek design with energy efficiency. It reduces energy dispersion, enhances air quality by limiting external pollutants, and ensures optimal comfort by minimizing drafts.

Max leaf weight 120 Kg / 100 + 100 Kg (AS3010)
200 Kg / 150 + 150 Kg (AS3020)
300 Kg / 200 + 200 Kg (AS3030)
80 + 80 Kg / 50 Kg x 4 (AS3020 T - Telescopic)
150 + 150 Kg / 100 Kg x 4 (AS3030 T - Telescopic)
Passage opening 700 - 3000 mm / 800 - 3000 mm

Technical description Download

Innovation symbols 8

Gallery / Video

Watch the Product Video: FAAC AS3000 Series

Example Installation: FAAC AS3000 Series

FAAC AS3000 Series Sliding Door Automation

Example Installation: FAAC AS3000 Series

Focus on AS3000 Series

Ease of assembly and installation

The supporting beam includes guides for attaching components, ensuring secure and straightforward installation (installation time reduced by 30% compared to traditional systems). All components are easily accessible even by a single person, and maintenance is made easier thanks to magnetic hinges.

Advanced accessories

A refined range of function selectors, featuring an elegant design and the unmistakable FAAC style:

• BFQ3 Squared function keypad 80x80 mm
• KEX3 Key selector 80x80 mm
• DPE3 Programming selector with display
• BFS3 Slim surface-mounted function selector

Technical information

Product information AS3000 Series

Technical description

NB: If you’re viewing this section on a phone, swipe/scroll the table horizontally or rotate your device to landscape to see all columns and get the best experience.

Parameter	AS3010	AS3020	AS3030
Power supply voltage	100–240 V~ 50 Hz/60Hz
Torque	1.5 Nm	3.2 Nm	3.2 Nm
MAX absorbed power [W]	100	150	300
Ambient operating temperature	-20 °C ÷ +55 °C
Automation protection rating	IP 23 (internal use)

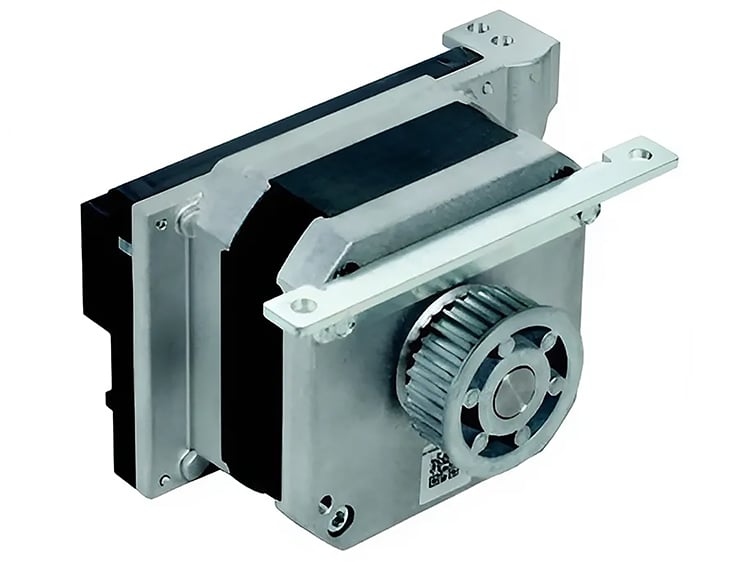

Type of electric motor	Brushless DC
Sound pressure (LpA)	< 40 dB (A)
Max. accessories load (including DPE3)	1A, 24V
Time/date backup battery	Lithium CR2032 3V
Motion backup battery	NiMh 24V 1800mAh
