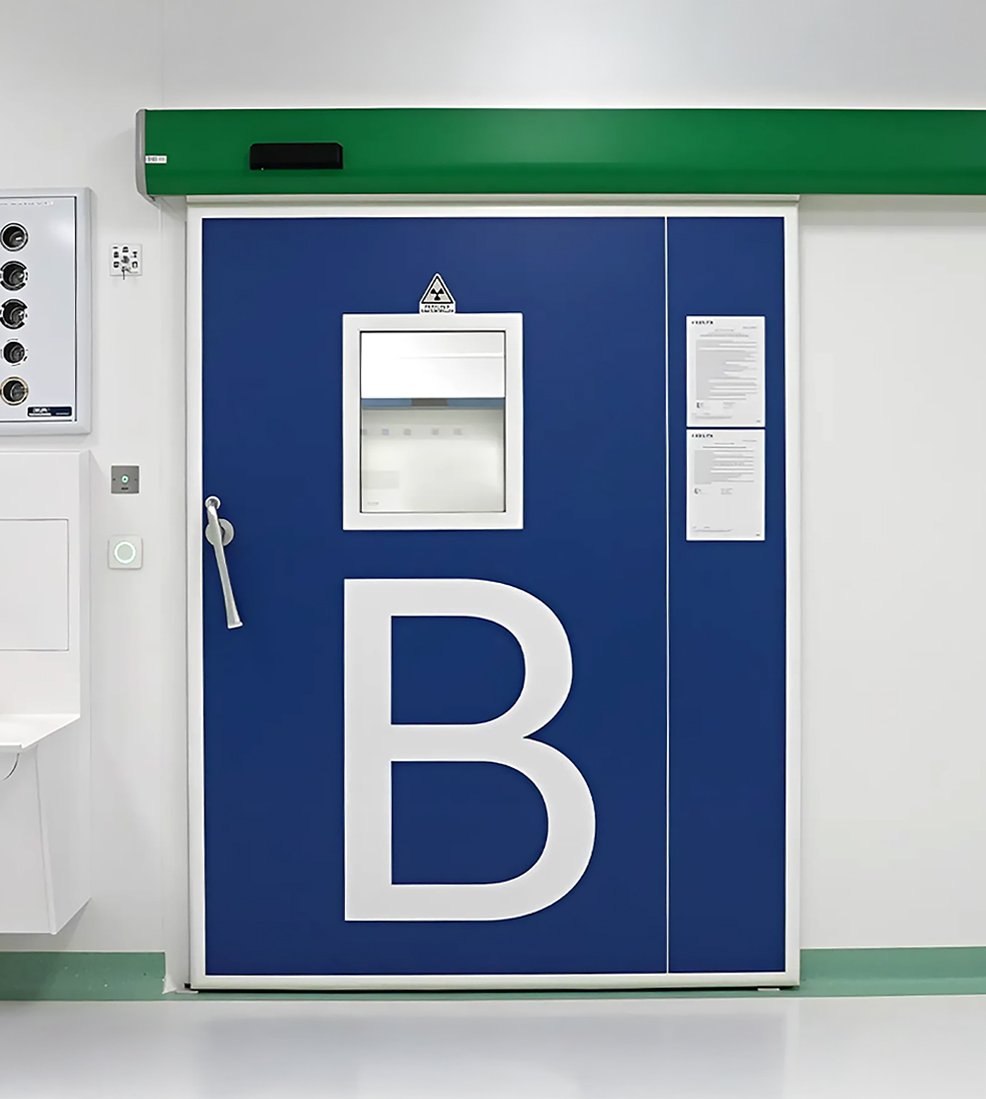

Sliding Hermetic EntranceHermetically sealed for hospitals and sterile environments
The automatic/manual opening, single/double leaf sliding doors are ideal for bacterial contamination controlled environments.
They can be easily installed on prefabricated systems and on any other type of wall. There are two versions available, an airtight version or a hermetically sealed version.
The sliding doors can be operated either automatically - using electromechanical components (with control, regulation and monitoring systems suitable for the application requirements) - or operated manually using handles.

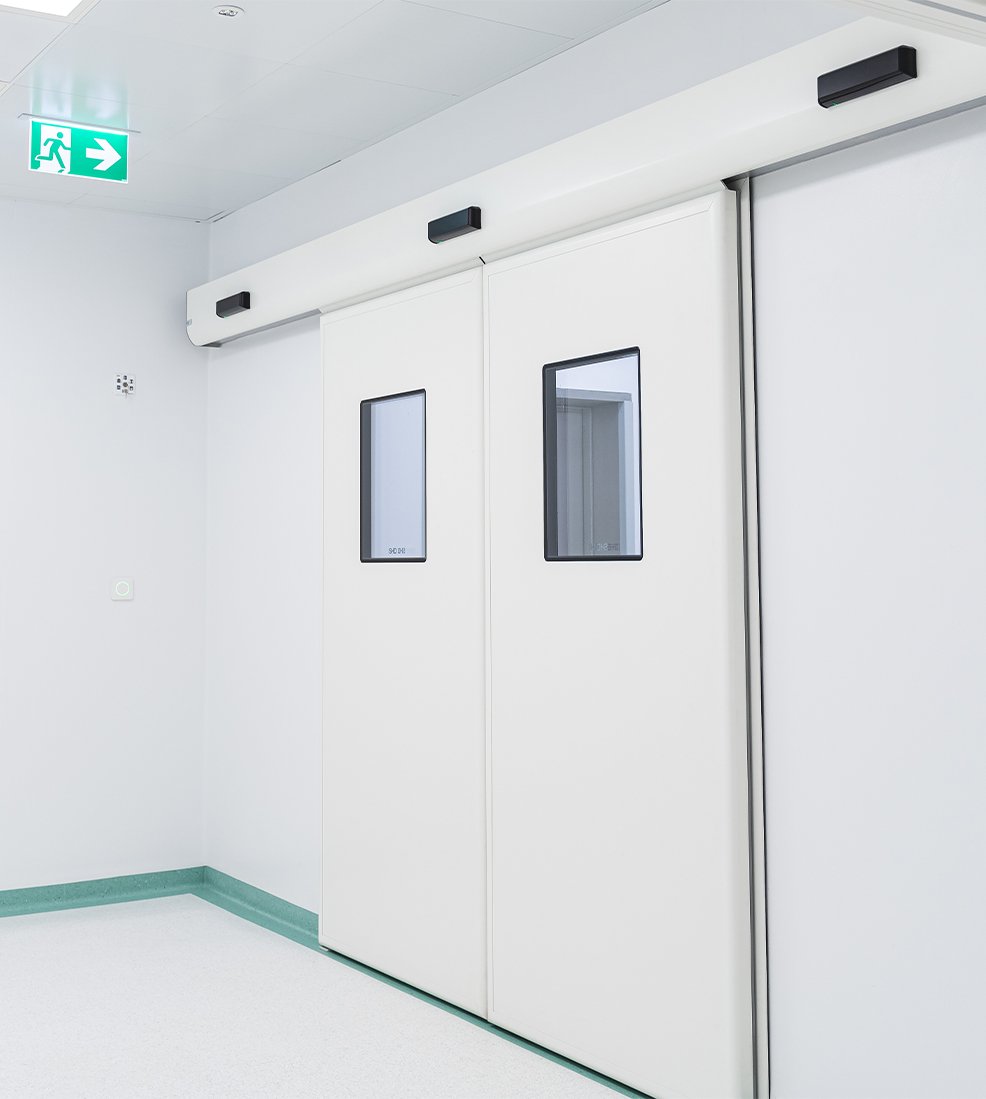

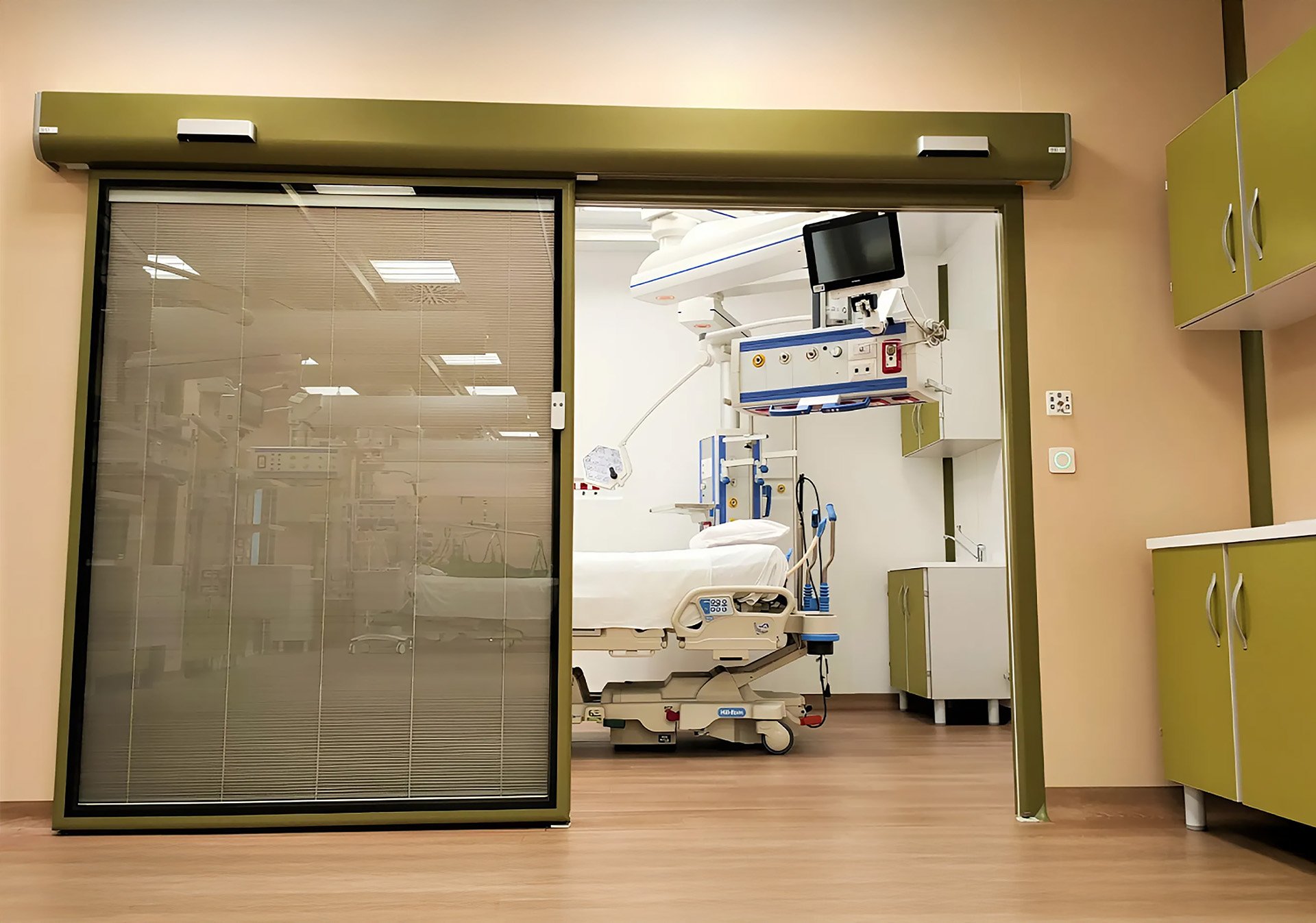

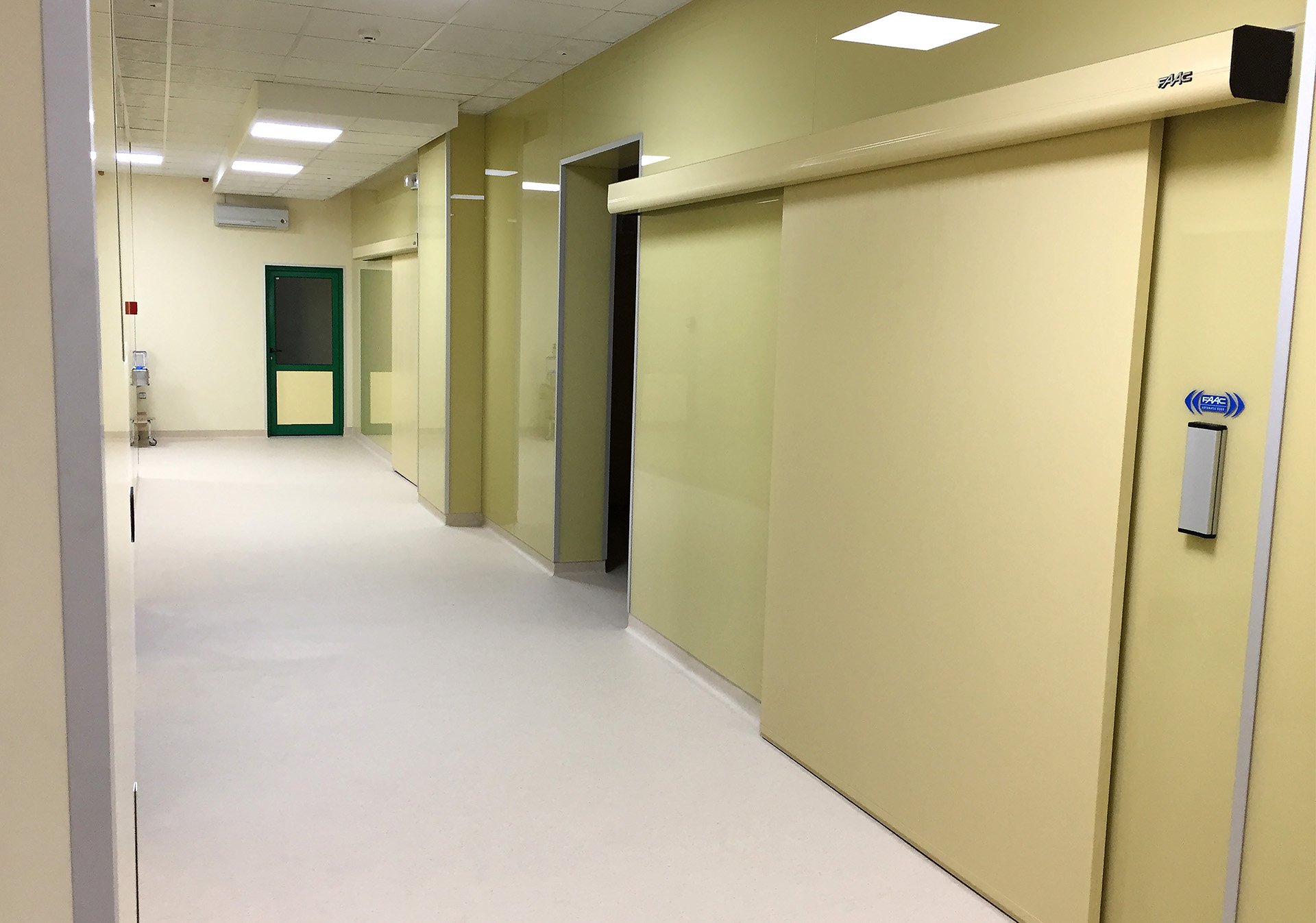

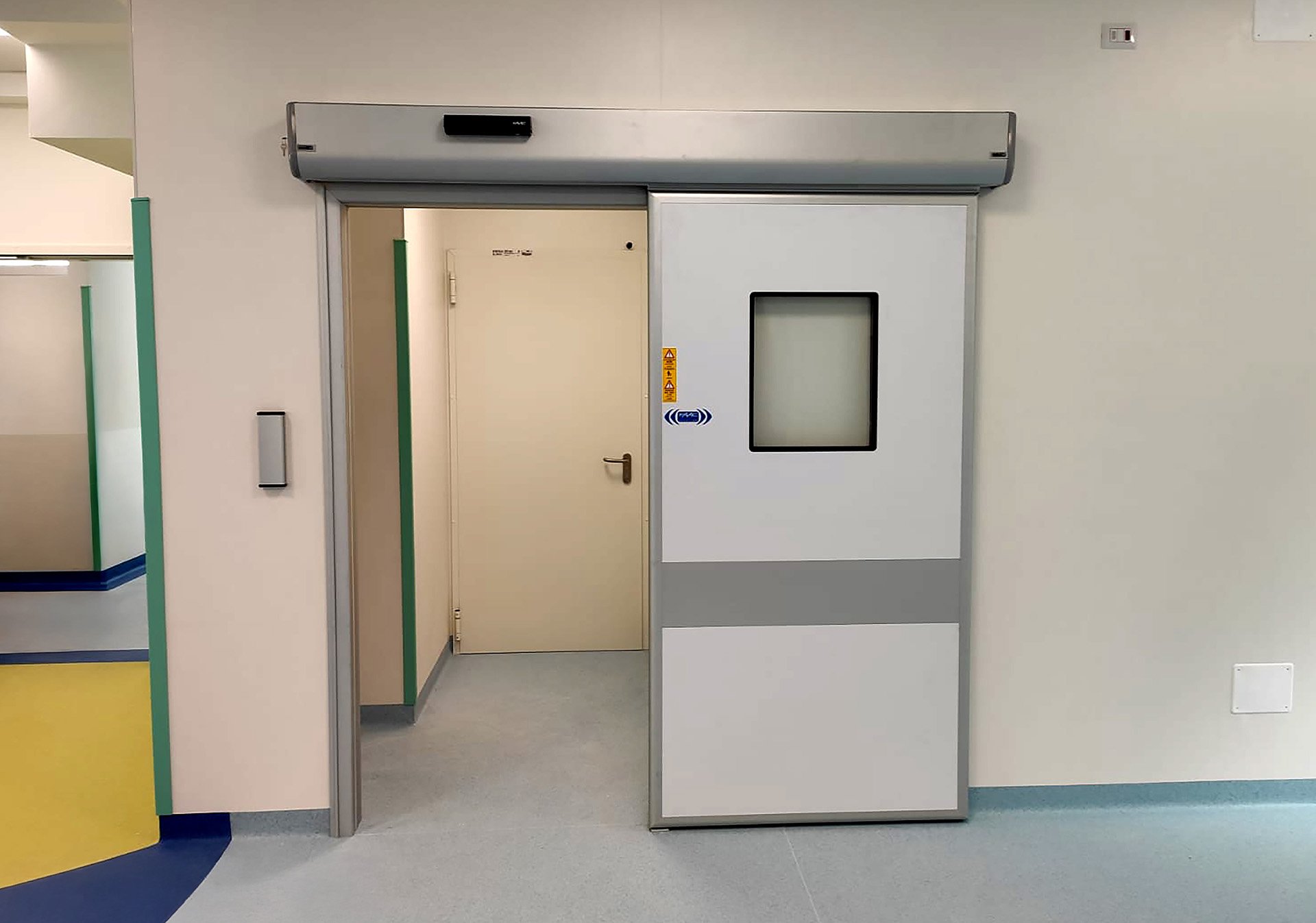

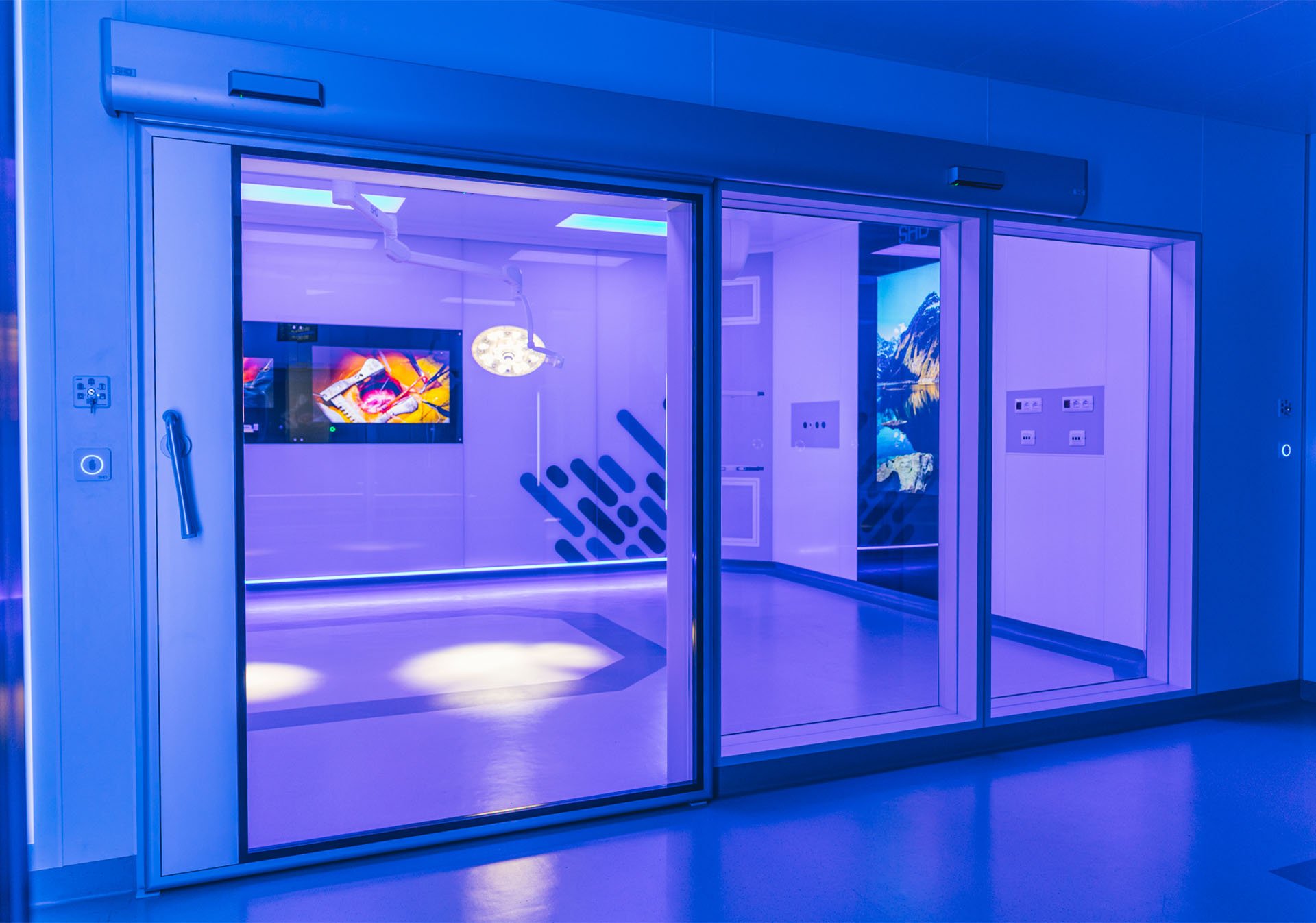

Example installation: FHE Sliding Hermetic Entrance
Example installation: FHE Sliding Hermetic Entrance
Example installation: FHE Sliding Hermetic Entrance
Example installation: FHE Sliding Hermetic Entrance
Example installation: FHE Sliding Hermetic Entrance
Focus on Sliding Hermetic Entrance
Airtight Sliding Door FHE-SSA/SSM

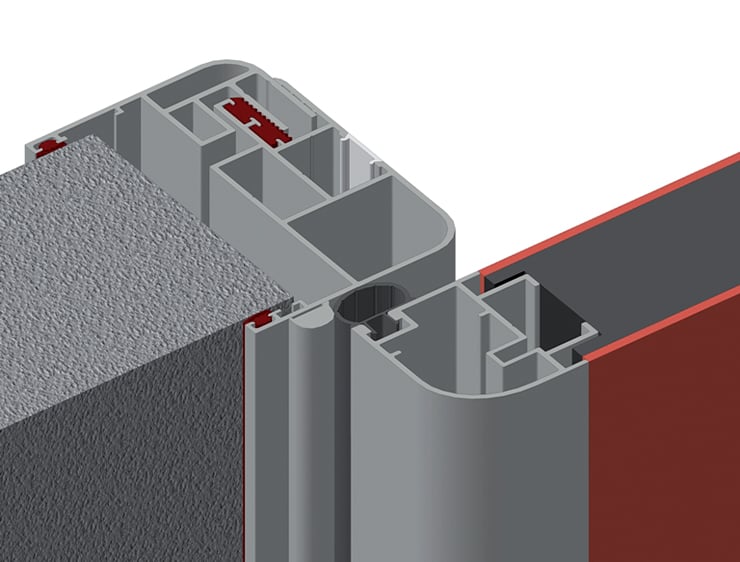

The leaf of this type of door moves in a horizontal direction only. It is sealed vertically by seals installed on the leaf that rest against vertical profiles mounted on the door frame, whilst the upper and lower seals on the two horizontal edges of the leaf slide next to the horizontal profile of the door frame and the surface of the floor.
Hermetically Sealed Sliding Door FHE-SHA/SHM
The sliding leaf of the door becomes hermetically sealed against the edge profile of the door opening during the final closing stage by a combined sliding, vertical and inward movement.
The leaf approaches the frame and the floor surface with a stroke of up to 20 mm and an inclination of 45°. The special design of the support and trolley guide enables the vertical and inward movements to be performed without the need for additional actuators.

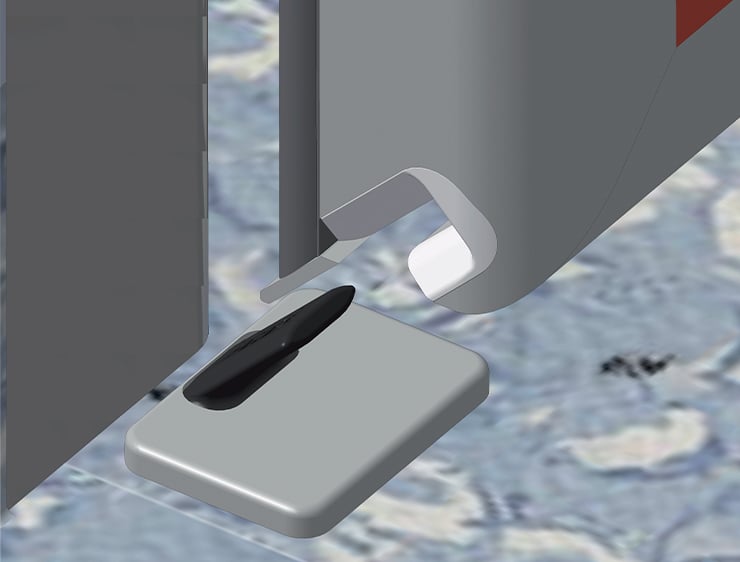

The hermetic seal, both on the door frame and the floor, is achieved by the compression of special seals installed on the perimeter of the leaf profile. At the bottom of the leaf, the specially shaped profile slides on two guide points that help to improve the hermetic seal.
Technical infos
Product infos Sliding Hermetic Entrance
A1400 AIR Sliding Door Operator
Power supply voltage 220-240 V~ - 50/60 Hz
Max power 140 W
Standby power 3 W
Use frequency 100%
Max leaf width 65 mm
Electric motor Motor powered at 36V with encoder
Max accessories load 1A - 24V
Type of traction By means of toothed belt
Opening and closing leaf time 10 ÷ 60 cm/s (1 leaf) - 20 ÷ 120 cm/s (two leaves)
Partial opening adjustment 5% - 95% of total opening
Pause time 0 - 30 s or Energy Saving function
Night pause time 0 - 240 s
Encoder As standard
Protection sensor monitoring (EN16005) As standard (may be excluded)
Low energy movement (EN16005) As standard (may be excluded)
Operating ambient temperature -20°C ÷ +55°C
Protection class IP 23 (for internal use only)
Compliance with regulations EN 16005; EN 13489-1 Pl "c" ; EN 13489-2; EN 60335-1; EN 60335-2; EN ISO 12100; EN 61000-6-2; EN 61000-6-3
Model
Item code
FHE-SSA Airtight automatic sliding door
105141
FHE-SSM Airtight manual sliding door
105142
FHE-SHA Airtight automatic sliding door
105143
FHE-SHM Airtight manual sliding door
105144
Manuals
File
help/products/a1400-air-a1400-air-dm/
Catalogue
File
com/read/0006815783b95c2e8b95b
Other files:
FAAC Hermetic Entrances Brochure
FAAC A1400 AIR Brochure
