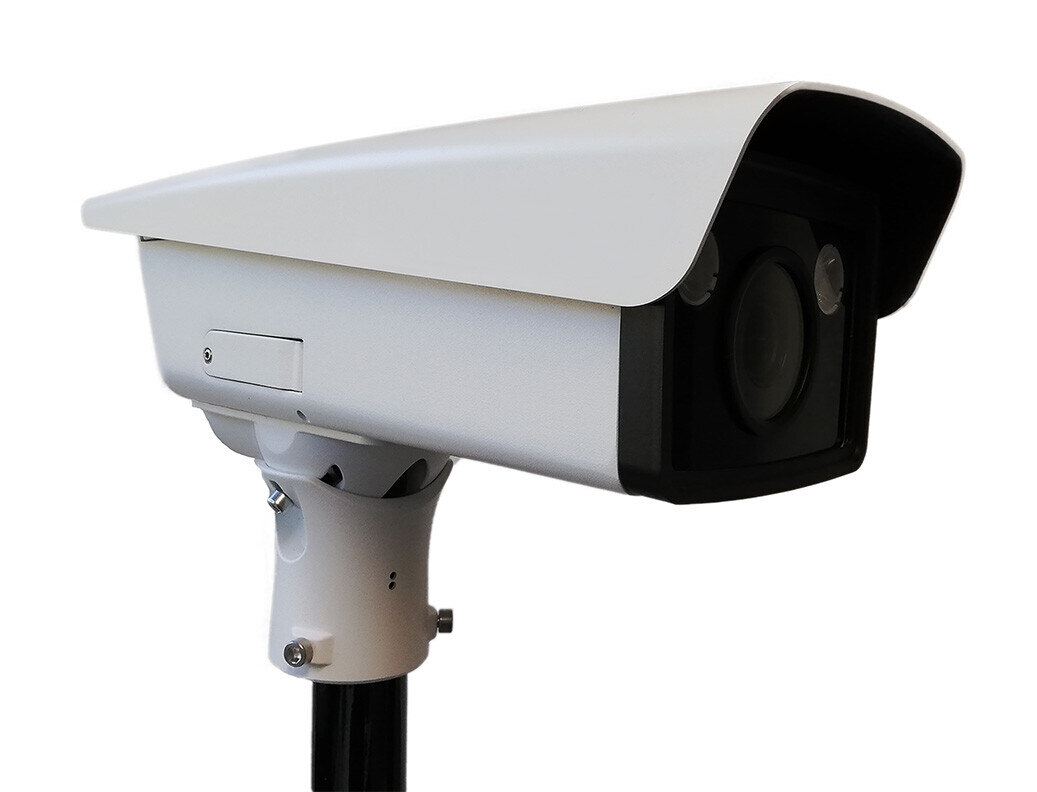

License plate reading camera for standard vehicular flow
READERPLATE-DS-TCG
-
Type: license plate reader with integrated OCR
-
Installation: on pole or wall
- Integrated license plate recognition system for driveway management and traffic monitoring
- For small/medium sized residential or commercial installations with small number of transits
- RS232 connection to the gate door controller for communication of the read license plate and subsequent validation in the Keydom system
- Photo archiving of read license plates thanks to connection via LAN to the client's network resources
- OCR accuracy: up to 98%.
- Degree of protection: IP67

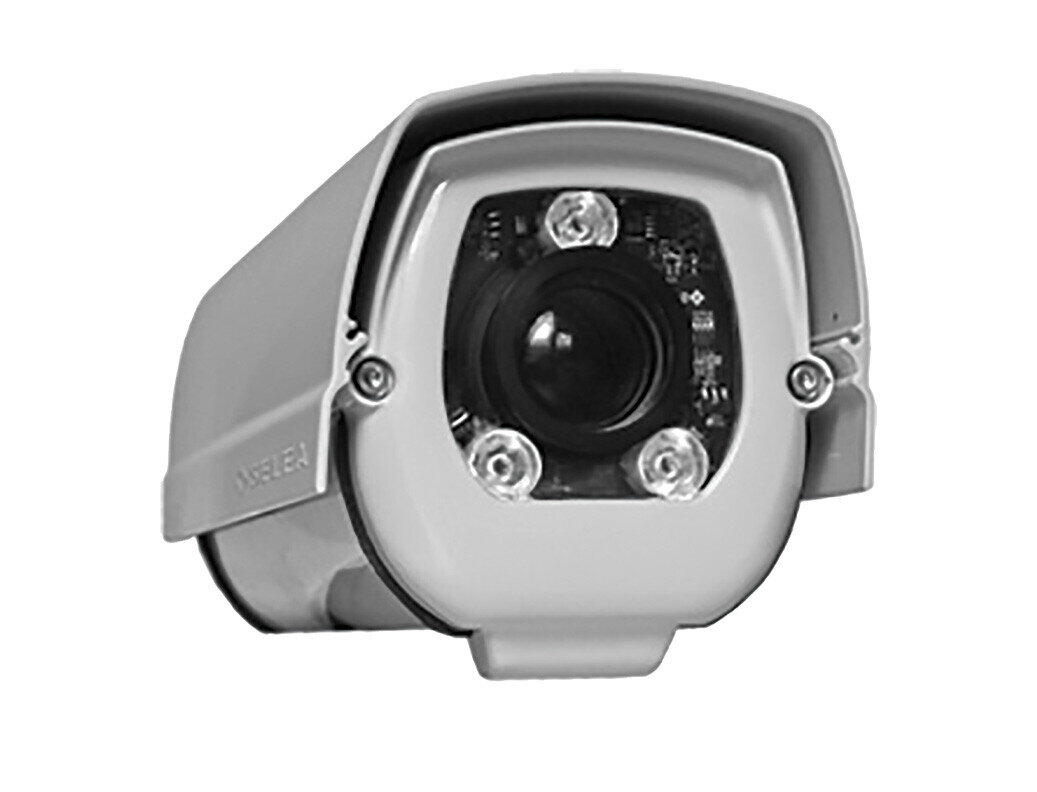

License plate reader camera for high vehicular flow and industrial applications
READERPLATE-504MP
-
Type: license plate reader with integrated OCR
-
Installation: on pole or wall
- Integrated license plate recognition system for driveway management and traffic monitoring
- Ideal for applications in industrial settings, logistics hubs, for managing high vehicular traffic gates
- RS232 connection to the gate door controller for communication of the read license plate and subsequent validation in the Keydom system
- Connected via Ethernet LAN to a memory for storing photographs of read license plates
- Operation with any type of ambient lighting
- Illuminator: n.6 high-power IR leds
- OCR accuracy: up to 99.9%
- Degree of protection: IP66
- Internal protections for polarity reversal, voltage surges and overloads

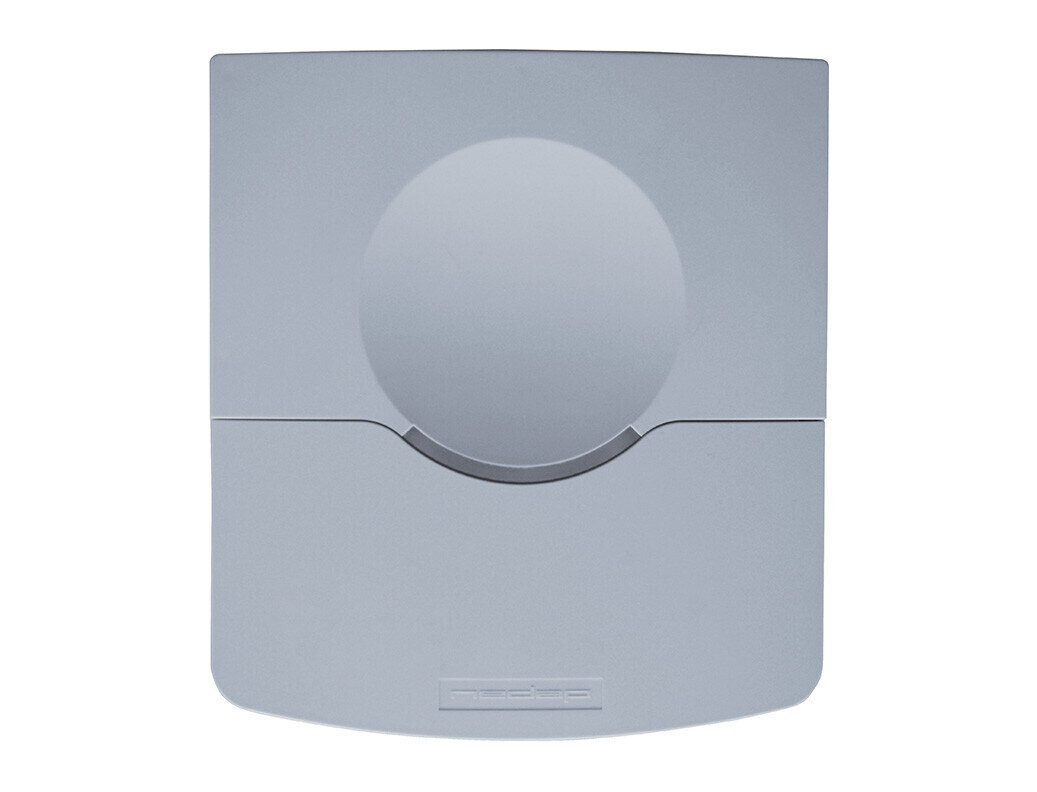

UHF vehicular reader for remote detection of passive TAGs
AT4 868
-
Type: UHF 868 Long Range Reader
-
Installation: pole-mounted
- Enables remote identification of vehicles equipped with UHF tags based on battery-free passive technology, easy to install in adhesive label format (non-removable)
- Ideal for vehicular access control for vehicles on front entryway
- Range: up to 4 meters
- Technology: UHF 868
- Degree of protection IP 65
- Connection to Door Controller: Magnetic Stripe

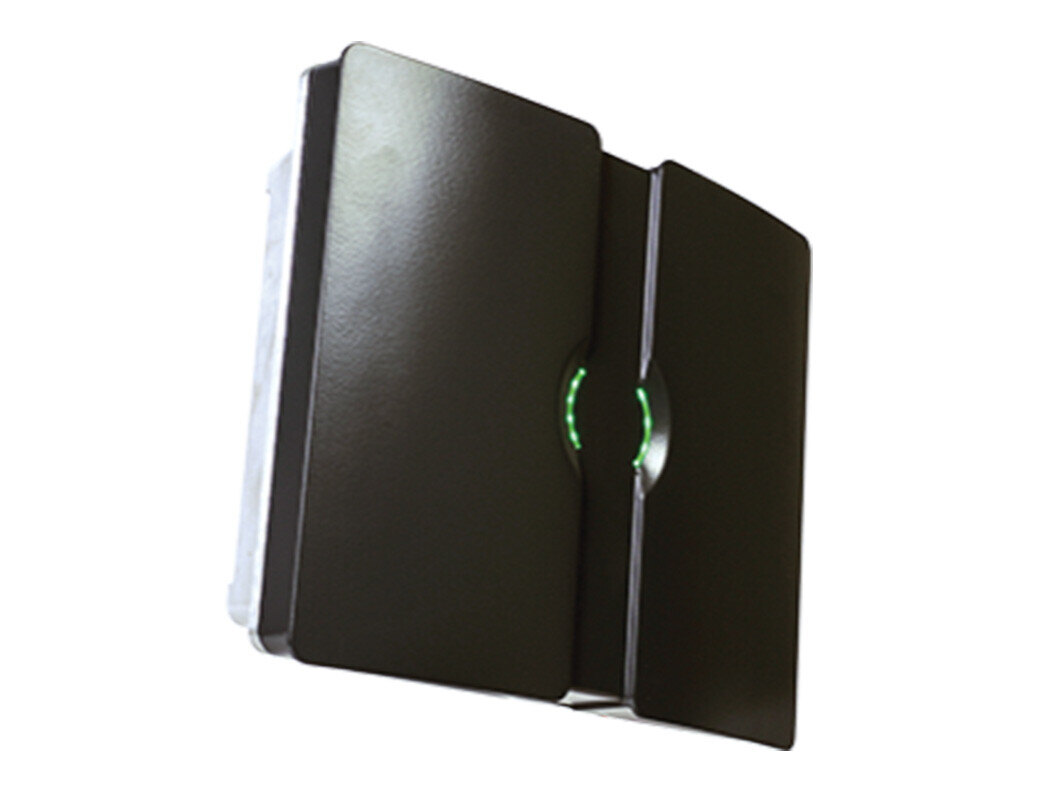

Long-range vehicular reader for remote detection of active transponders
AT-8
-
Type: Long range reader for Active Transponder 2.4GHz
-
Installation: on pole
- Directional reading lobe to circumscribe the identification zone
- Recommended for access control of a mixed fleet of vehicles (heavy and light)
- Vehicle transponder with built-in lithium battery with up to 10-year life span
- Possibility of combined vehicle and driver identification (with dedicated transponder)
- Range: up to 10 meters
- Degree of protection: IP66
- Technology: 2.4 GHz
- Connection to Door Controller: Magnetic Stripe

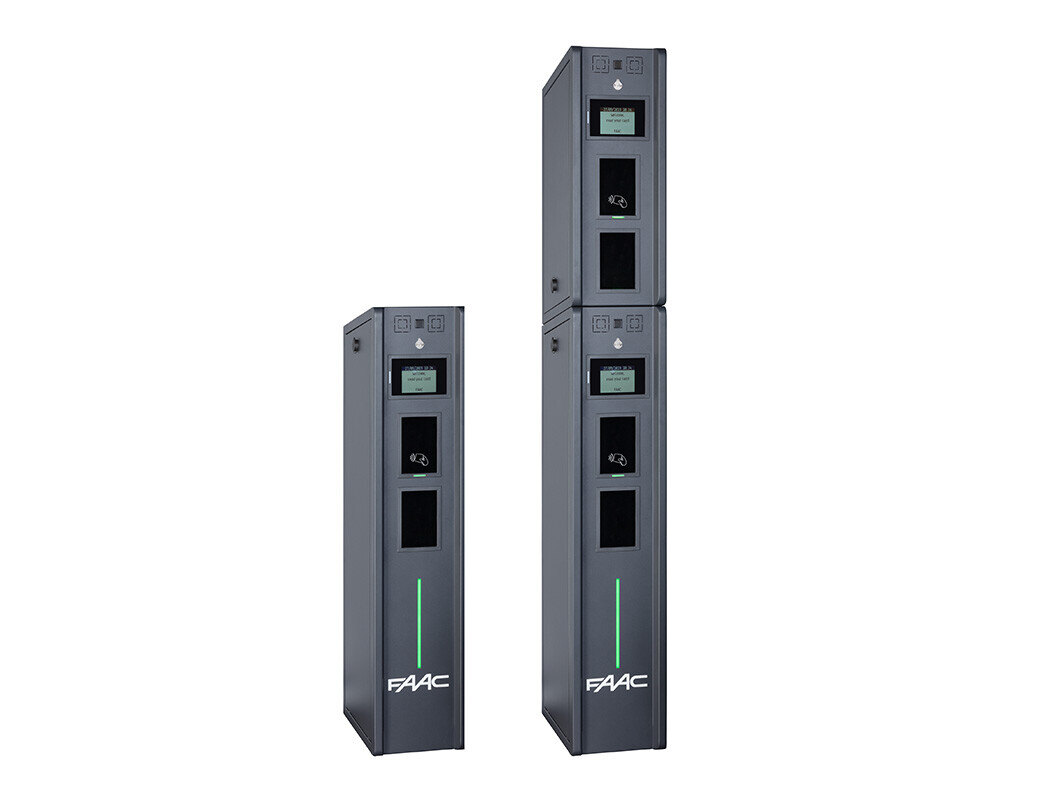

Vehicular column with proximity card reader
VT
-
Type: vehicular column for passive proximity card reading
-
Installation: on vehicular track
- Available in single level for cars and double level for cars and trucks
- 430 stainless steel frame painted RAL 7021
- 5.1'' monochrome graphic display
- 125KHz or 13.56MHz proximity reader (MIFARE)
- Integrated heater and thermostat-controlled ventilation
- Intercom provision with call button, speaker and microphone
- Complete with Door Controller unit and two-channel Detector for connecting magnetic coils
- IP 44

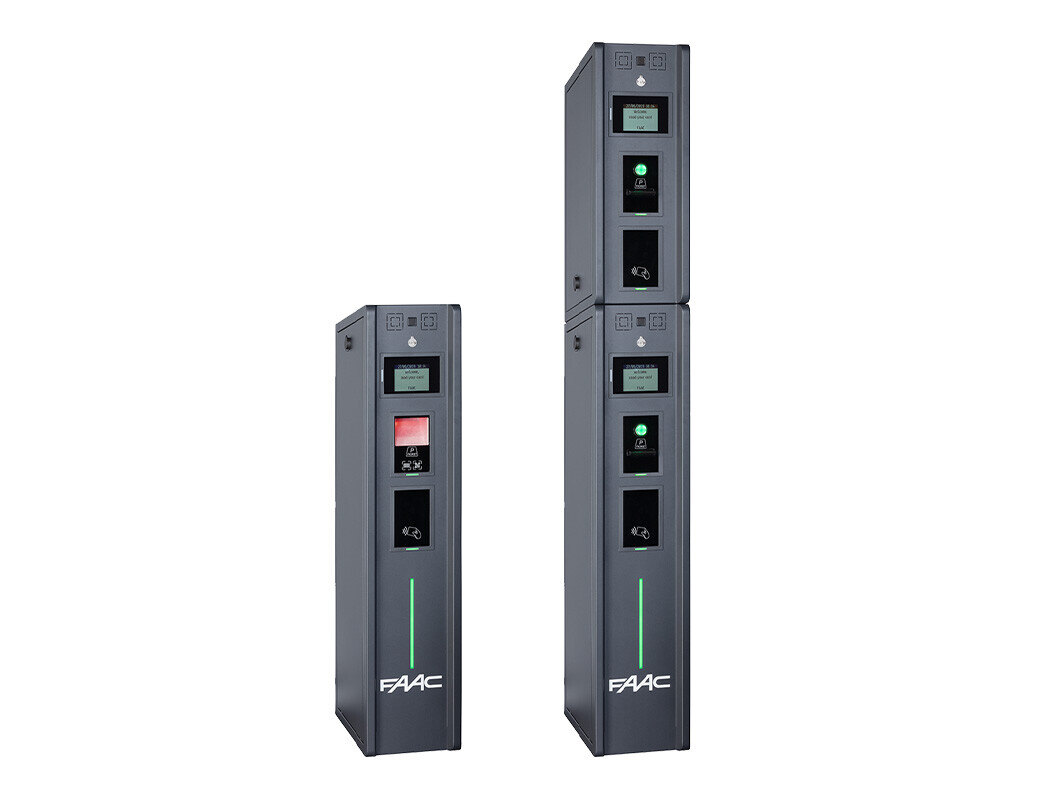

All-in-one vehicular column with ticket and proximity card management
VTDT / VTRT
-
Type: vehicular column with passive proximity reader and ticket printer/reader
-
Installation: on vehicular track
- Available in three versions:
VTRT: Ticket READER with Optical Scanner for Qrcode Ticket Reading + Proximity Reader;
VTDT: Ticket DISPENSER with Thermal Printer for Barcode/Qrcode ticket issuance + Proximity Reader;
VT FULL: Ticket READER AND DISPENSER with Thermal Printer, Optical Scanner and Proximity Reader; - 430 stainless steel frame painted RAL 7021
- Monochrome graphic display 5.1''
- 125KHz or 13.56MHz proximity reader (MIFARE)
- Integrated heater and thermostat-controlled ventilation
- Intercom provision with call button, speaker and microphone
- Complete with Door Controller unit and two-channel Detector for connecting magnetic coils
- IP 44
Accessories for vehicular gate readers
Desktop ticket printer
ST-STA-AUT
- Desktop printer for issuing tickets using the Keydom platform
- To be connected to PC via USB connection
- Useful for ticket printing at reception or check-in desk
Desktop proximity reader
LE-EM-TAST
- Designed to facilitate entry of tags into the software archive by the title upload operator and users;
- 125 KHz and13.56 MHz MIFARE reading technology;
- Connection to PC via USB.
