    Proximity reader

    XTRR

    • Type: passive proximity

    • Installation: wall-mounted or column-mounted

    • Compact, solid and slim design for any architectural context
    • Aluminum case and steel cover
    • Buzzer and bi-color Led (red & green)
    • Connection with FAAC proprietary SPINET BUS;
    • Available in 125 KHz or 13.56MHz Mifare version
    • IP 54
    FAAC XTRR Pedestrian Gates Proximity Reader

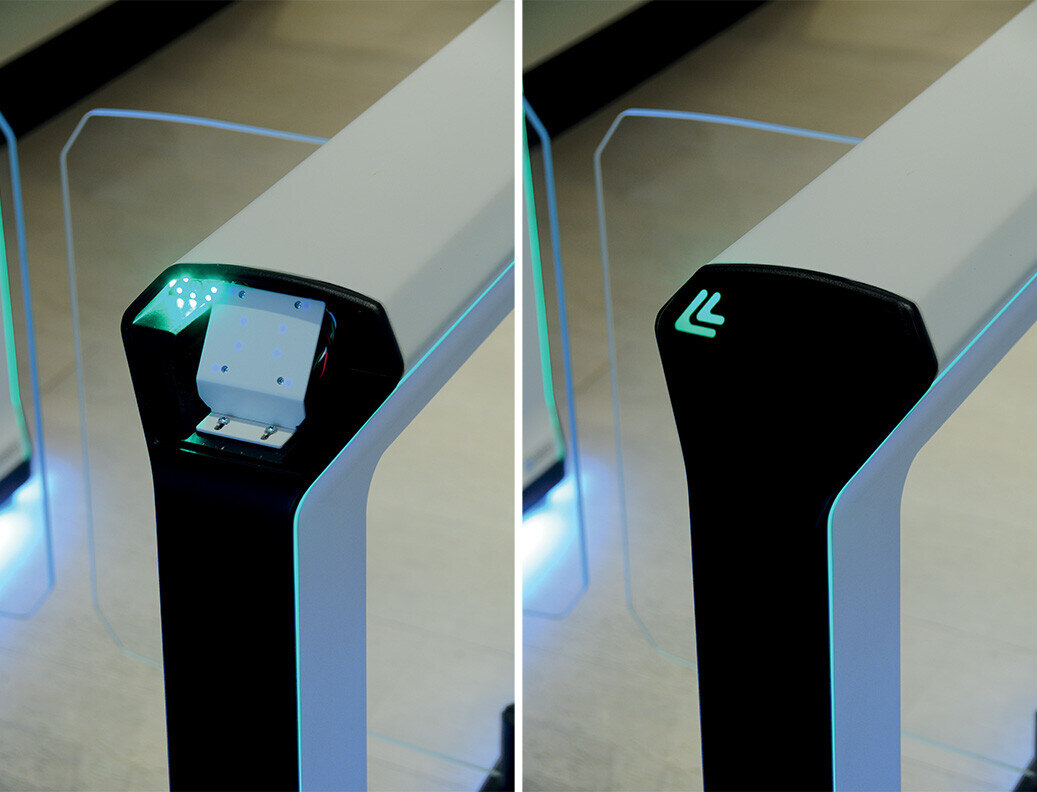

    Proximity reader for integration into Flowmotion pedestrian gates

    XTRR FLOW

    • Type: passive proximity

    • Installation: integrated into the pedestrian passageway

    • Designed to be integrated inside the shell of FlowMotion® mWing, mTripod, mPost products.
    • Available in 125 KHz or 13.56MHz Mifare versions
    XTRR Flow Flowmotion Pedestrian Gates Proximity Reader

    Proximity reader with integrated keypad

    XKPR

    • Type: passive proximity + keypad

    • Installation: wall-mounted or column-mounted

    • Compact, solid and slim design for any architectural context
    • Aluminum case and steel cover
    • Buzzer and bi-color Led (red & green)
    • Connection with FAAC proprietary SPINET BUS;
    • Available in 125 KHz or 13.56MHz Mifare version
    • Backlit metal keypad
    • IP 54
    FAAC XKPR Pedestrian Gates Proximity Reader

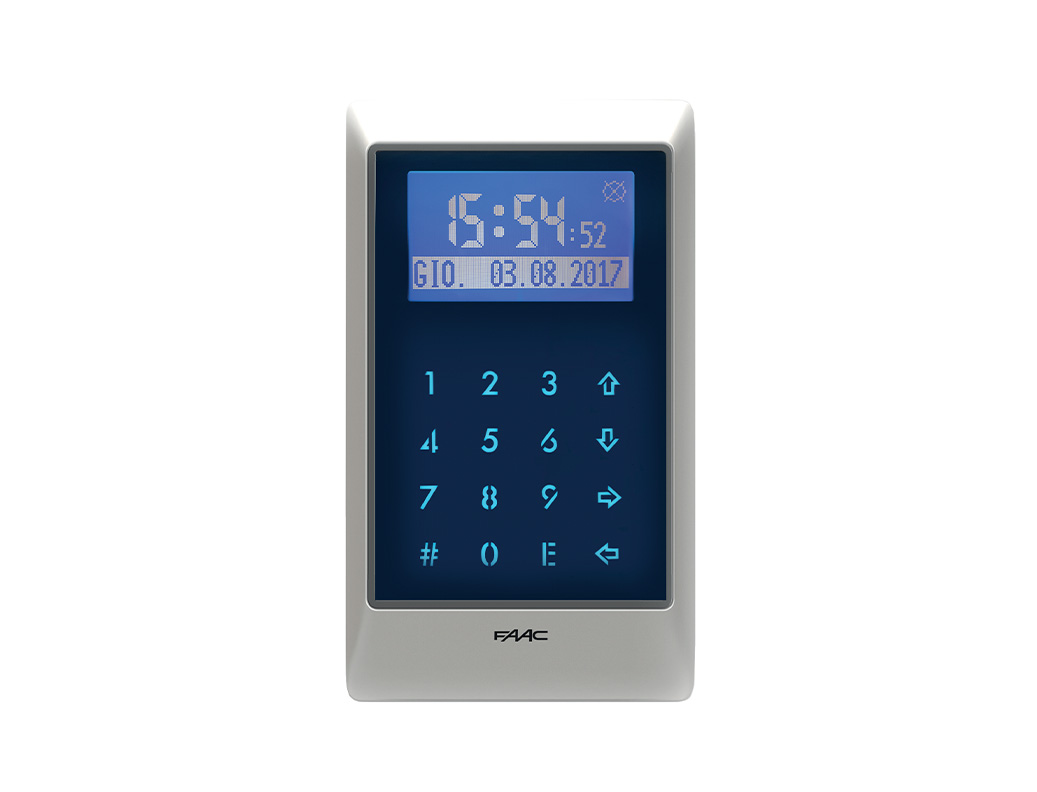

    Proximity reader with integrated keypad and display

    XKPRD

    • Type: passive proximity, keypad

    • Installation: wall

    • 3" graphic display with messages configurable from Keydom software
    • Connection with FAAC proprietary SPINET BUS
    • Available in 125 KHz or 13.56MHz Mifare versions
    • Plastic capacitive keypad 16 keys with backlighting
    • IP 54
    • Also suitable for presence detection (in dual antenna version)
    • Equipped with graphic display for display of date, time and customized messages
    FAAC XKPRD Pedestrian Gates Proximity Reader

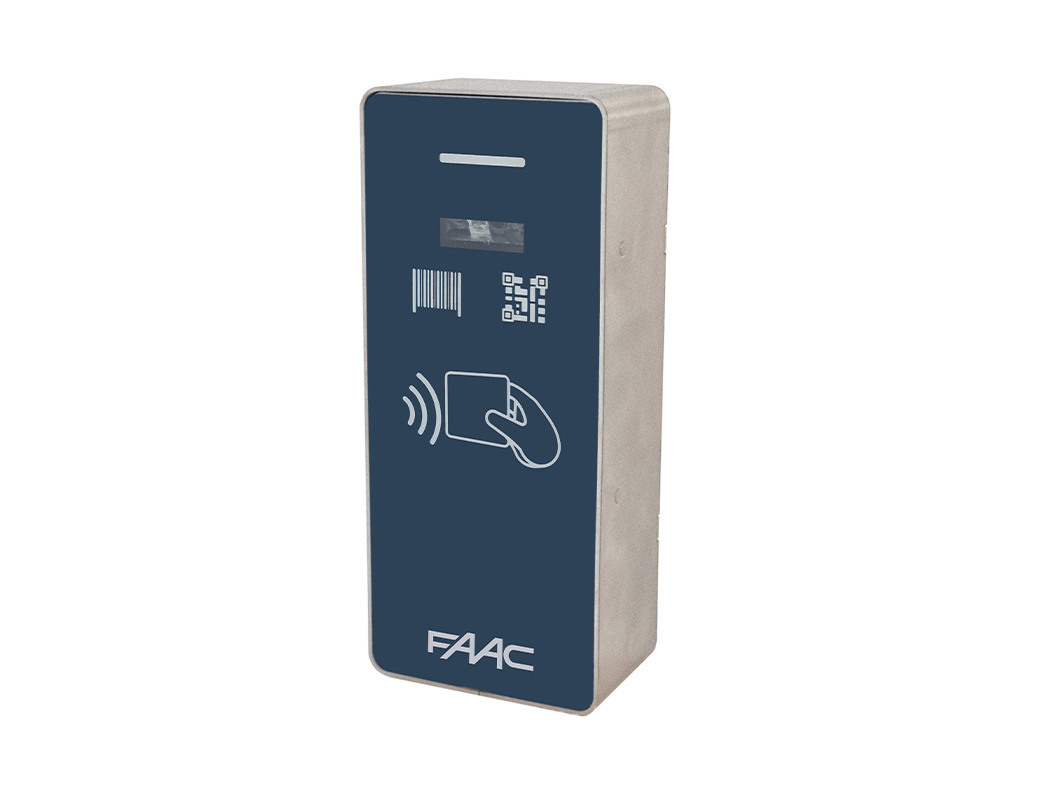

    Barcode qr code and proximity reader

    XKCP

    • Type: barcode reader, QR code, passive proximity

    • Installation: wall-mounted or column-mounted

    • Stainless steel housing with outdoor installation capability
    • Accurate imaging with better readout than linear scanners
    • Digital imaging technology, with no moving parts, providing improved product reliability
    • Built-in proximity reader (125KHz or Mifare)
    FAAC XKCP Pedestrian Gates Proximity Reader

    Proximity reader

    XKMR

    • Type: Mullion Reader - Mini reader

    • Installation: wall or door post

    • Mini Reader for installation on door pillar
    • Vandalism protection
    • Proximity reader with 13.56MHz or 125KHz frequency
    • Material: ABS
    • IP65 grade
    • Wiegand protocol for connection to Door Controller
    • Operating temperature: -20°C to +70°C
    FAAC XKMR Pedestrian Gates Reader

    Accessories for pedestrian gate readers

    Desktop ticket printer

    ST-STA-AUT

    FAAC ST-STA-AUT Desktop Ticket Printer
    • Desktop printer for issuing tickets using the Keydom platform
    • To be connected to PC via USB connection
    • Useful for ticket printing at reception or check-in desk

    Desktop proximity reader

    LE-EM-TAST

    FAAC LE-EM-TAST Table Proximity Reader
    • Designed to facilitate tag entry into the software archive by the title upload operator and users
    • 125 KHz and13.56 MHz MIFARE reading technology
    • Connection to PC via USB
