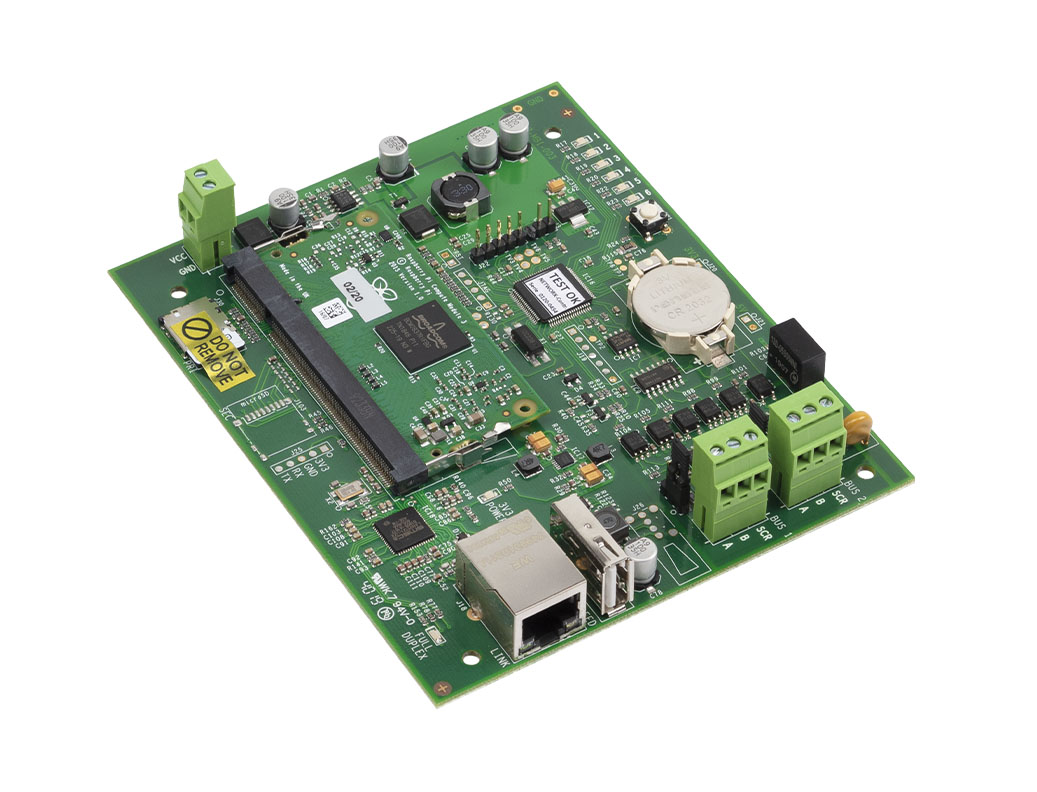

    Central Plant Management Unit "Network Controller" with Keydom Software preinstalled

    NETWORK CONTROLLER

    • The "Network Controller" control unit is the data concentrator, it is based on SOM System-On-Module, powerful and compact, Keydom software resides in it and is configurable via Browser;
    • System architecture with embedded software, requires no software installation as it is preinstalled and included in the Network Controller;
    • The application is entirely web based and is conveniently configurable via a browser on any device connected to the system;
    • RS485 and LAN ports for maximum flexibility in wiring and possible reuse of existing wiring;
    • Manages up to 200,000 users (expandable with Enterprise version);
    • Available in two versions:
      Network 3, for small installations and to manage up to 3 gates;
      Network 32, for managing installations with up to 32 Varchi.
    FAAC Network Controller Management Centre System

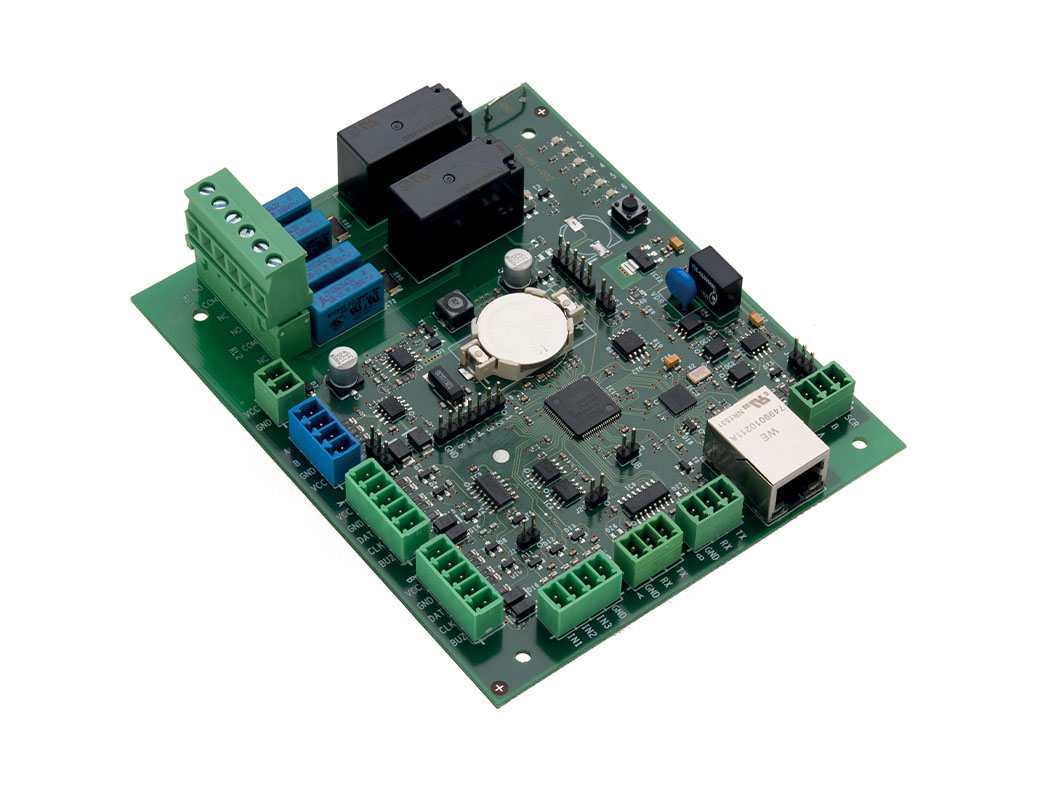

    DOOR CONTROLLER gate control center for controlling and connecting vehicular and pedestrian gates

    DOOR CONTROLLER

    • Single central unit for any type of gateway to be controlled (pedestrian or vehicular)
    • Manages a bidirectional (entry/exit) pedestrian or vehicular gateway
    • DOOR CONTROLLER gate control unit is designed to be able to realize all gate connections (input/output) in a simplified way by optimizing wiring works
    • It manages readers with multiple communication protocols to provide maximum flexibility of choice and extreme scalability of the system
    • Some features:
      • 2 relay outputs expandable up to 6 outputs with dedicated expansion card
      • 3 inputs expandable up to 7 inputs with dedicated expansion card
      • Spinet, RS232, Wiegand and Magnetic Stripe ports for connecting any type of reader
    • Manages up to 200,000 users and 8,000 events offline
    FAAC Door Controller Gate Control Unit

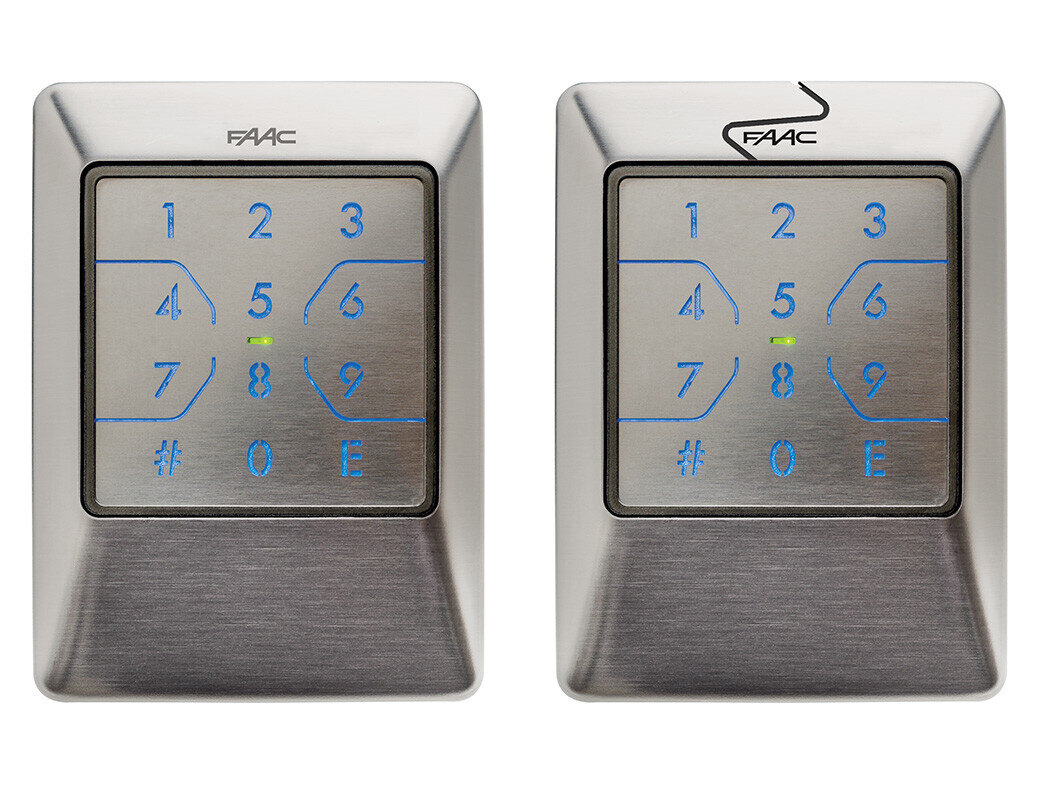

    Proximity reader with integrated keypad

    XKPR

    • Type: passive proximity + keypad

    • Installation: wall-mounted or column-mounted

    • Compact, solid and slim design for any architectural context
    • Aluminum case and steel cover
    • Buzzer and bi-color Led (red & green)
    • Connection with FAAC proprietary SPINET BUS;
    • Available in 125 KHz or 13.56MHz Mifare version
    • Backlit metal keypad
    • IP 54
    FAAC XKPR Pedestrian Gates Proximity Reader
    FAAC Security and Access Control Catalogue

    Do you want to find out about all of FAAC's access control solutions?

    Download Catalog
