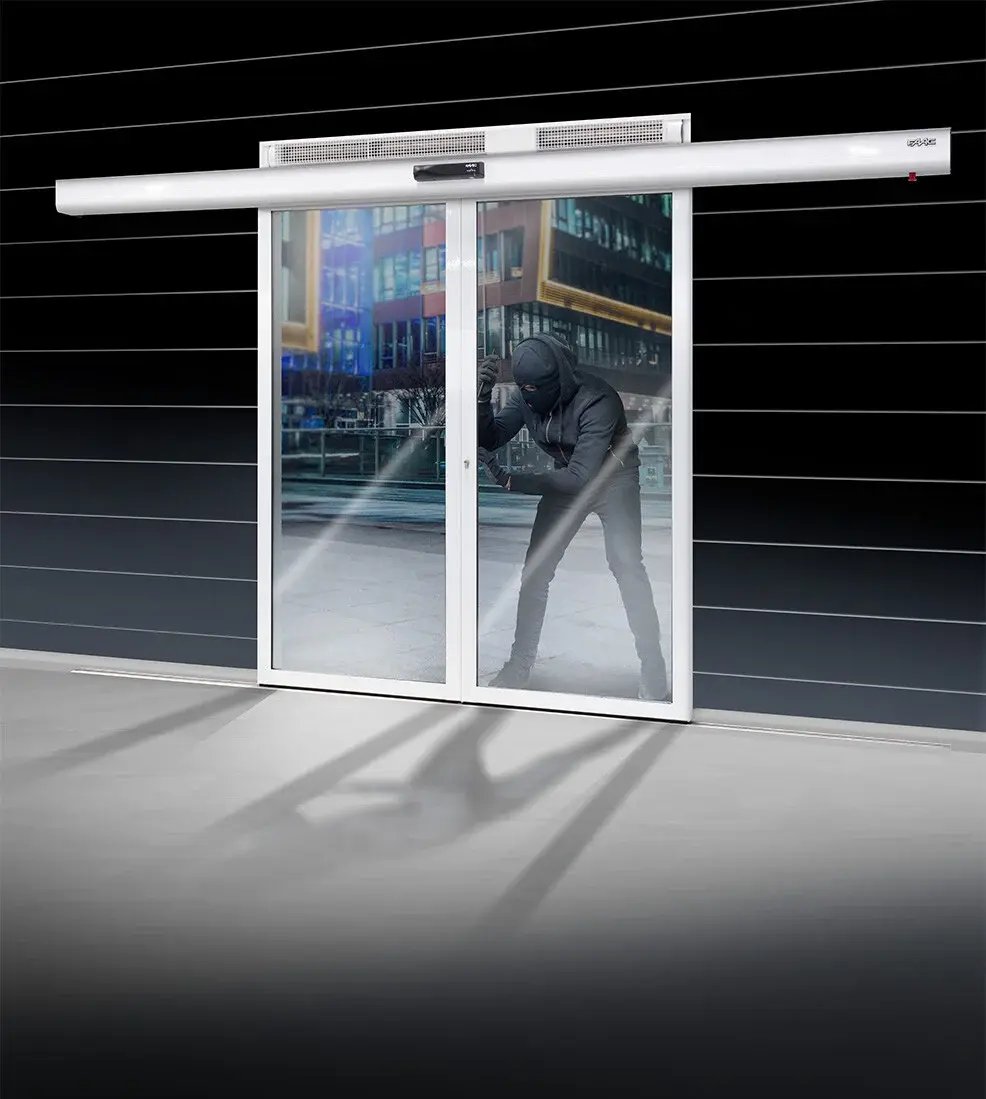

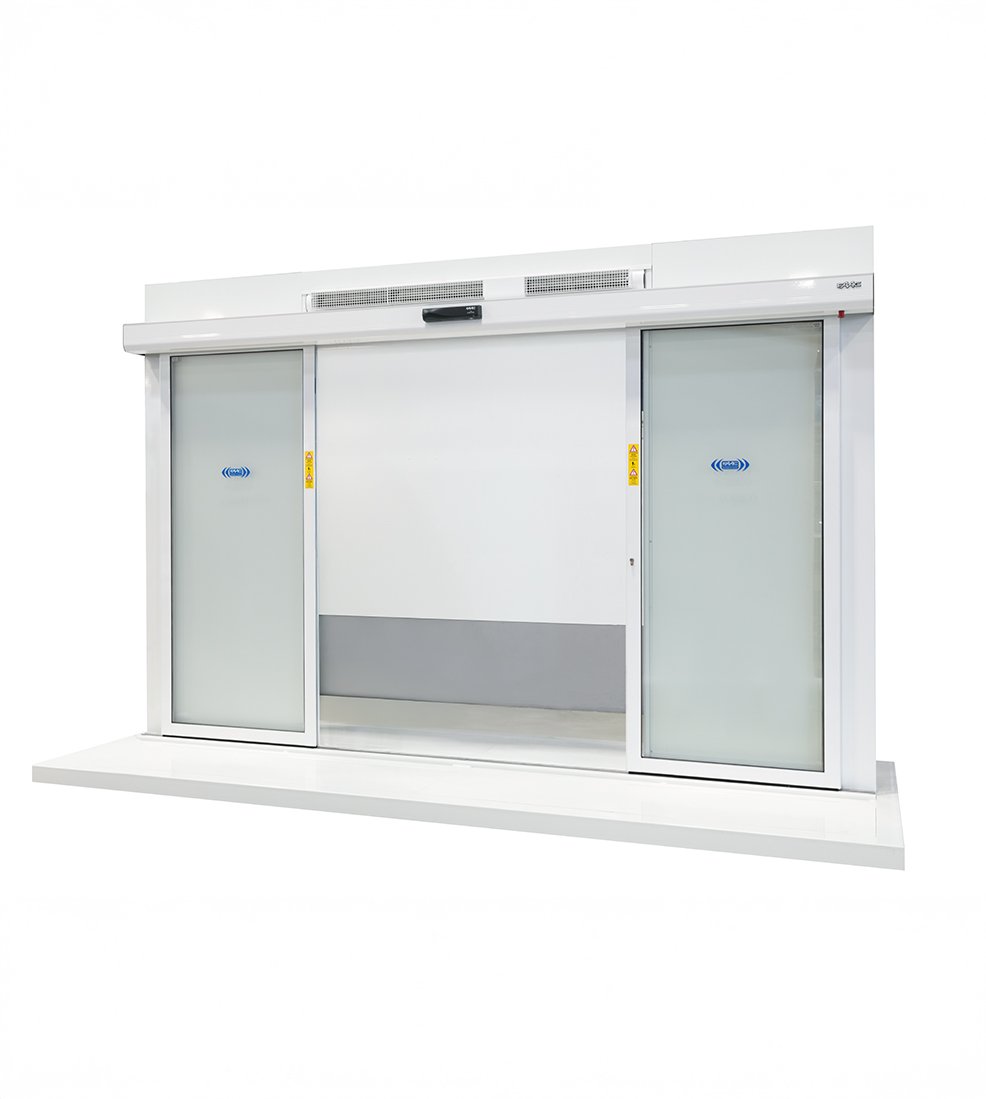

TK35 RC 3Automatic Burglar-Proof Entrance with Built-in Air Curtain
Complete automatic door consisting of a robust self-supporting extruded aluminium frame with 35 mm profiles, featuring a special anti-intrusion profile.
Shatterproof glazing in class P5A from 44.6/10/33.2, on request, with low-emission characteristic, or in class P6B from 66.8-6-33.2.
Certified both with and without built-in air curtain.

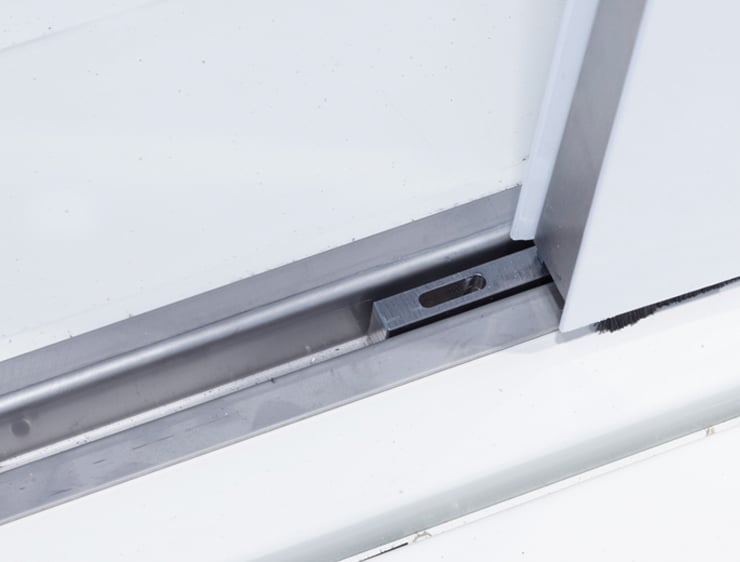

Flush-mounted stainless steel floor guide with continuous ground track across the entire width of the sliding doors.
Finishing of doors and structure by oxidation or painting in RAL colours.
Multi-point security lock system installed on the vertical uprights of the mobile doors.
Thermal and acoustic closure by perimeter brushes.
Door life cycle: 1 million cycles, which contributes to the overall sustainability of the product.
A continuous floor guide at the bottom of the door and a special tamper-proof device prevent door leaves from being forced open.
Certification EU
Class RC 3 certification in accordance with the European EN 1627 standard guarantees a high level of security against break-in attempts by experienced thieves using hand tools such as wedges,screwdrivers, pincers and crowbars.
Technical infos
Product infos TK35 RC 3
Manuals
File
/support/manuals-and-certificates
Catalogue
File
com/read/0006815783b95c2e8b95b
Other files:
FAAC TK35 RC 3 Brochure
AIRSLIDE
Sliding Door with Built-in Air Curtain
Sliding door with integrated air curtain Suitable for areas open to the public such as shops, supermarkets, offices, banks, hospitals,...
Support
Looking for technical documentation or original FAAC spare parts?
SAFEzone identifies FAAC's hydraulic and 230 V or 24 V electro-mechanical automation systems based on the latest electronic control cards and devices like the brand new SAFEcoder absolute encoder (a FAAC patent). These products permit the installation of new, fully compliant systems and the upgrading of older FAAC installations to comply with the latest standards without having to change the automation system itself.
GREENtech identifies FAAC gate automation systems that combine the latest generation of electronic control cards with innovative, patented mechanical components and devices.
Identifies the electronic board/automation compatible with optional modules that allow the automations to be controlled remotely. If the board is supplied as a standard component of an automation system, the product will be identified by this logo.
This marking indicates compliance with European Standard EN 16005, which regulates the safety of use for automatic pedestrian doors.
This marking indicates compliance with European Standard EN 1627, which relates to the resistance of doors, windows and similar products against forced entry.
