Sliding gate automation

C4000I 24V Concealed Gearmotor

Compact motor available in aluminium or steel columns of even extremely small dimensions (minimum 110 x 110mm)
More aesthetically pleasing gates
Smooth and silent movement
A FAAC patented BUS 2EASY Absolute Encoder limit stop system that does not require limit switches to be fixed to the rack, does not forget the position in the event of a power failure and that provides maximum obstacle detection accuracy
Simple and straight forward installation due to four adjustable fixing points and the rack-and-pinion meshing adjustment system
The C4000I can be operated via a key release system installed on the sides of the column or as an alternative, can be released remotely from outside the property

Max leaf weight 400 Kg
Max single leaf width 8 m
Max speed 16 m/min

Technical description Download

Innovation symbols 4

Focus on C4000I Sliding Gate Gearmotor

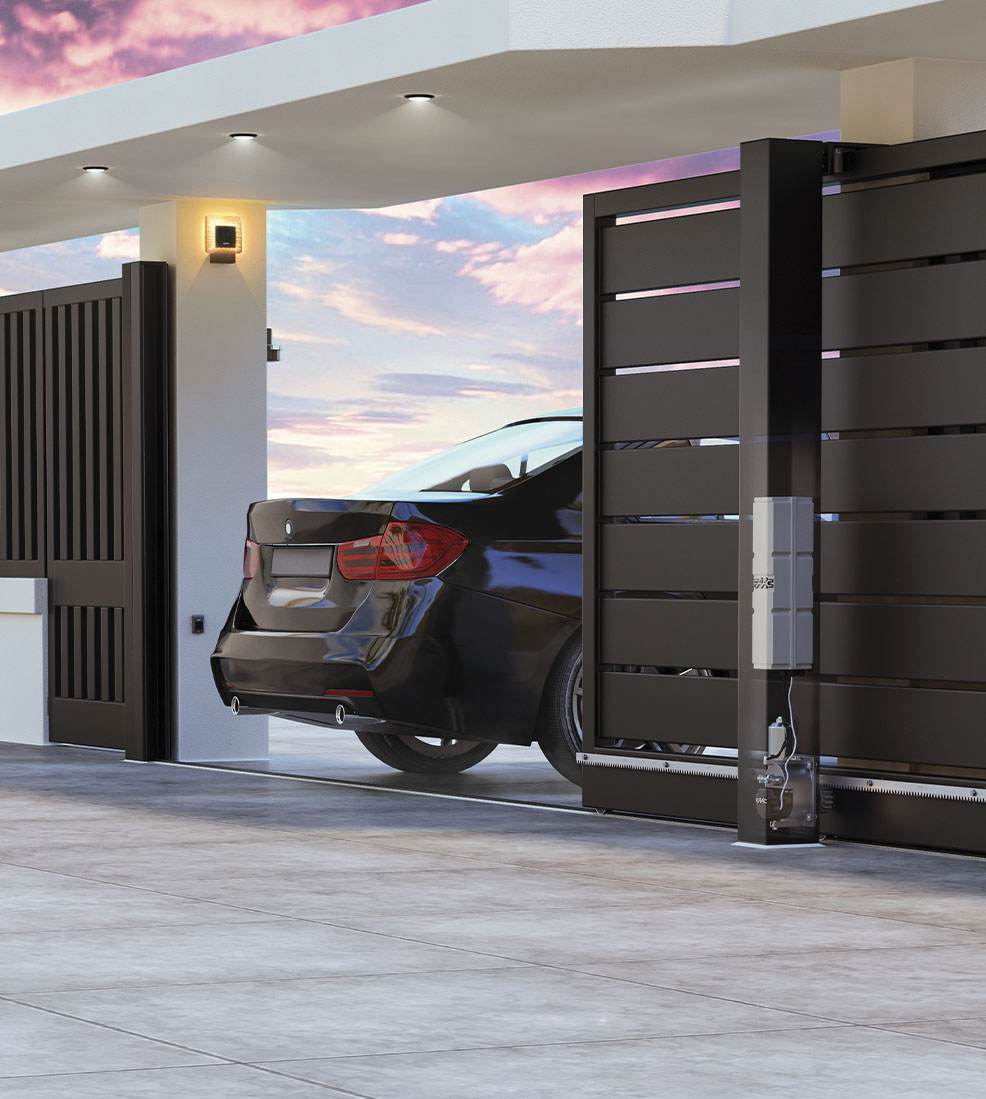

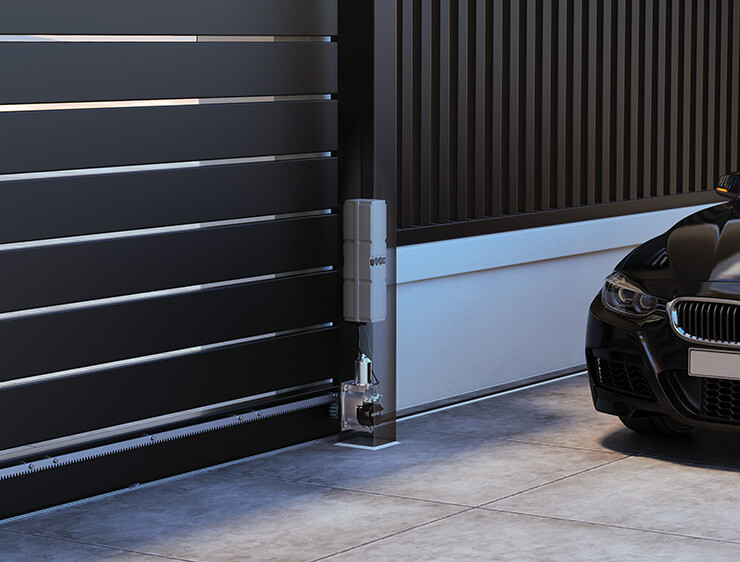

Invisible automation, more elegant gates

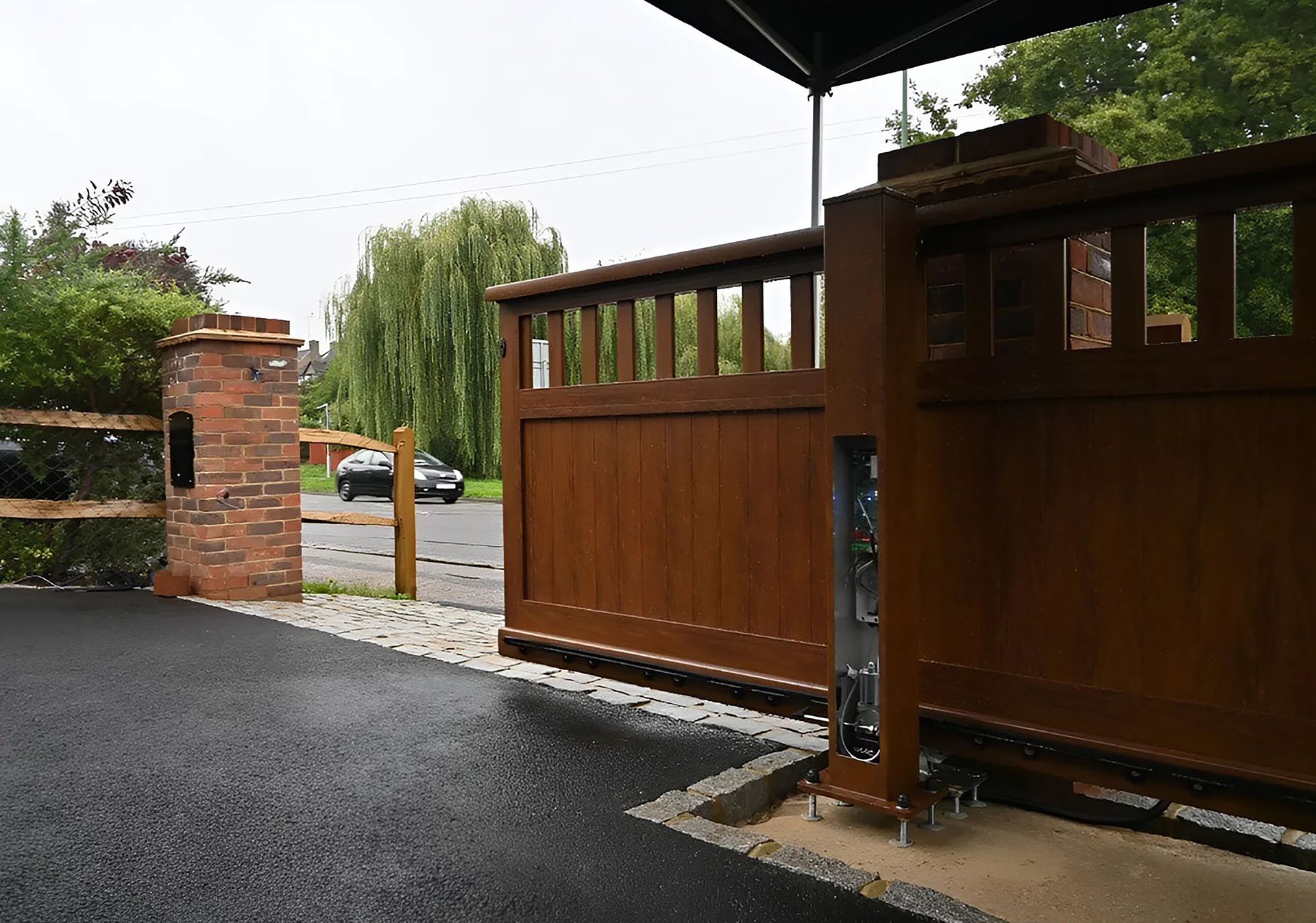

FAAC C4000I is the first gearmotor fully integrated into the post for sliding gates up to 400 kg and up to 8 meters in length.

Completely invisible, it allows you to automate your gate without compromising its design, ensuring discreet and elegant access.

FAAC C4000I also guarantees smooth and quiet operation, making it the ideal solution for residential settings.

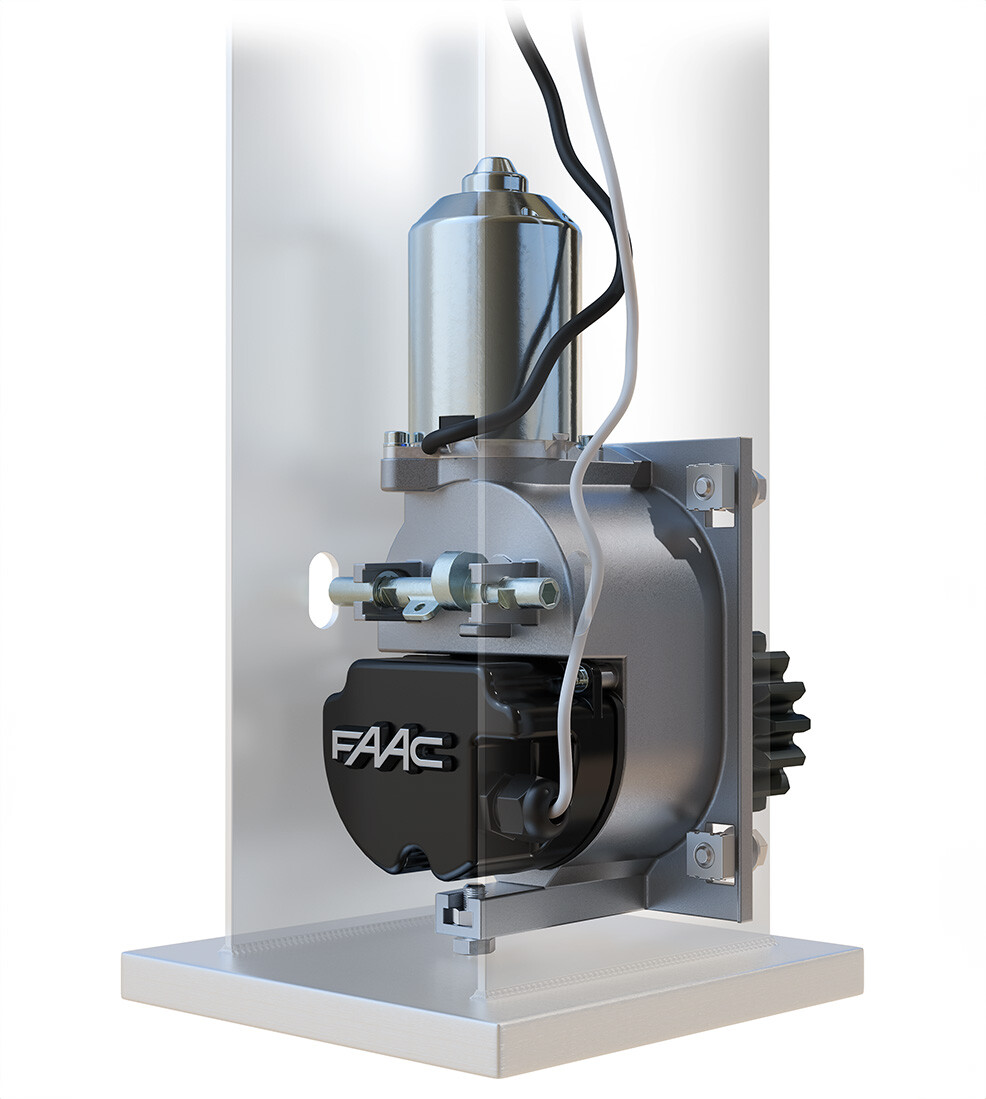

Compact motor, easy installation

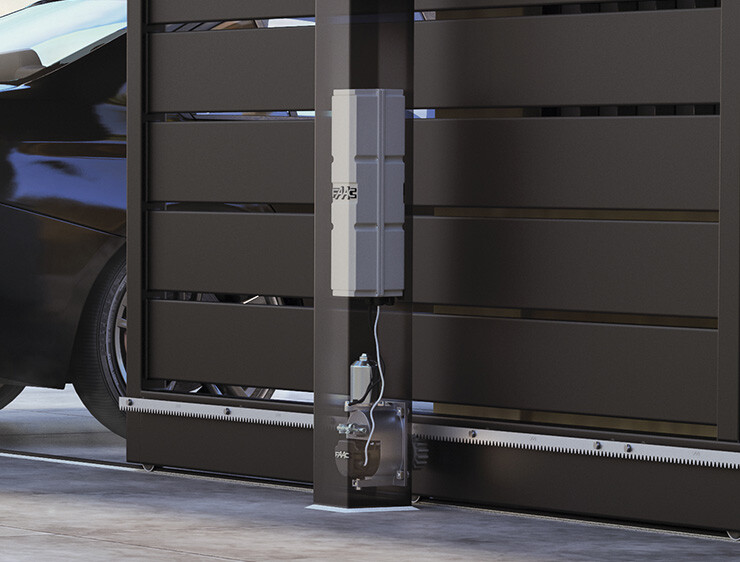

FAAC C4000I is a compact gearmotor that can be installed inside aluminum or steel posts, even with very small dimensions (minimum 110 x 110 mm).

Thanks to four adjustable fixing points and a rack-pinion coupling adjustment system, installation is simple and precise.

Technical infos

Product infos C4000I

Technical description

Model	Item code
C4000I	109001

Power supply voltage 220-240V ~ 50/60 Hz
Electric motor 24V DC
Max power 150W
Max leaf width 8 m
Max leaf weight 400 kg
Leaf speed 16 m/min
Type of use Residential
Column dimensions 110×110 mm (minimum internal dimension)

Download

Manuals

File /support/manuals-and-certificates

Catalogue

File com/read/000681578784bfd314d2b

Other files:

FAAC C4000I Brochure
