Automatic swing doors

A951 Internal Swing Door Automation

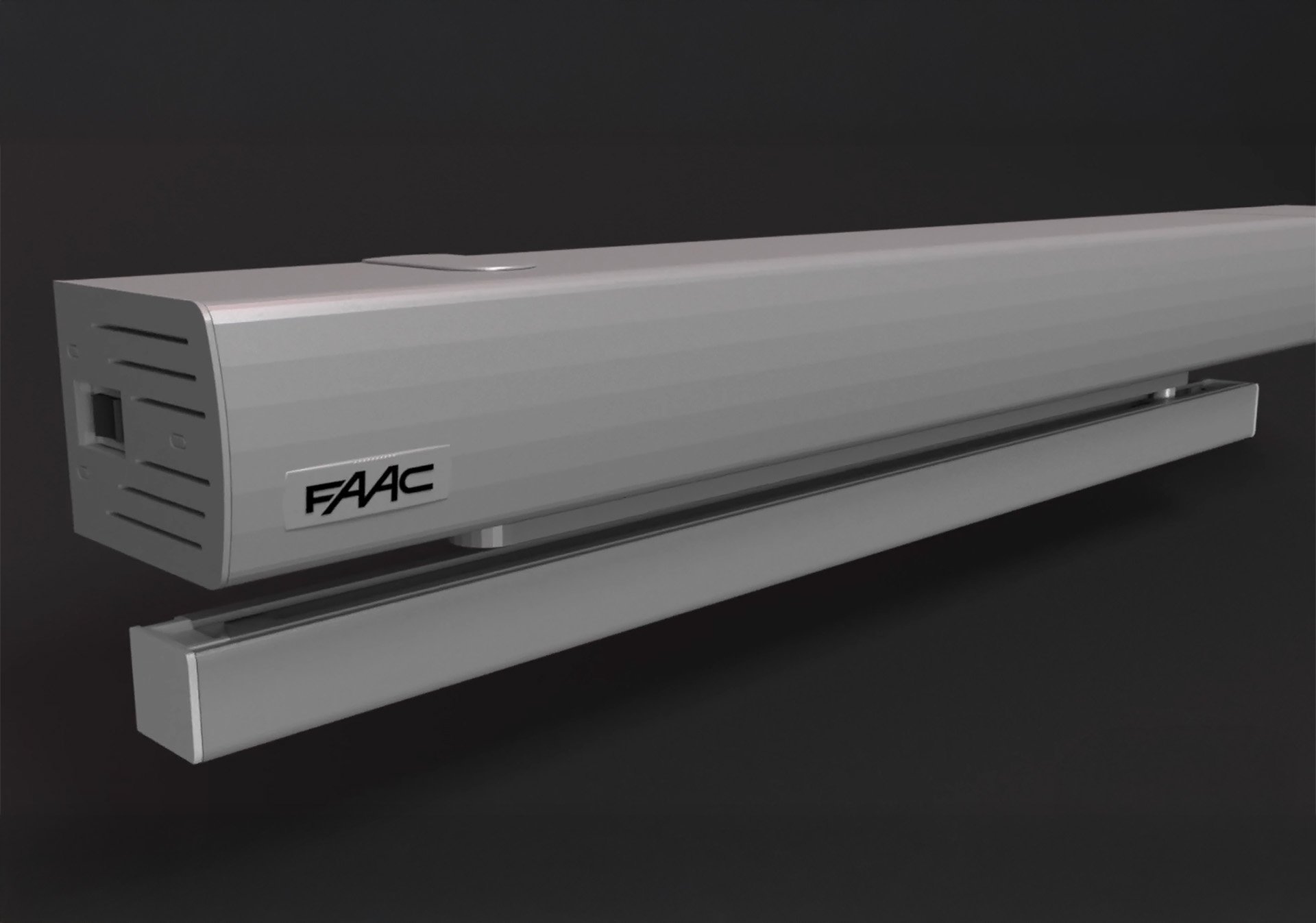

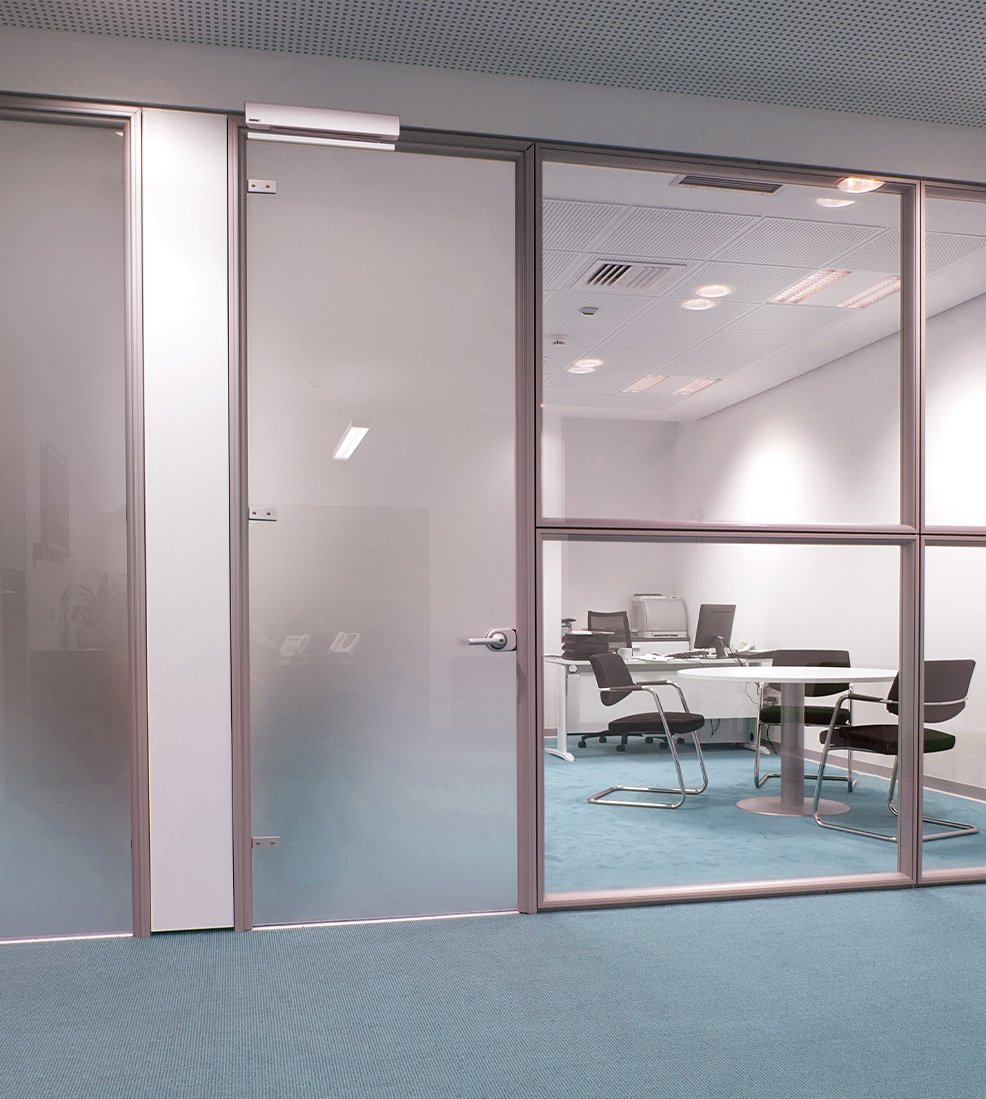

A951 operator opens and closes the internal door silently and smoothly.
The housing cover is in anodized extruded aluminium.
Manufactured in compliance with the new European safety standards EN16005; speed and forced are programmed depending on door dimensions.
Thanks to the accurate selection of mechanical and electronic components, the A951 automated system can silently drive leaves weighing 100 kg and1100-mm wide on continuous duty ensuring the absolute operating safety at any time.

Max leaf weight 100 Kg
Leaf length From 700 to 1100

Technical description Download

Innovation symbols 4

Gallery / Video

Watch the Product Video: FAAC A951

Example Installation: FAAC A951

Focus on A951 Swing Door Automation

Open and close in absolute comfort

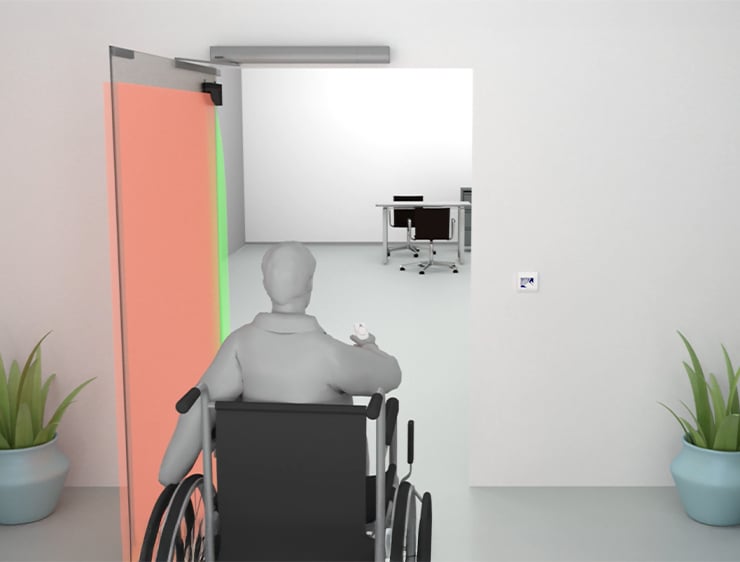

The A951 automated system controls door opening and closing with silent and smooth operation. It allows users to easily open doors via a button, sensor or a remote control. Thanks to the PUSH&GO function, just a touch completely opens the door.

Silent and low-energy consumption

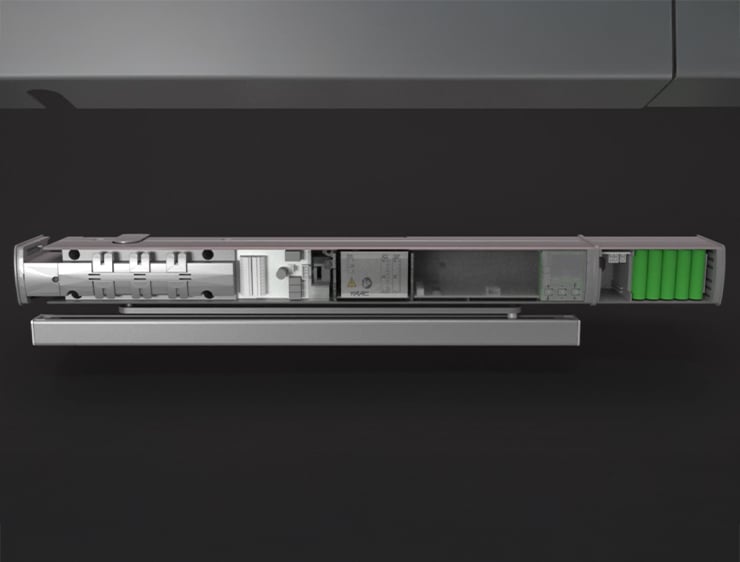

Thanks to the accurate selection of mechanical and electronic components, the A951 automated system can silently drive leaves weighing 100 kg and 1100 mm wide on continuous duty ensuring the absolute operating safety at any time offering significant energy savings both during stand-by and when operating.

Technical infos

Product infos A951

01

Technical description

Model	Description	Passage opening (mm)	Max leaf weight with articulated arm (kg)	Max leaf weight with sliding arm (kg)	Item code
A951	With electronic control unit function selector and anodised aluminium cover	700 ÷ 1100	100 Kg	100 Kg	105951

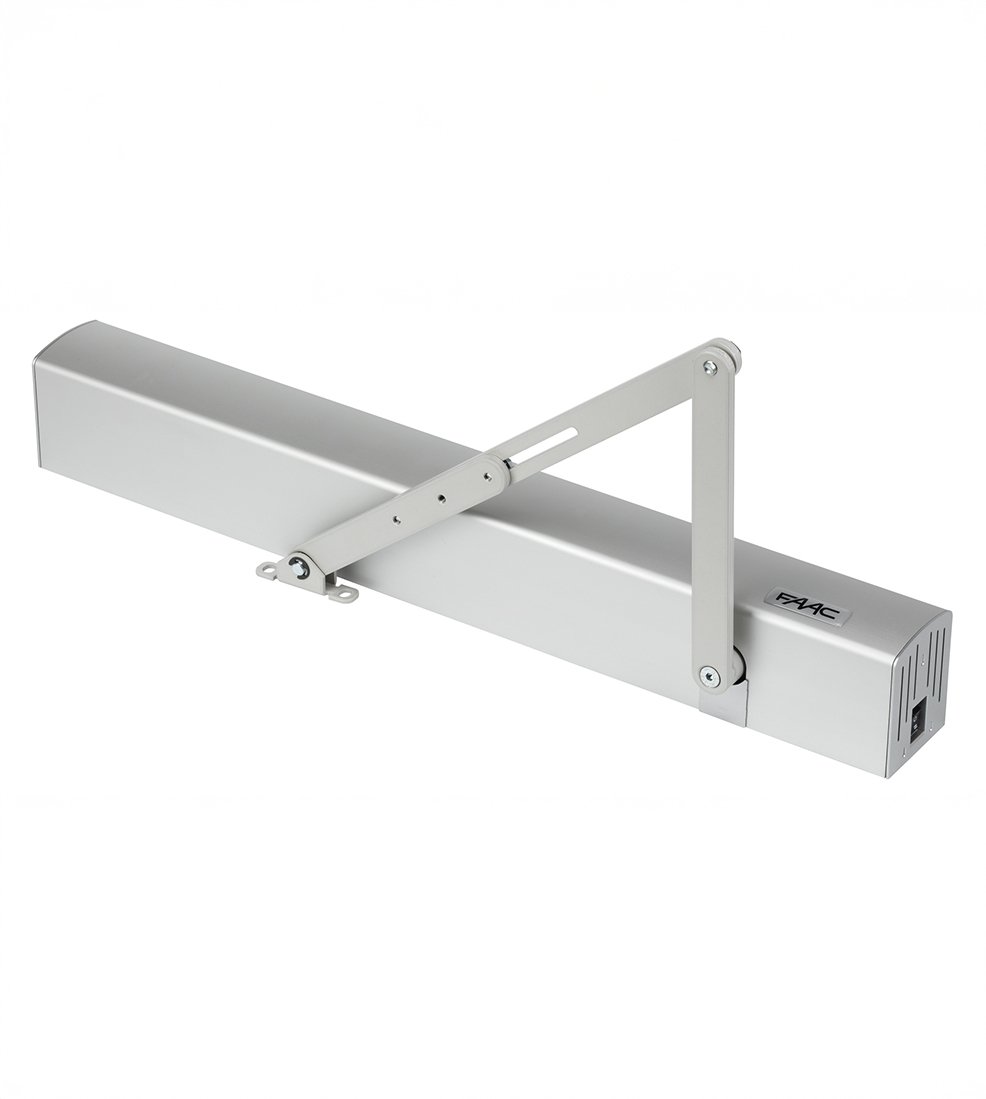

Arms	Sliding arm				390167
Arms	Articulated arm				390169
