950N2 Swing Door Automation

950N2 automation, compliant with EN16005, allows to move doors weighing more than 360 Kg silently and in continuous use.
The housing cover is made of silver anodized aluminum.

Max leaf weight From 286 to 367 Kg
Leaf length From 700 to 1400

Technical description Download

Innovation symbols 2

Gallery / Video

Watch the Product Video: FAAC 950N2

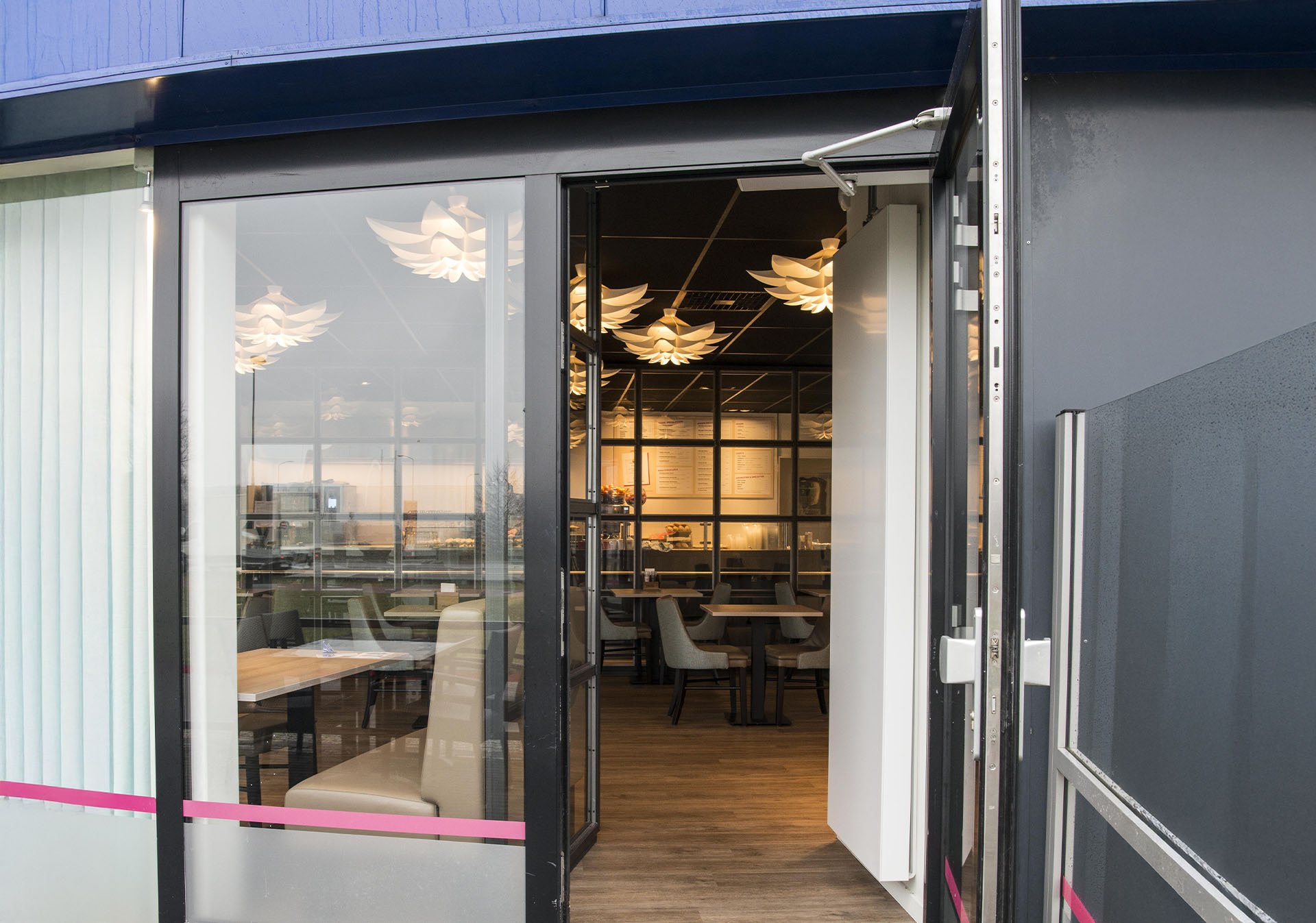

Example Installation: FAAC 950N2

Focus on 950N2 Swing Door Automation

Versatile and stylish

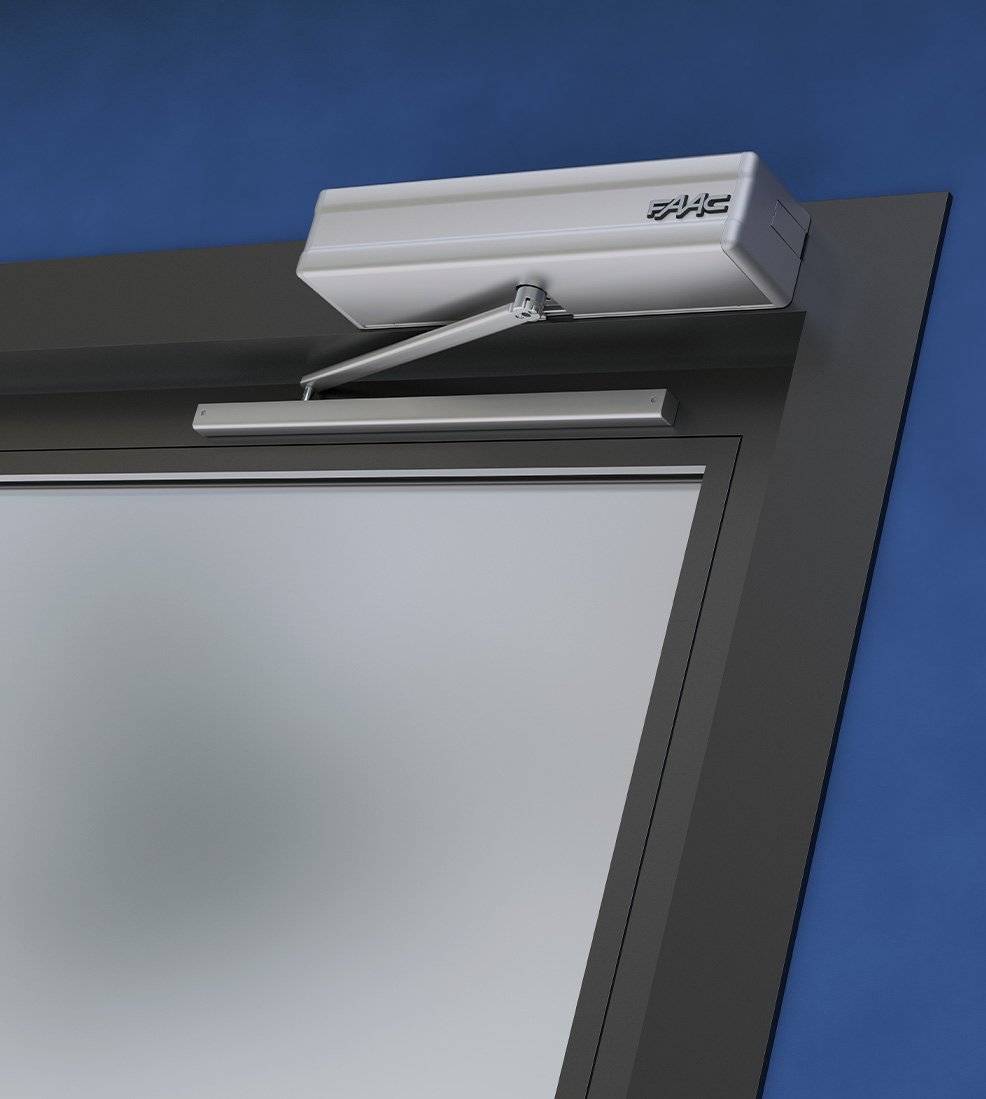

The FAAC 950N2 automations (with spring closing system) can be installed both on the architrave and directly on the structure of the door. The innovatively designed housing cover can be supplied in anodised extruded aluminium or moulded ABS.

The 950N2 automations can also be used to automate double-leaf entrances by setting up two units in a master / slave configuration allowing the double leaf to be moved as if by a single system.

Safe and intelligent

The automation system is equipped with two electronic boards: 950N2 MPS (control board) and 950N2 I/O (input/output board). A microprocessor controls all door activity in real time and a magnetic encoder continuously detects its angular position.

The operating logic (automatic, manual, night, open) can also be selected via an integrated selector. The system is manufactured in conformity with the new European Safety Standards.

The speed and force are programmed according to the dimensions of the door. If an obstacle is detected, the door re-opens immediately and as it closes, it checks, at reduced speed, that the obstacle is no longer present.

Technical infos

Product infos 950N2

01

Technical description

Model	Description	Passage opening (mm)	Max leaf weight with articulated arm (kg)	Max leaf weight with sliding arm (kg)	Item code
950N2	With electronic control unit function selector and anodised aluminium cover	700 ÷ 1400	367 Kg - 700mm 92 Kg - 1400 mm	286 Kg - 700mm 71 Kg - 1400 mm	1054152
950N2	With electronic control unit, function selector and without cover casing	700 ÷ 1400	367 Kg - 700mm 92 Kg - 1400 mm	286 Kg - 700mm 71 Kg - 1400 mm	2050042

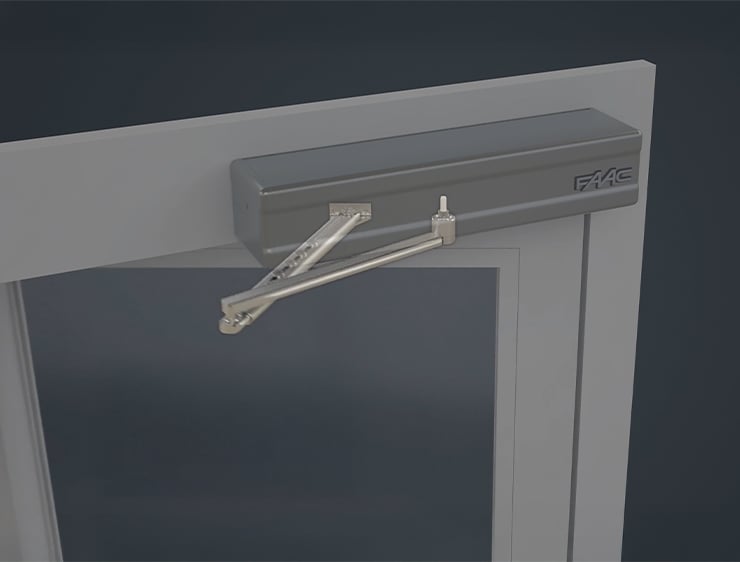

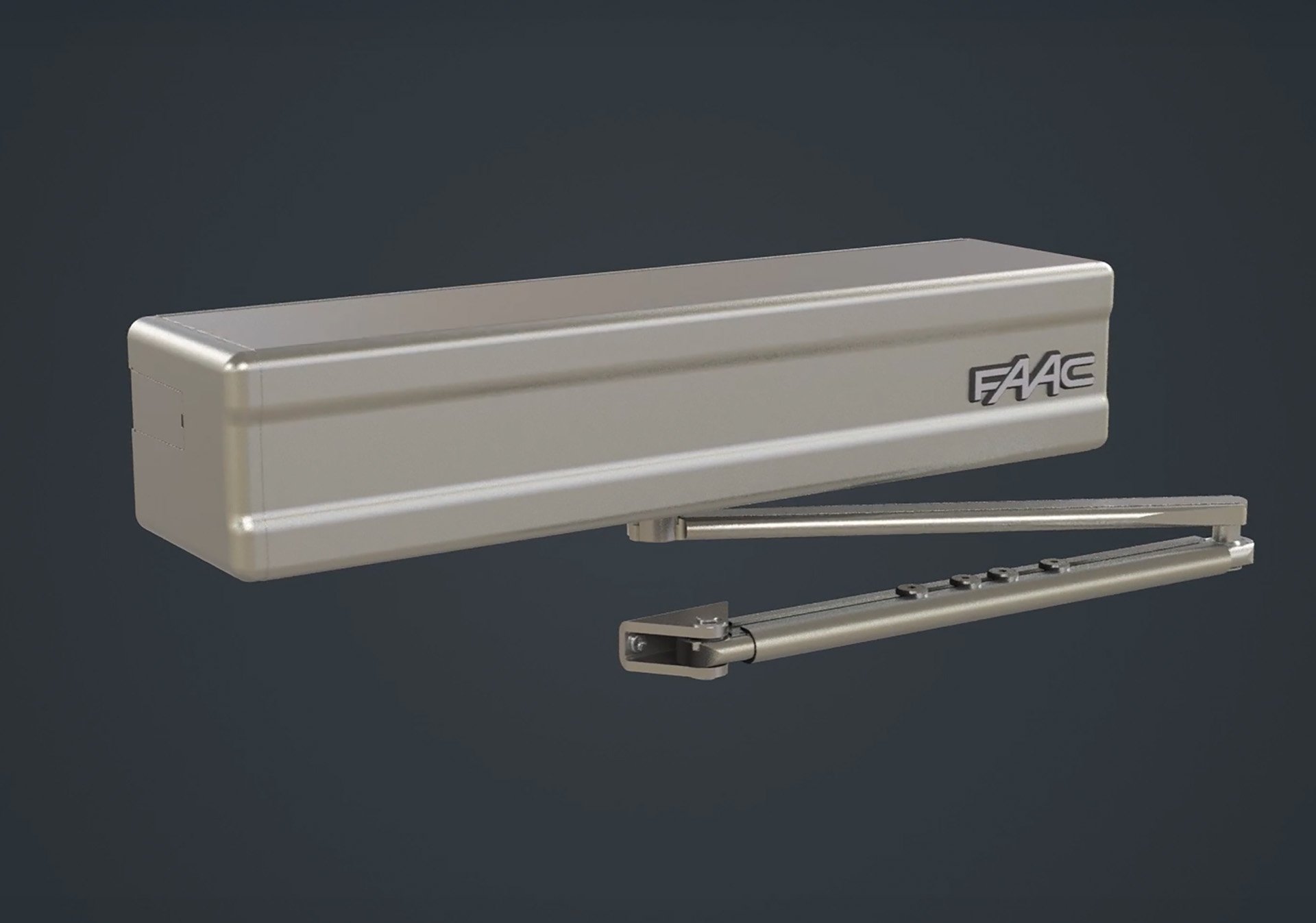

Arms	Articulated push arm				390039

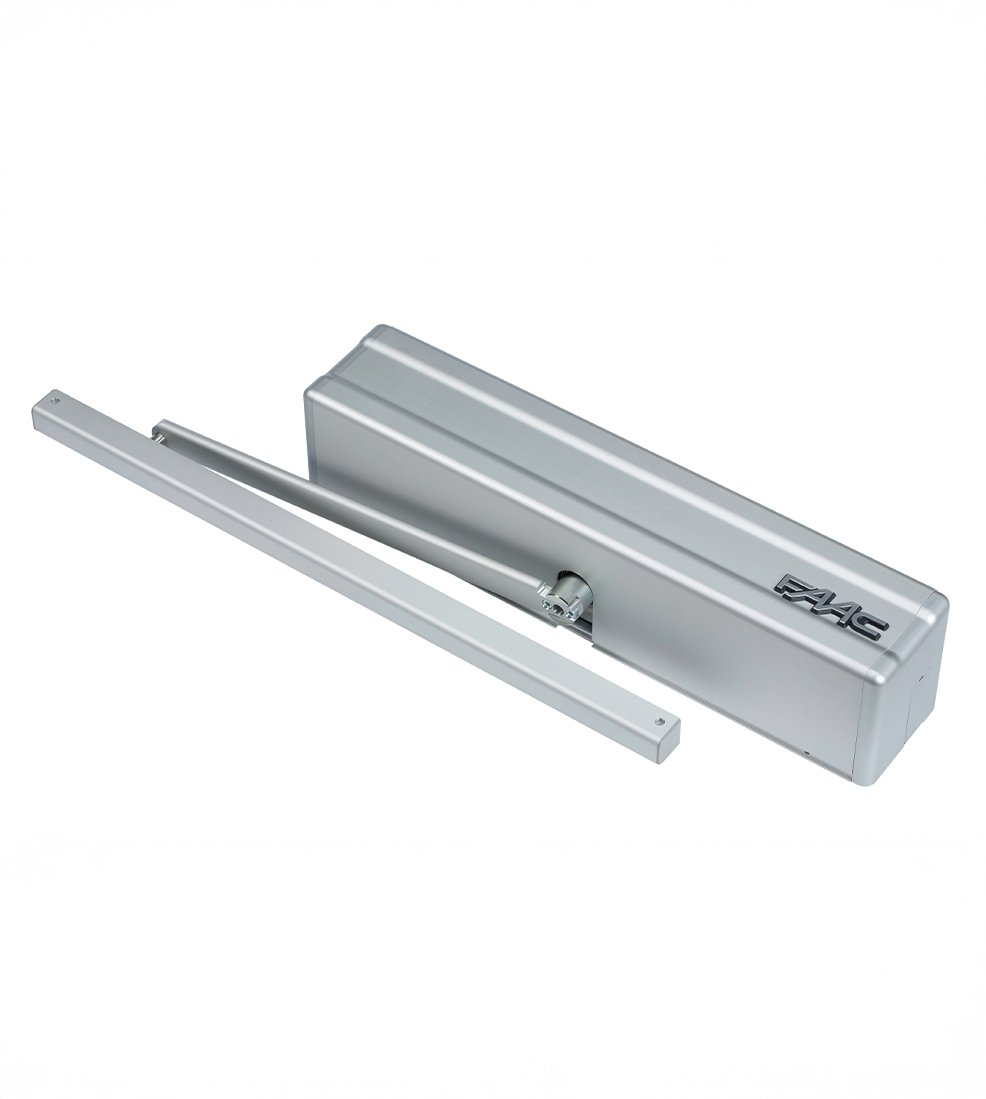

	Standard sliding block arm				390040
	Short sliding block arm				390041

Power supply voltage 220-240 V~ - 50/60 Hz
Electric motor Motor powered at 24V DC
Max power 100 W
Use frequency 100%
Opening and closing leaf time 4 ÷ 10 s (adjustable)
Protection sensor monitoring (EN16005) As standard (may be excluded)
Low energy movement (EN16005) As standard (may be excluded)
Compliance with regulations EN 16005; EN 61000-6-2; EN 61000-6-3; EN 13849-1; EN13849-2
