Swing gate automation

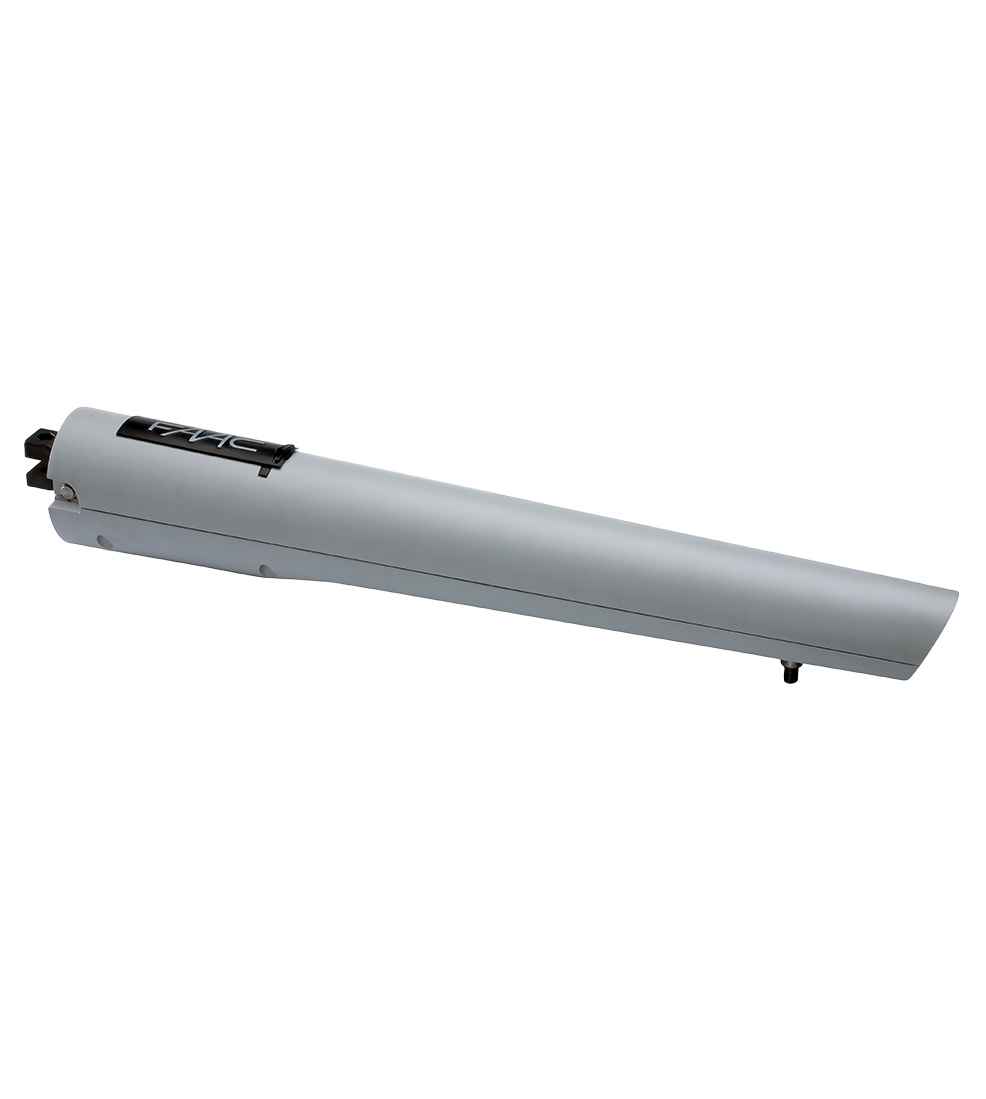

S418 24V Electromechanical Operator

Adjustable high speed
New "multi-position" fixing bracket for non-welded installation
Integrated opening and closing mechanical stops (possibility to avoid anti-crushing device installation).

Max single leaf width 2.3 - 2.7 m (with electric lock)
Use frequency Continuous use

Technical description Download

Innovation symbols 2

Gallery / Video

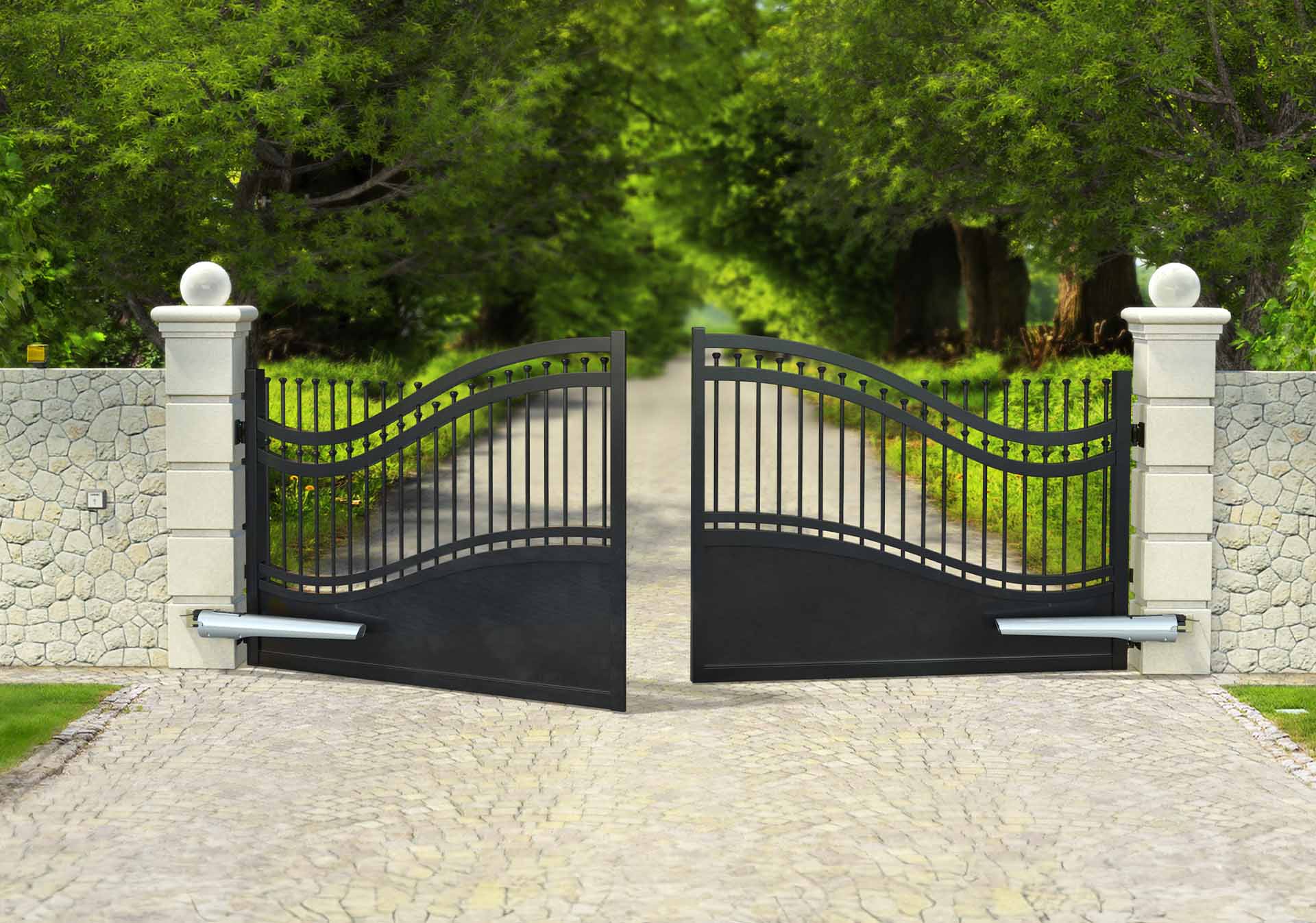

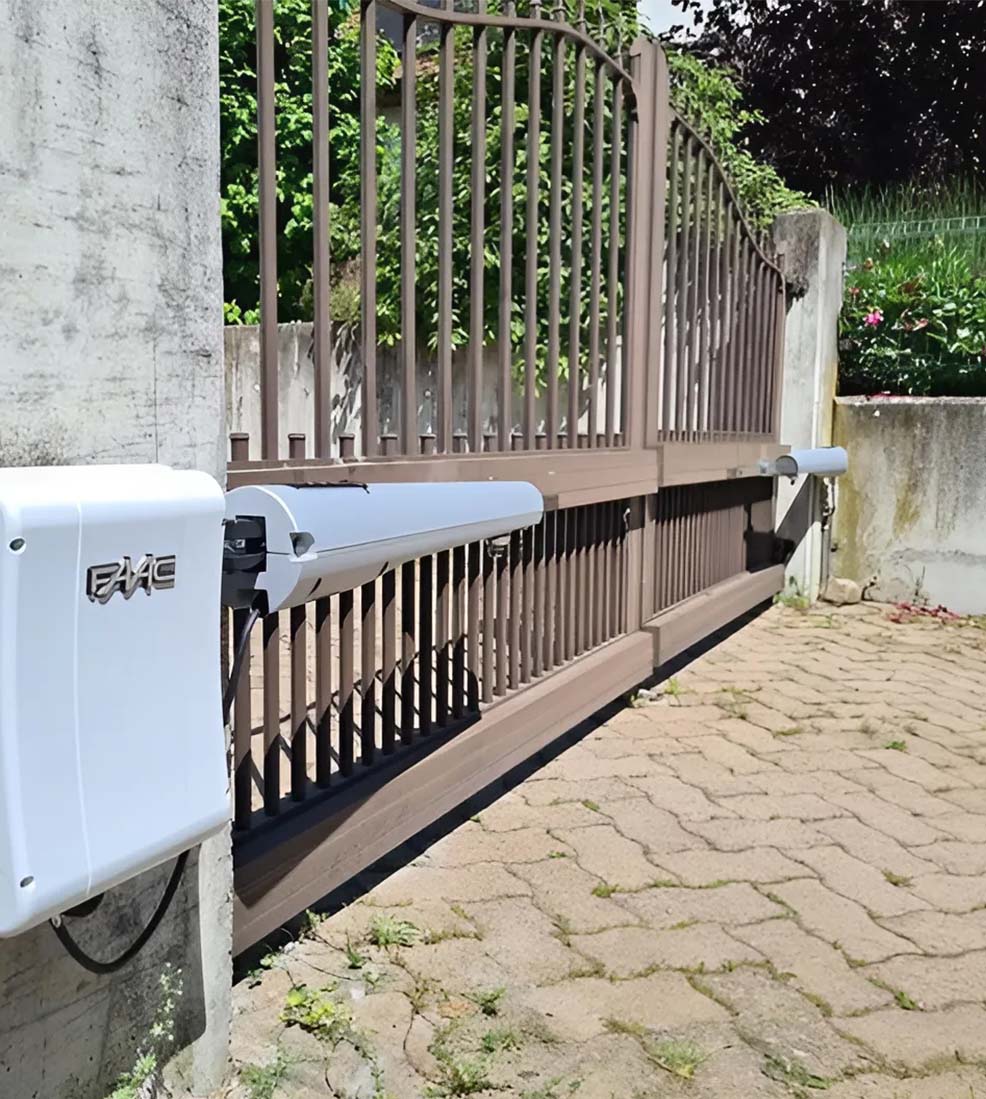

Example Installation: S418

FAAC S418 Swing Gate Electromechanical Operator

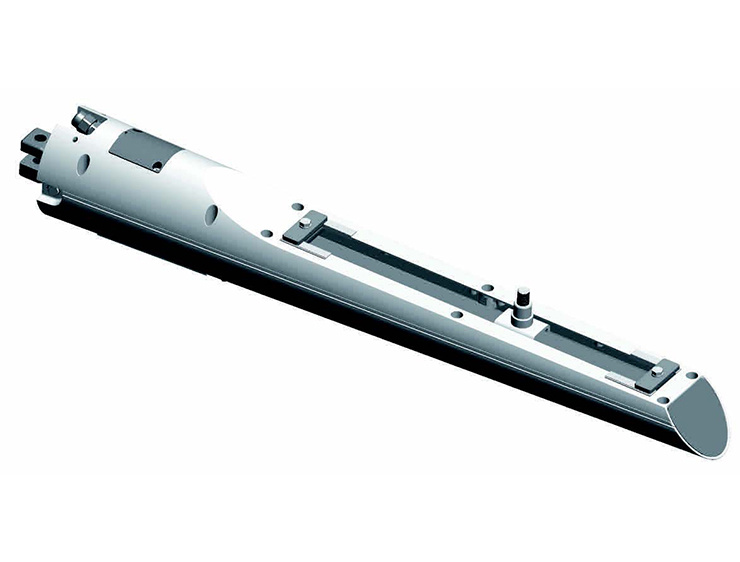

Focus on S418 Swing Gate Operator

Installation flexibility

Useful stroke of 350 mm (380 mm without mechanical stops) to ensure greater flexibility in selecting installation dimensions.

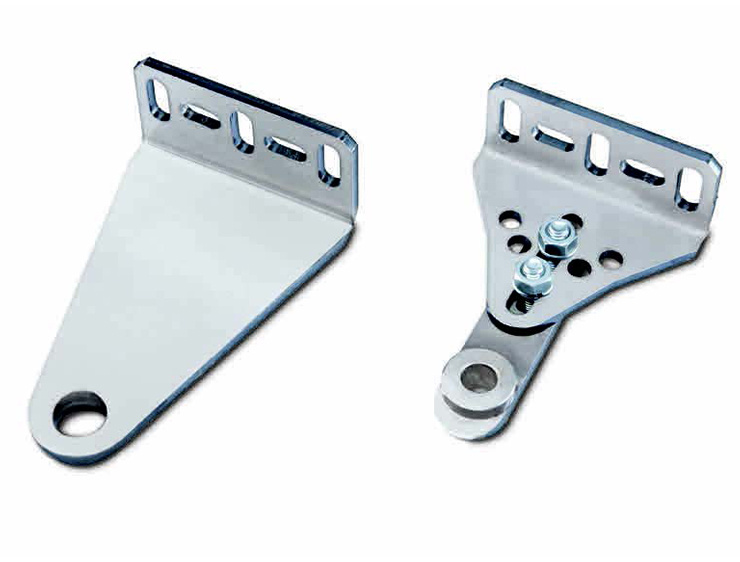

Adjustable fixing clips

Fixing clips can be adjusted to multiple positions without welding, allowing the automation system to easily adapt to different installation types.

Technical infos

Product infos S418

Technical description

Model	Item code
S418 24V	104301

Power supply voltage 220-240V ~ 50/60 Hz
Electric motor With brushes 24V DC
Max power 35W
Max leaf opening angle 110°
Use frequency Continuous use
Max leaf width 2.3 - 2.7 m (with electric lock)
