AG4000 Automatic Revolving Door

The FAAC AG4000 revolving door is expertly crafted to elevate entryway design with innovation, safety, and versatility.

The AG4000 transforms entrances into welcoming gateways, blending aesthetic appeal and performance to enhance any architectural vision, while maximizing efficiency.

Optimal protection against drafts, heat, and cold, with low standby consumption (<0.5 W).
TÜV certified system with safety edges and laser sensors, optimized stopping distances in compliance with UNI EN 16005.
Secure, monitored entry with integrated access control system.
Long-lasting, reliable, quiet, and smooth brushless motor.
Brand new selectors, safety sensors, accessories and LED lights.
Emergency breakout system for escape route, for rapid, safe evacuation with collapsible wings.

Technical description Download

Innovation symbols 3

Gallery / Video

Watch the product video: FAAC AG4000

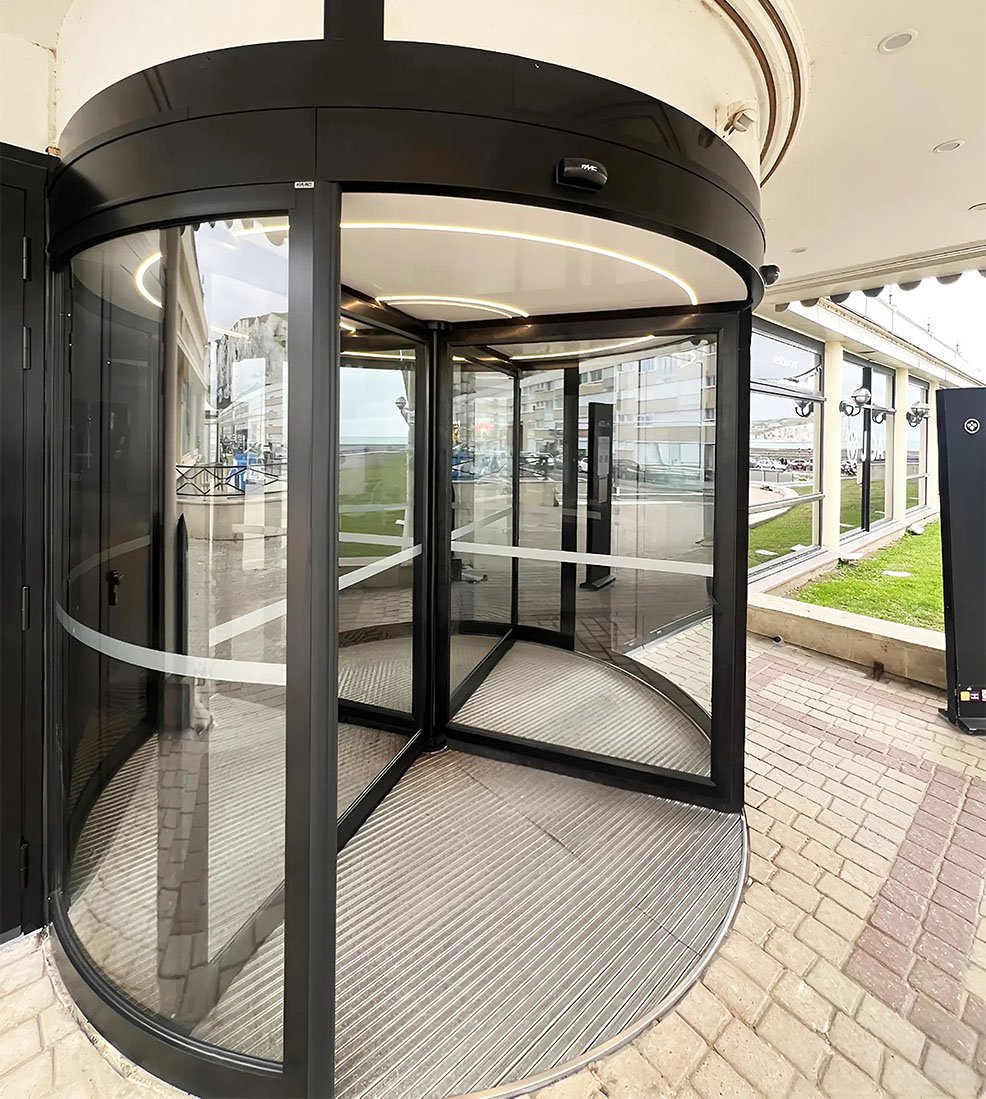

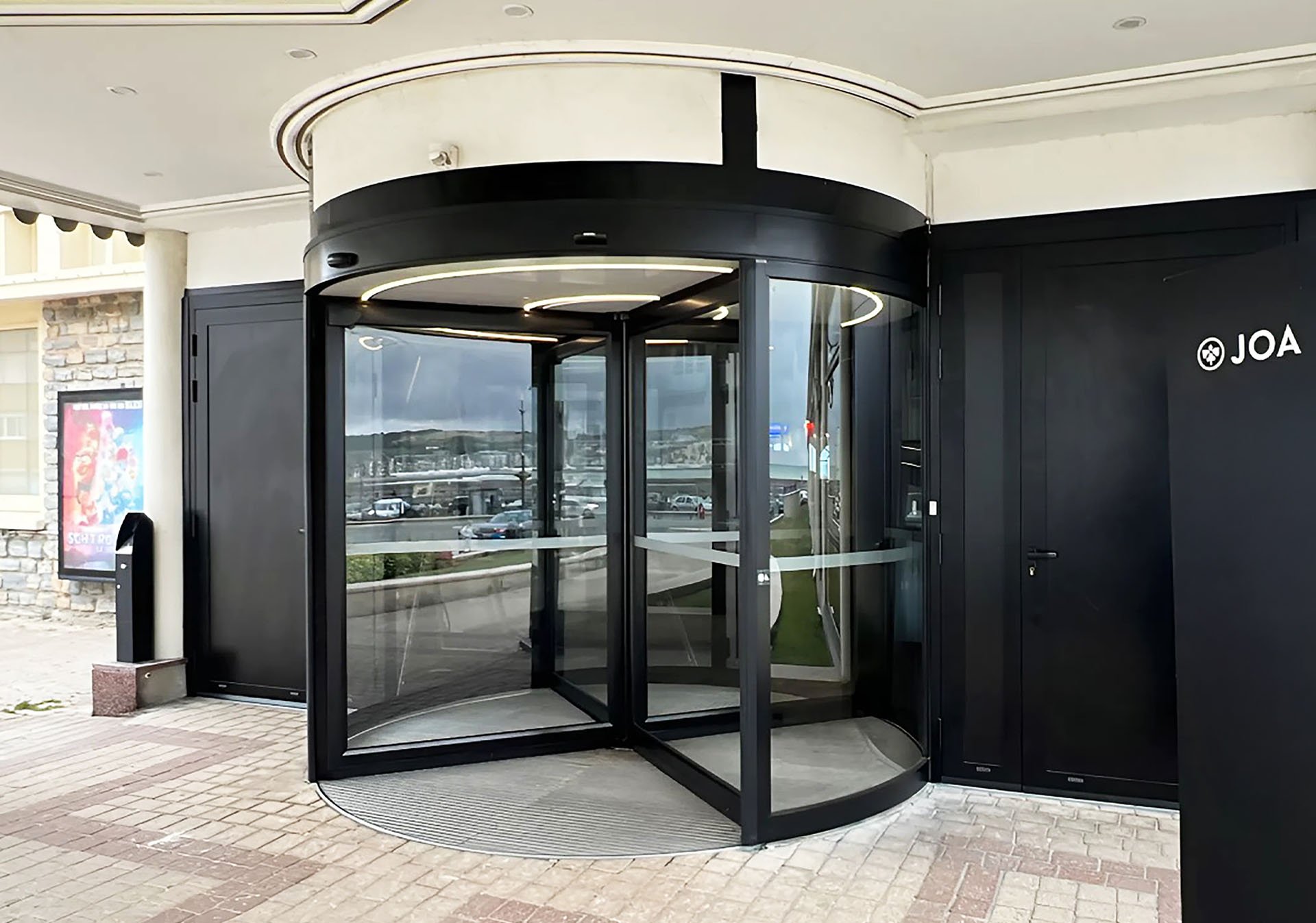

Installation example: FAAC AG4000

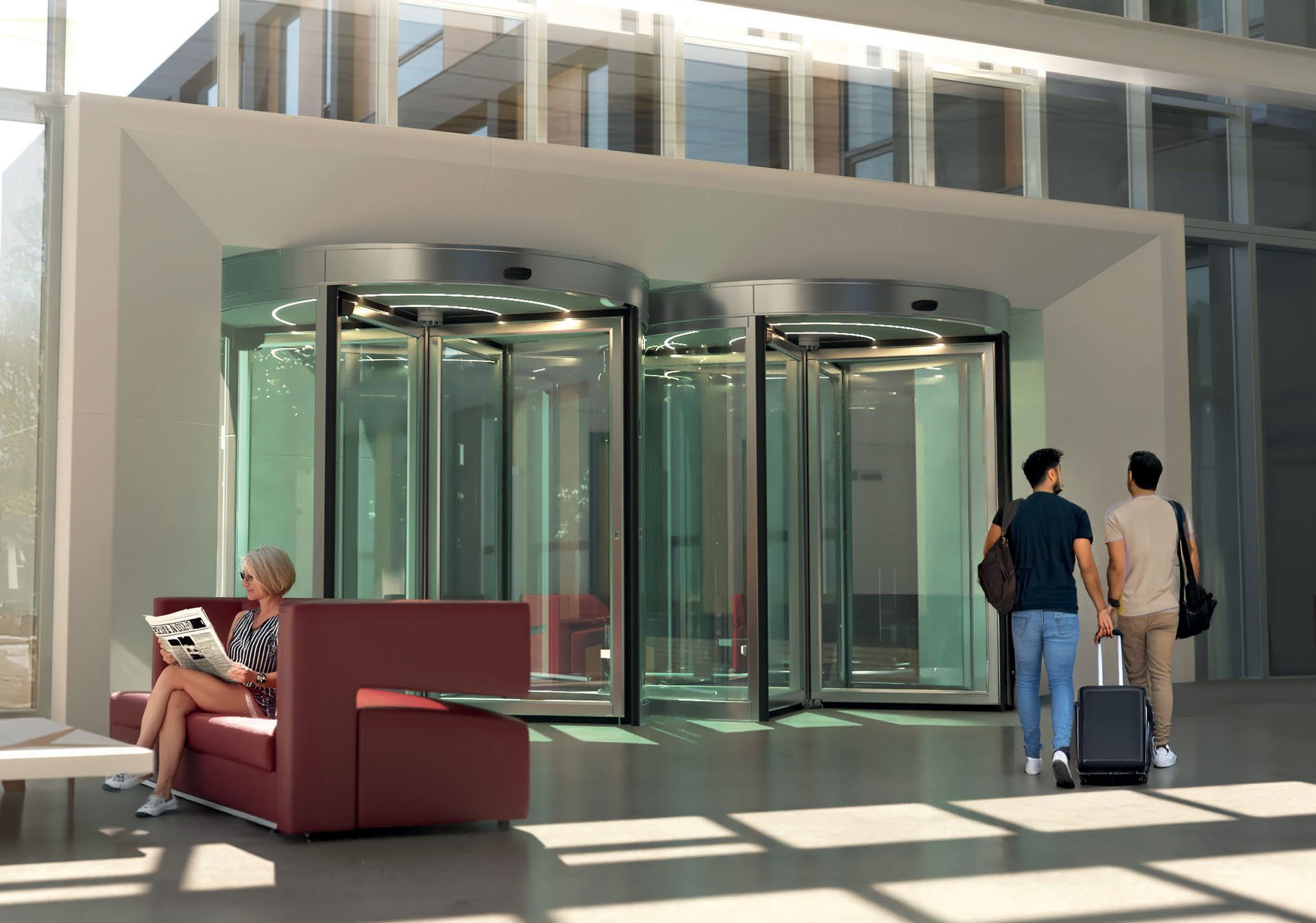

AG4000 for hotels and hospitality venues: an elegant solution for welcoming entrances.

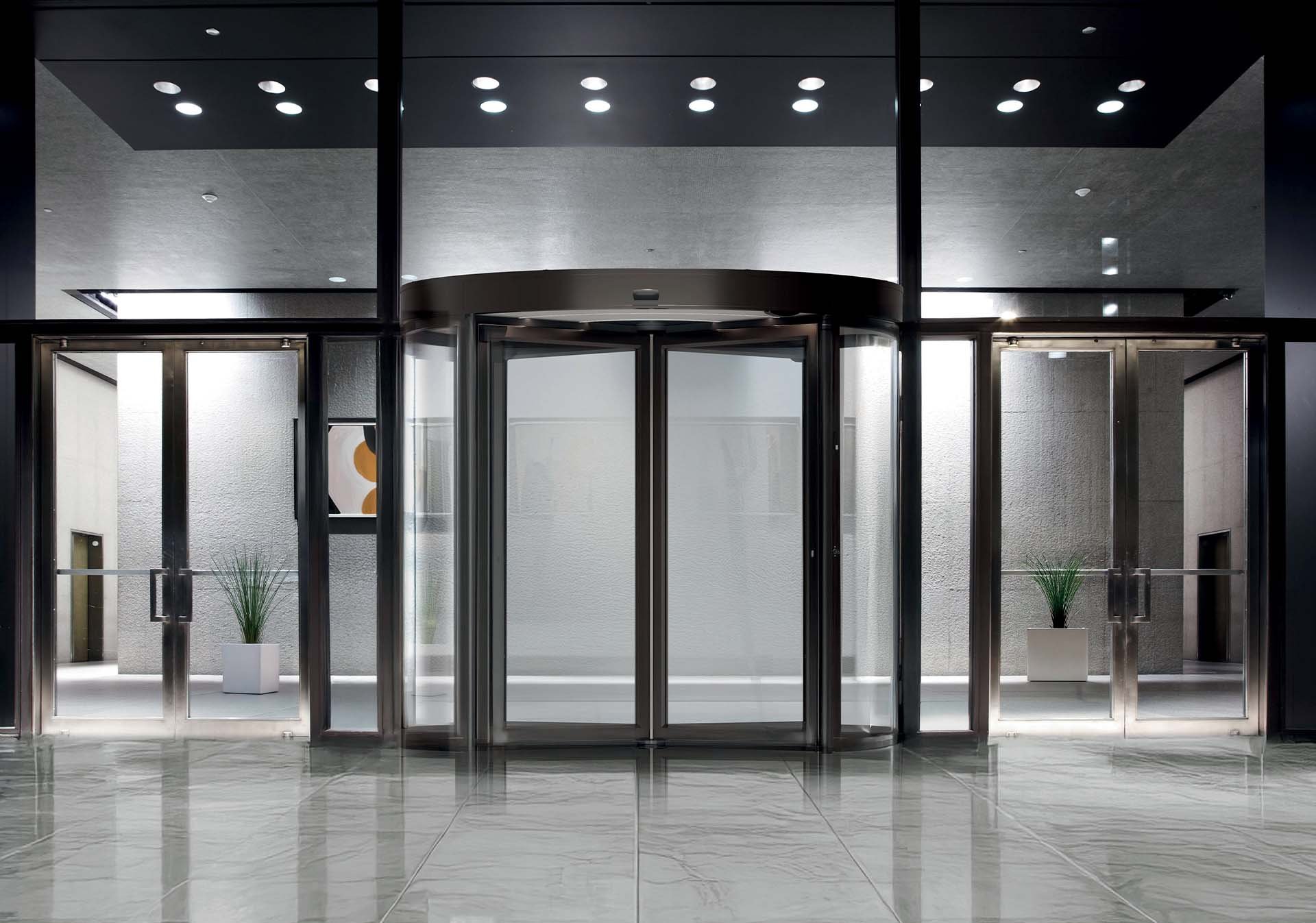

AG4000 for offices and corporate buildings: an ideal solution for modern, professional entrances.

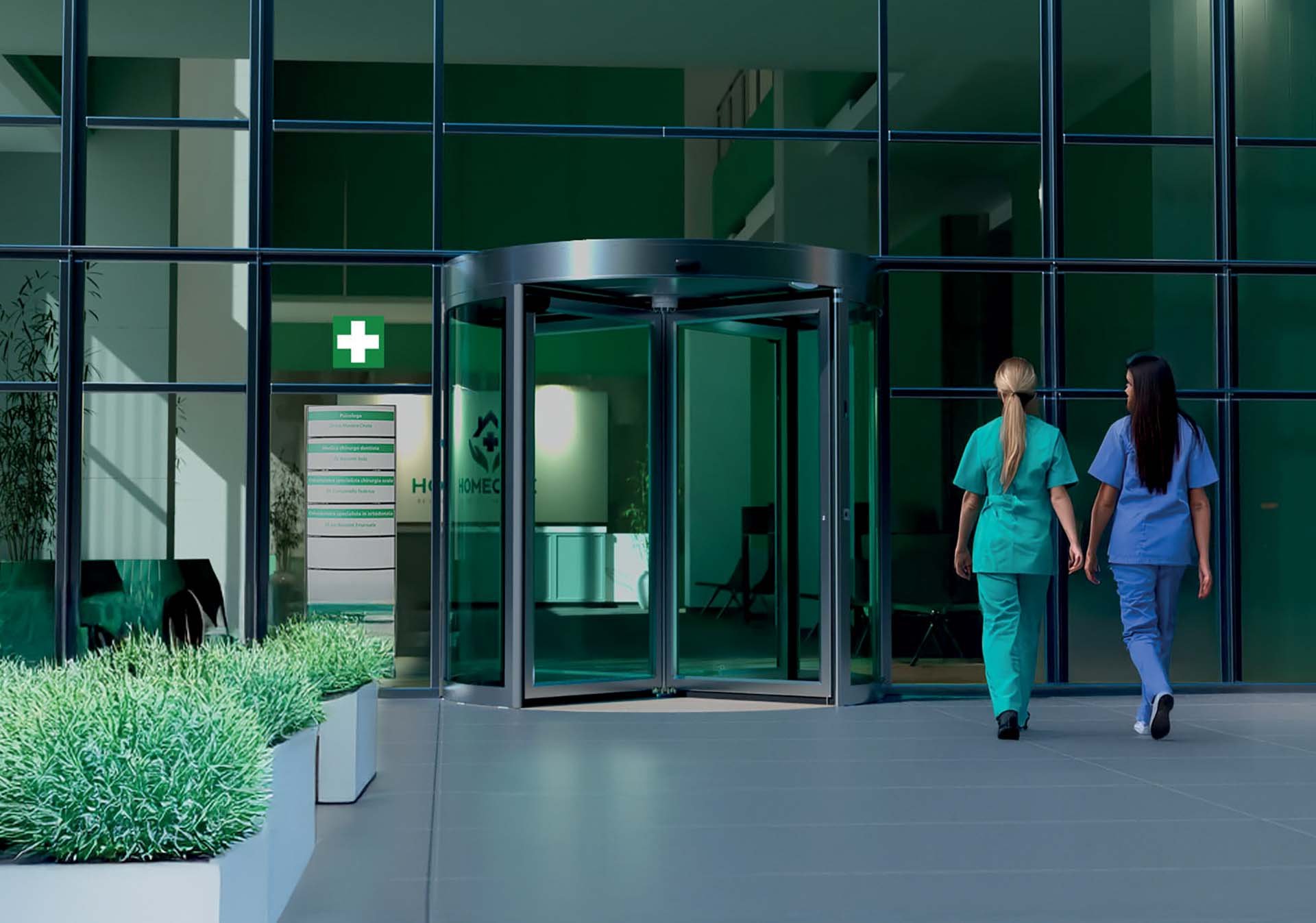

AG4000 for hospitals and healthcare facilities: ideal for managing pedestrian flows.

Focus on AG4000 Revolving Door

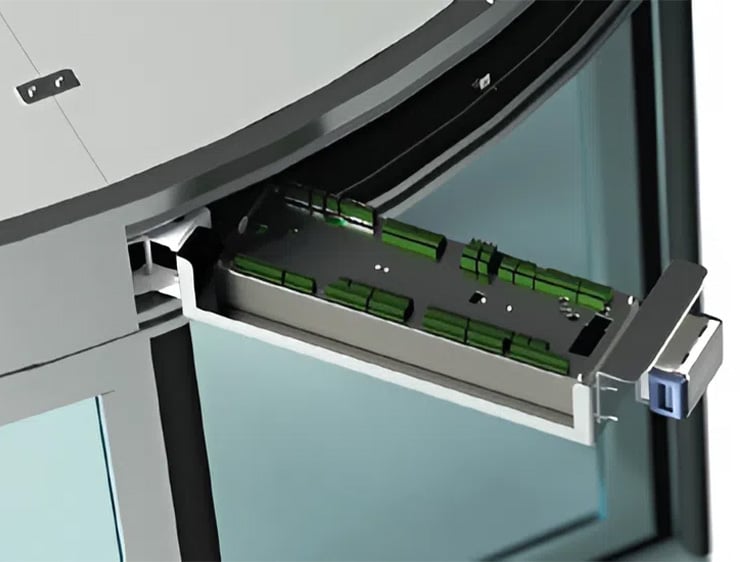

Easy maintenance

The control board and motor are easily accessible for simpler programming and maintenance.

• External control unit access
• Quick mechanical inspection

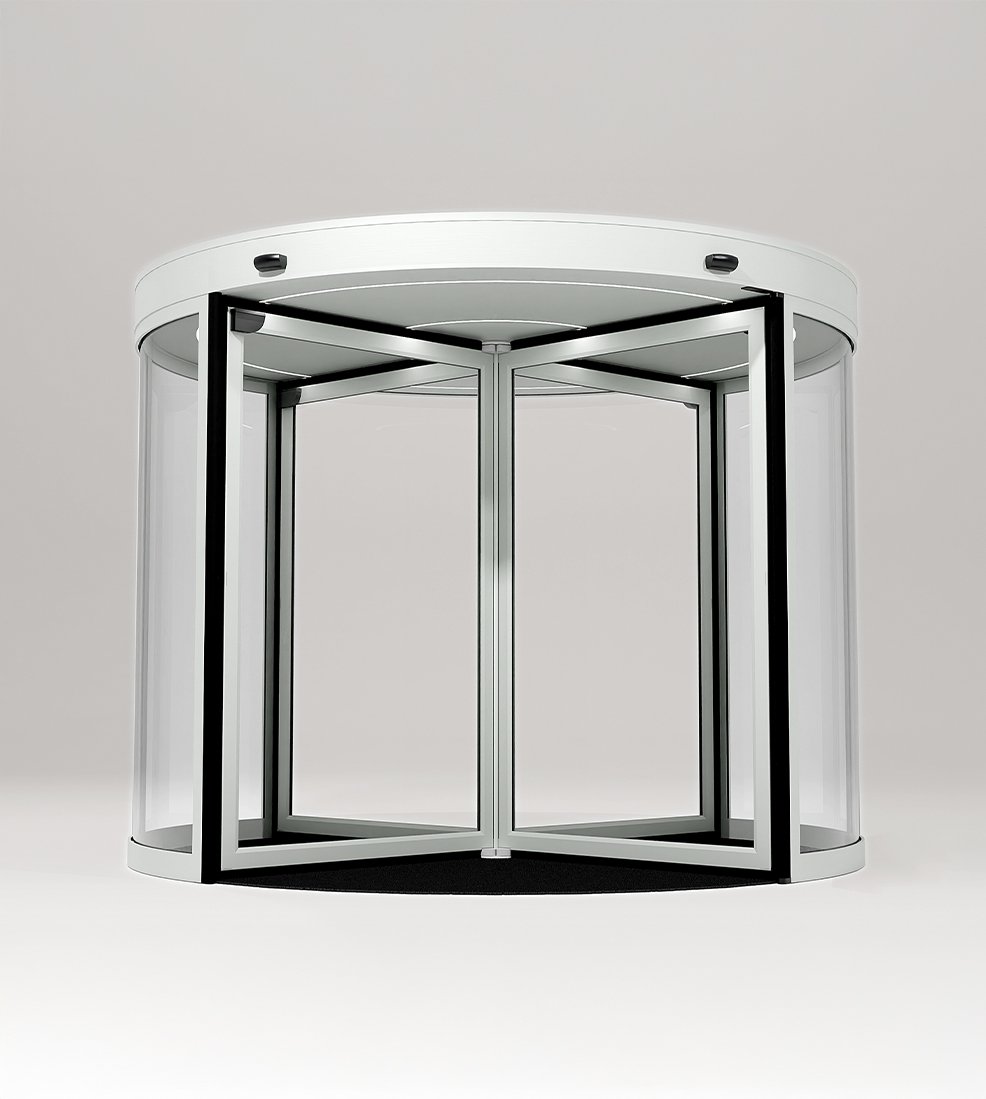

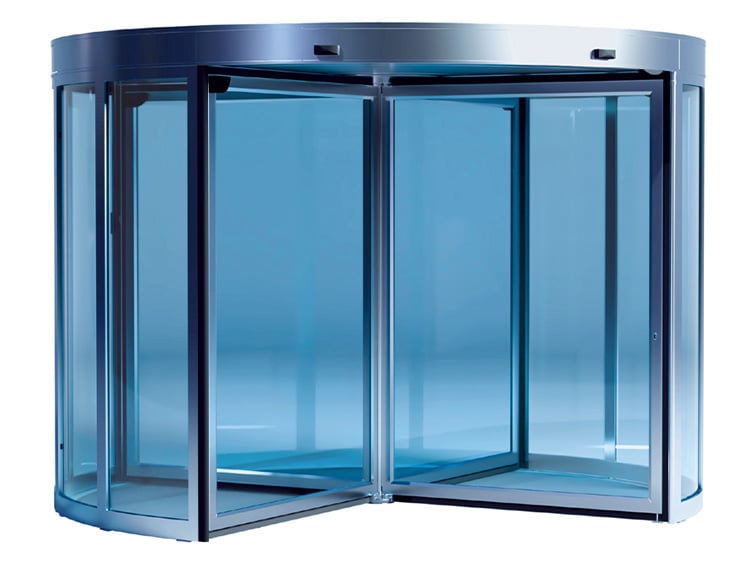

AG4000 – Compact 3- or 4-Wing Revolving Door

The compact AG4000 revolving door is available with 3 or 4 wings and offers internal diameters from 1800 to 3600 mm, with passage heights from 2100 to 3000 mm. Designed for compact entrances, it combines elegant design, certified safety, and smooth pedestrian flow while minimizing energy loss.

The AG4000 is also available with integrated Access Control, including software, sensors, people-counting, and electromagnetic locks, enabling secure and controlled access management with anti-tailgating and anti-piggybacking functions. In the Access Control version, internal diameters range from 1800 to 2400 mm.

Technical information

Product information AG4000

01

Technical description

NB: If you’re viewing this section on a phone, swipe/scroll the table horizontally or rotate your device to landscape to see all columns and get the best experience.

TECHNICAL DATA

Parameter	AG4000
Protection rating	IP20
Actuator control protection rating	IP54
Glass panels
Standard revolving leaf glass	Clear laminated safety glass 3+0.38+3mm (EN12600/2B2)
External drum walls glass panel and standard night closure	Clear laminated safety glass 4+0.76+4mm (EN12600/1B1)
Non condensing humidity	85%
Use frequency	Continuous use
Ambient operating temperature	-20 °C ÷ +55 °C
LED internal lighting
Colour temperature	4000K
Power consumption	10 W/m
Backup batteries	1800mAh NiMh 24V 1-3 minutes to reach the rest position and disengage the anti-panic system, if supplied
Weight (kg)	Please refer to the documentation supplied with the product
Maximum noise emission	L_pa≤70 dB (A)
Electrical data
Power supply voltage	100-240 V~ 50/60 Hz Mains fuse 10 A (installed in the building)
Maximum power	350 W
Power in low consumption mode	< 0.5 W (off mode)

PRODUCT FAMILY – SCOPE AND OPTIONS

			Internal Diameters
			1800	2100	2400	2700	3000	3300	3600
Door Set	3 - Wings	—	✓	✓	✓	✓	✓	✓	✓
	4 - Wings	—	✓	✓	✓	✓	✓	✓	✓
	Rigid Door Set	—	✓	✓	✓	✓	✓	✓	✓
Escape Route	EM Breakout	—	O	O	O	O	O	O	O
Dimensions	Entrance Height	2100mm	✓	✓	✓	✓	✓	✓	✓
	Entrance Height	Variable in 100mm increments to 3000	O	O	O	O	O	O	O
	Canopy Height	200mm	✓	✓	✓	✓	✓	✓	✓
	Canopy Height	Variable in 100mm increments to 1250	O	O	O	O	O	O	O
Functionality	Operating Mode	Automatic	✓	✓	✓	✓	✓	✓	✓
		Semi-automatic with Adaptive Speed Control	✓	✓	✓	✓	✓	X	X
		Power Assist with Speed & Parking Control as standard	✓	✓	✓	✓	✓	X	X
		Access Control, single or bi-directional*	✓	✓	✓	X	X	X	X
