Swing gate automation

412 230V Electromechanical Operator

Non reversing operator, does not require electric lock
Easy installation and maintenance
Lever release device on the rear side of the operator.

Max single leaf width 1.8 m
Use frequency 18 cycles/hour

Technical description Download

Innovation symbols 2

Gallery / Video

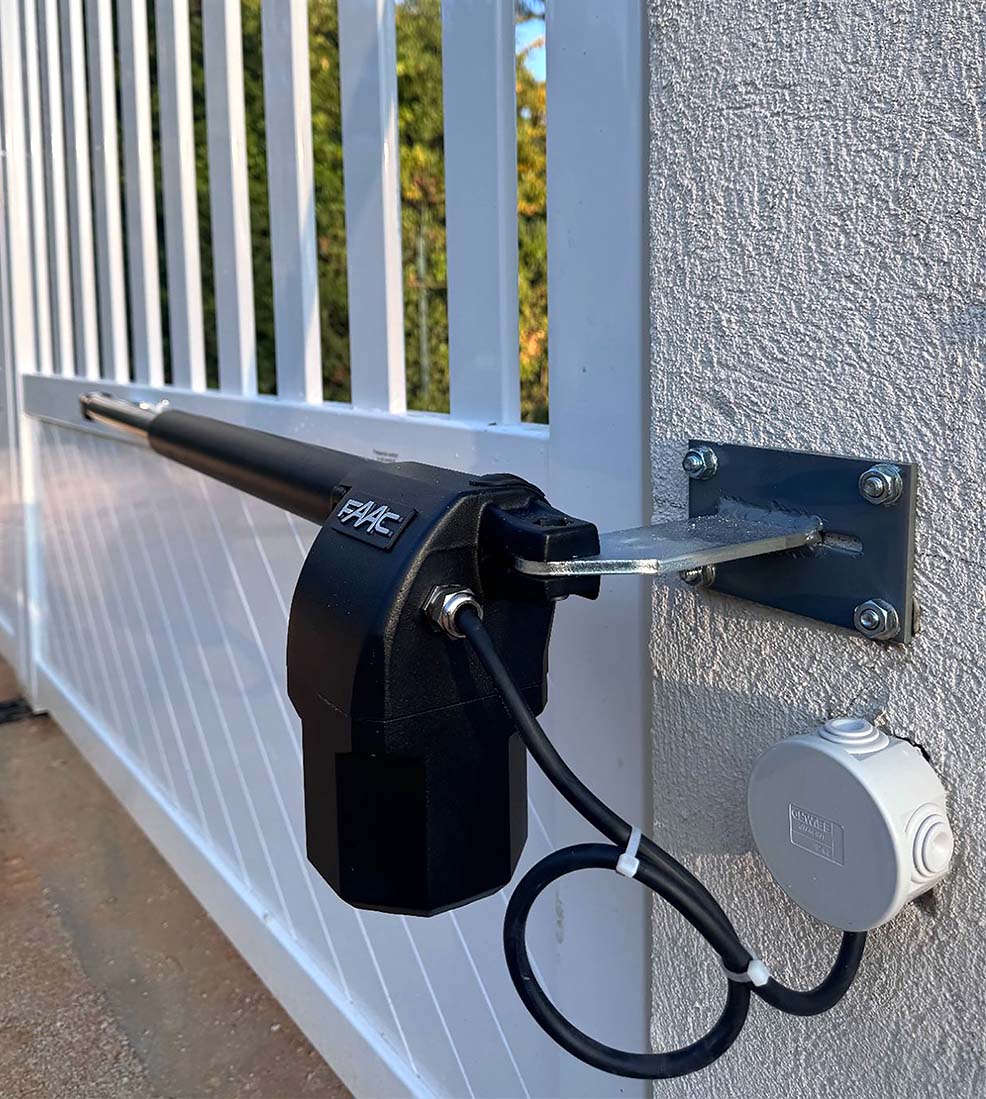

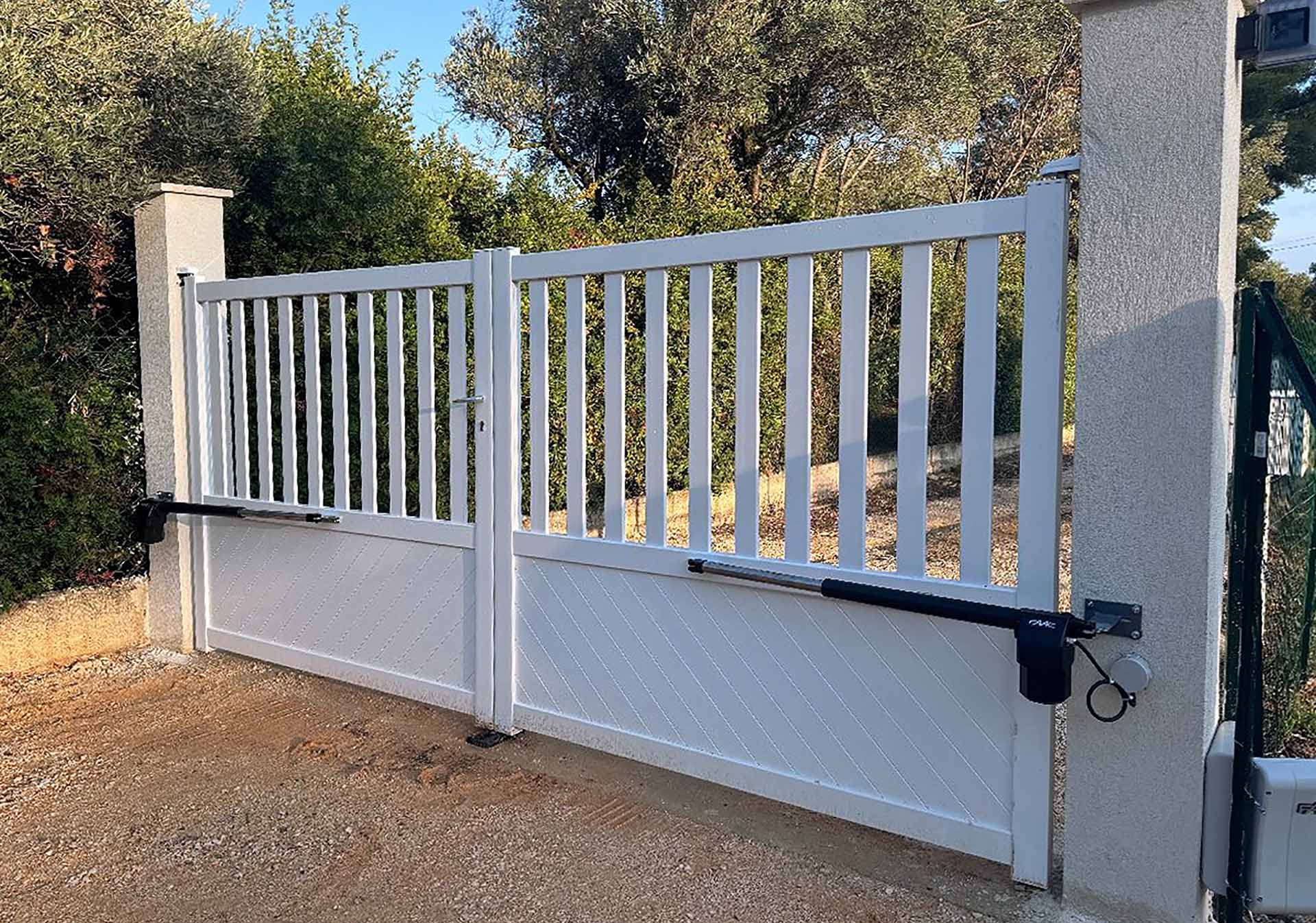

Example installation: FAAC 412

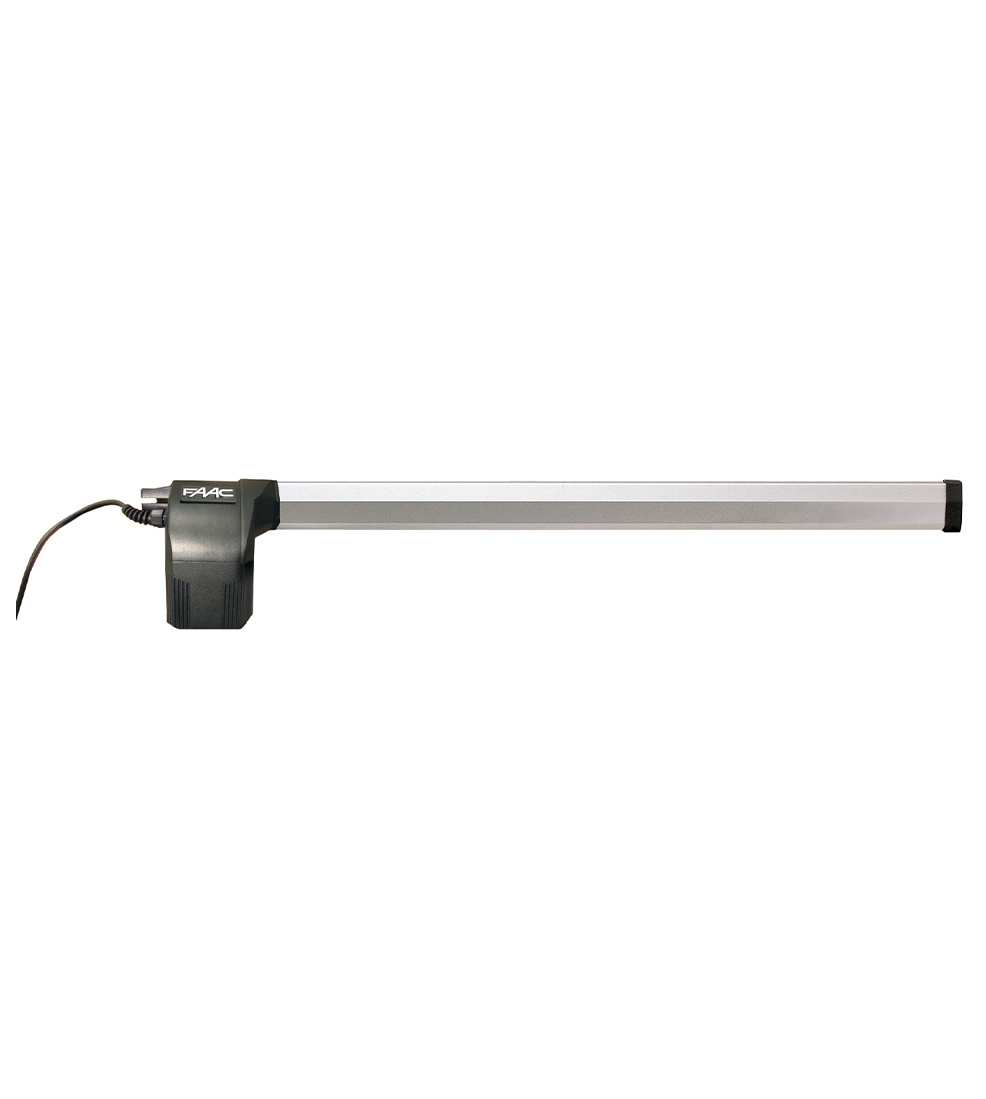

FAAC 412 Swing Gate Electromechanical Operator

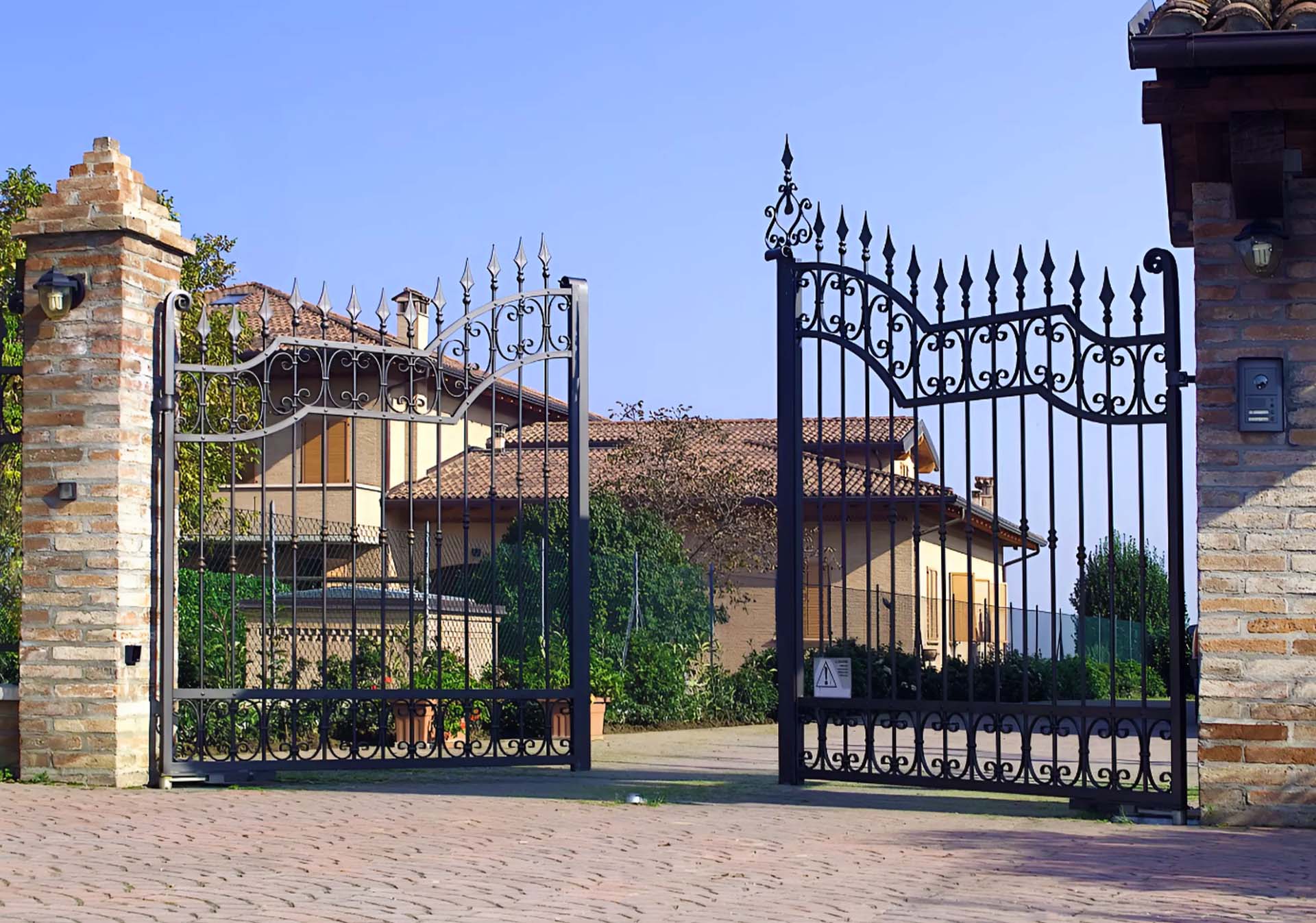

Example installation: FAAC 412

Focus on 412 Swing Gate Operator

Maximum safety

The FAAC 412 is equipped with an electronic anti-crushing device. The electronic clutch provides continuous force monitoring and is active during both opening and closing.

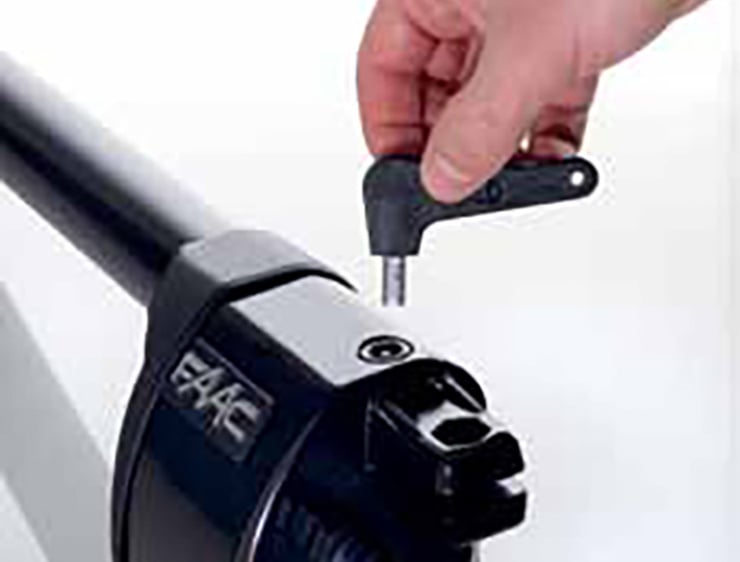

Release system

In the event of a power outage, the release key allows the gate to be operated manually.

Technical infos

Product infos 412

Technical description

Power supply voltage 220-240V~ 50/60 Hz
Electric motor Asynchronous single-phase
Max power 280 W
Max leaf opening angle 110°
Use frequency 18 cycles/hour
Max leaf width 1.8 m

Model	Item code
412 RH	104470
412 LH	104471

Download

Catalogue

File com/read/000681578784bfd314d2b

Manuals

File help/products/412-rh-lh/

Other files:

FAAC 412 Brochure

FAAC 412 Datasheet

FAAC Swing Gate Operators
