    Automatic sliding doors

    TK50 THERM Thermally Broken Sliding Entrance

    TK50 THERM is an automatic entrance solution designed to improve entrance efficiency, preserve indoor comfort and integrate seamlessly into diverse architectural contexts.

    From retail and hospitality to office buildings, airports and public spaces, TK50 THERM adapts to a wide range of architectural requirements while delivering the same combination of energy efficiency, indoor comfort and design quality.

    Compatible with all FAAC automatic door systems.

    • Energy efficiency: Engineered to reduce heat loss through a fully thermally broken system and designed profiles that maximise thermal insulation. Thermal transmittance values reach up to Ud 1 W/m²K.

    • Architectural design: Slim, clean and contemporary. A 50mm profile and slim stile option of just 35mm wide combine thermal performance with a refined aesthetic.

    • Indoor comfort: Helps maintain a more stable indoor climate, even where indoor and outdoor temperatures differ significantly.

    • FAAC reliability: Built on decades of expertise in automatic entrance systems, delivering long-term reliability even in demanding environments, thanks to solutions designed to withstand exposure, intensive use and the test of time.

    Innovation symbols 1

    Focus on TK50 THERM

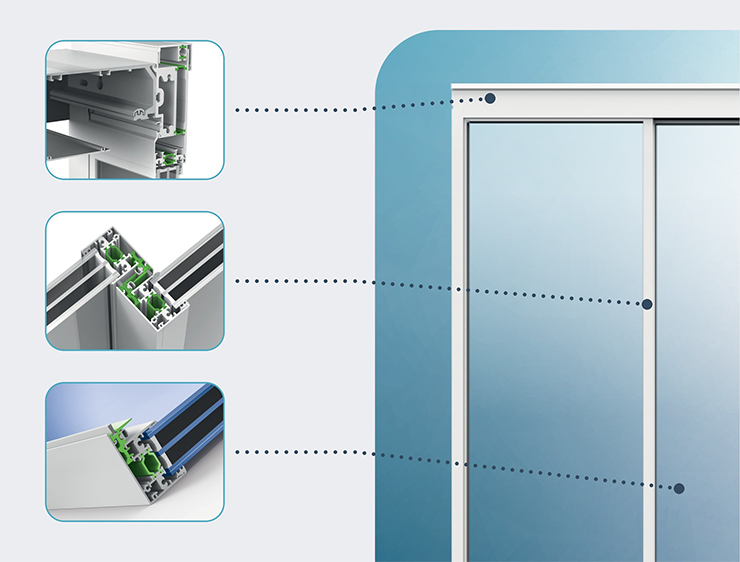

    Fully thermally broken system

    Engineered to maximise thermal insulation, with a thermally broken header, a thermally broken labyrinth and thermally broken profiles with dedicated sealing gaskets.

    Glazing thickness options of 28mm and 40mm suit both double and triple glazed units.

    Tested protection, whatever the weather

    Tested and classified according to EN 16361 standards, TK50 THERM delivers reliable performance in demanding environmental conditions.

    •  Air permeability PPD2(600): the highest class defined by EN 16361, tested at a pressure of 600 Pa.

    •  Water tightness E300: up to 300 Pa, exceeding the requirements of Class 5 according to EN 12208.

    •  Wind load resistance: highest rigidity class (Class C) up to 400 Pa, according to EN 12210.

    •  Sound reduction index: 26 dB.
